Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Exhaust Temperature Sensor >> Locations >> Sensor-Temperature-Catalytic Converter-Upstream

Sensor-Temperature-Catalytic Converter-Upstream

C0103:

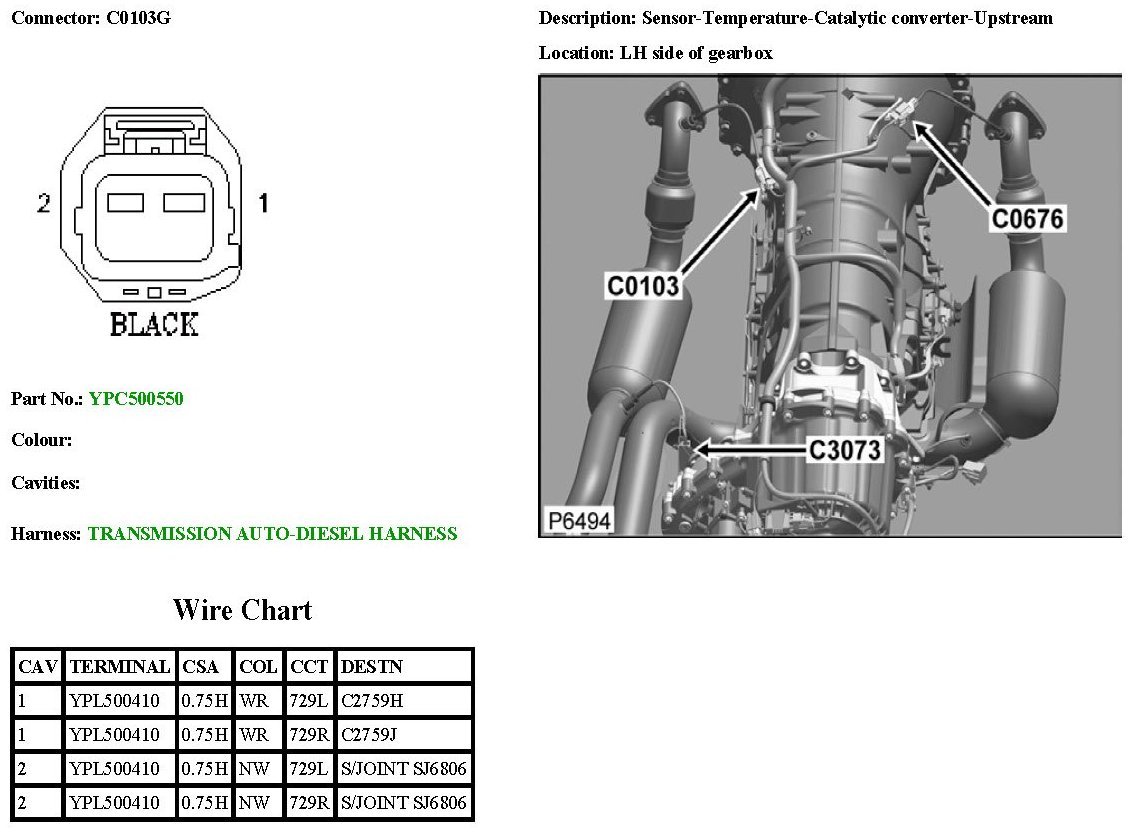

C0103G:

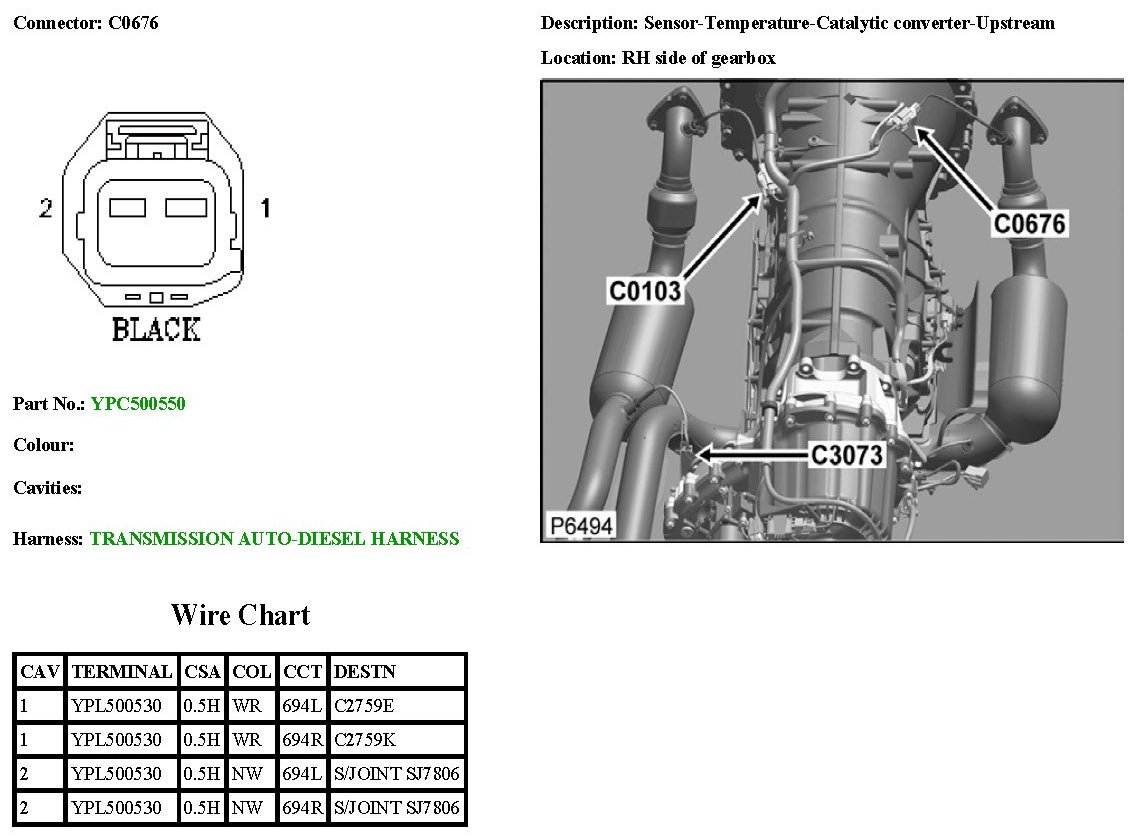

C0676:
