Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Exhaust Temperature Sensor >> Locations >> Sensor-Temperature-Catalytic Converter-Downstream

Sensor-Temperature-Catalytic Converter-Downstream

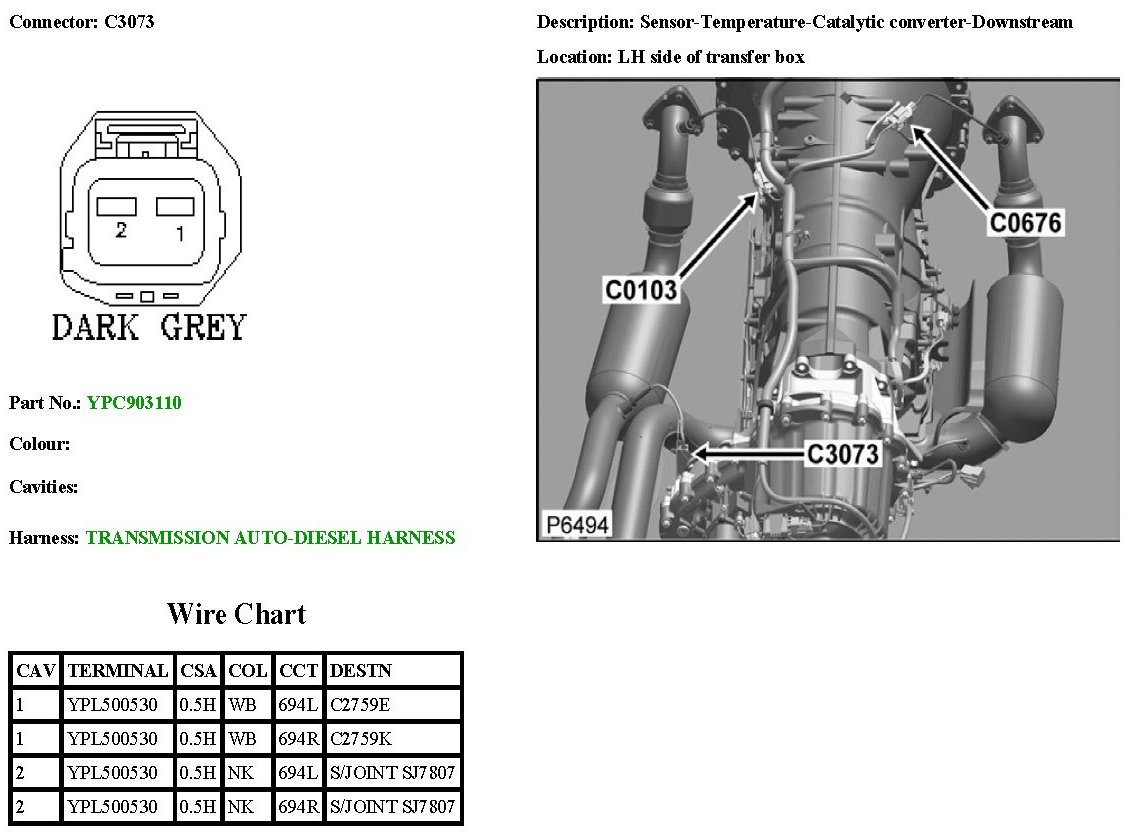

C3073:

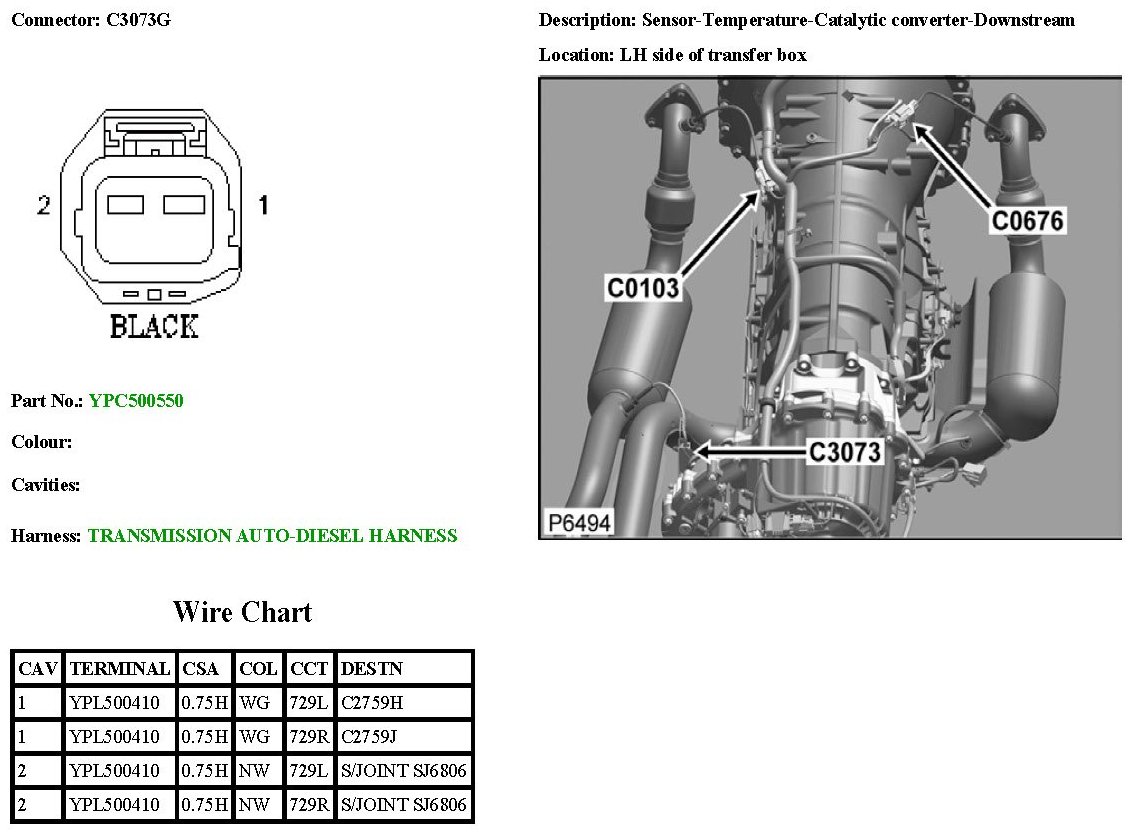

C3073G:

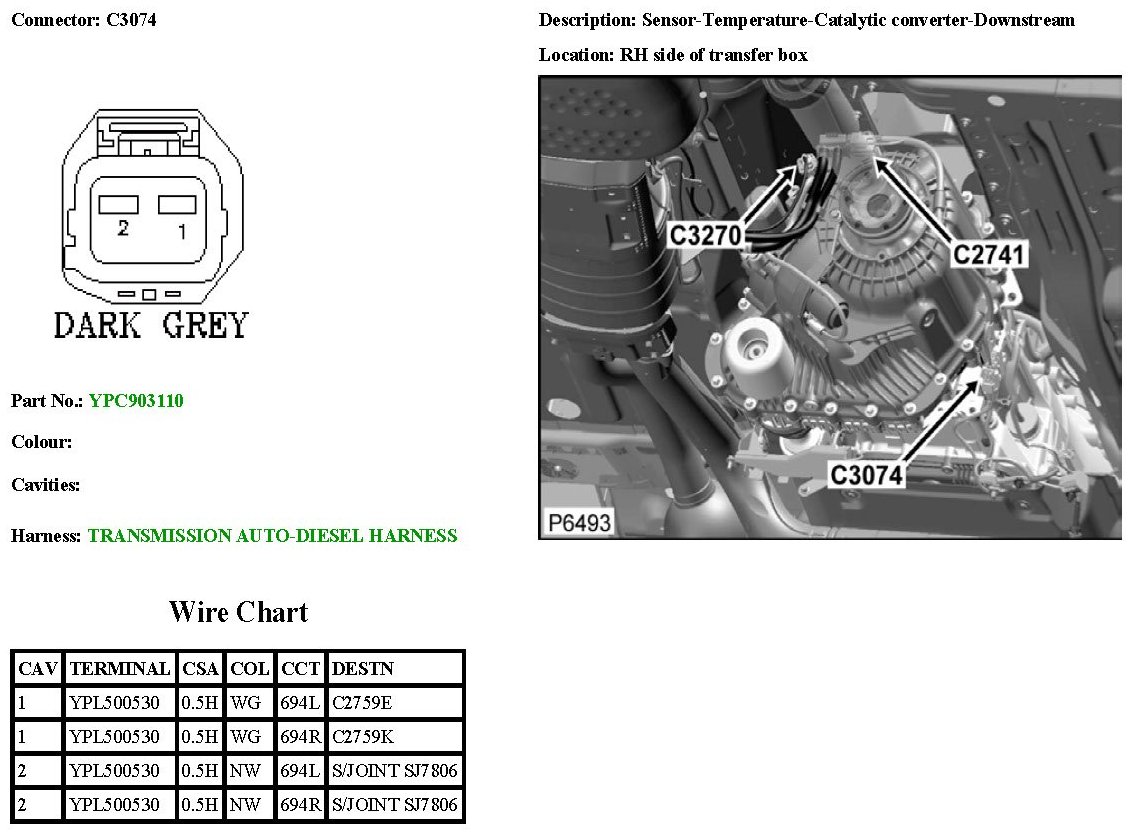

C3074:
