Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams >> Sensor-Mass Air-Flow (MAF)

Sensor-Mass Air-Flow (MAF)

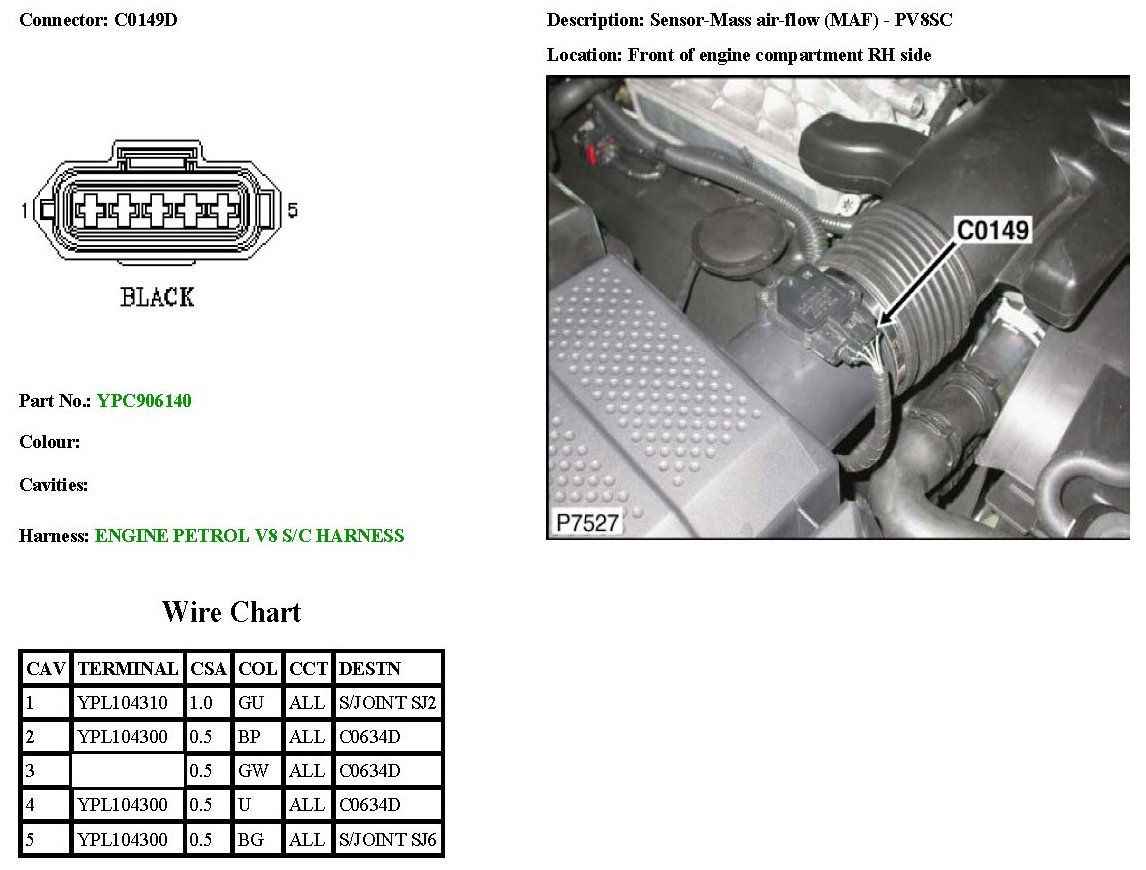

C0149D:
