Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Occupant Sensor >> Sensor-Pressure-Mat

Sensor-Pressure-Mat

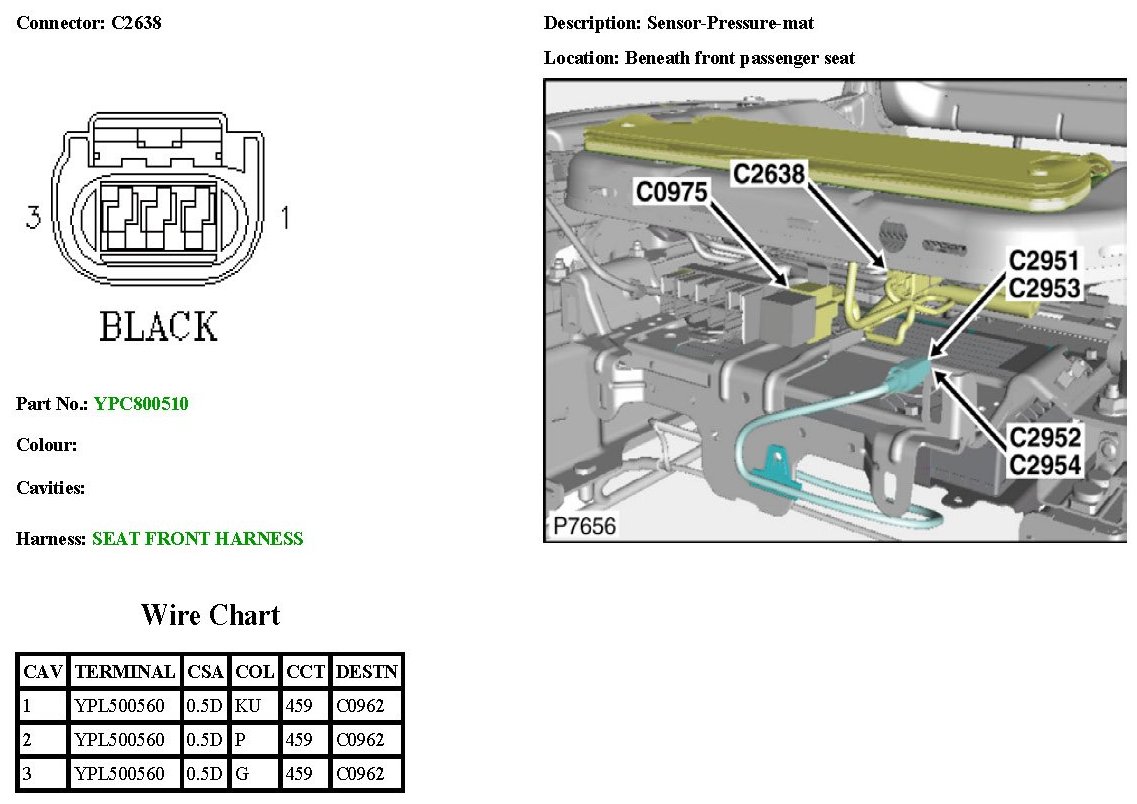

C2638:

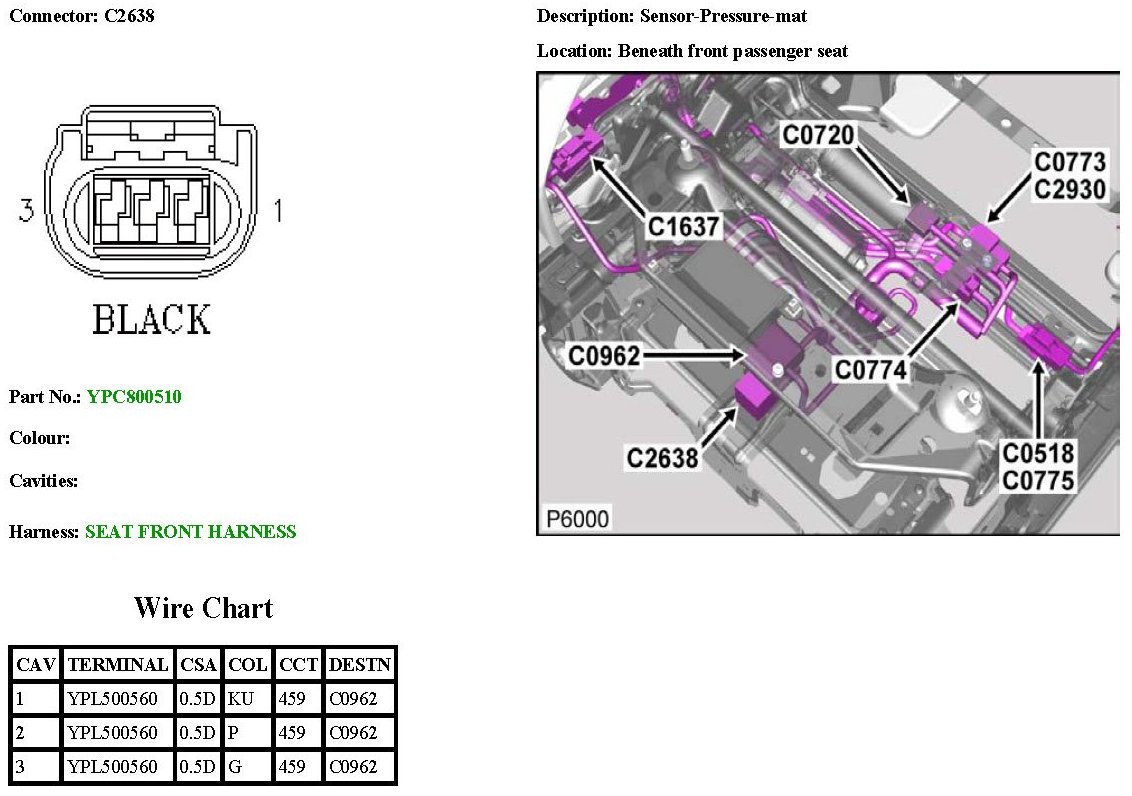

C2638:

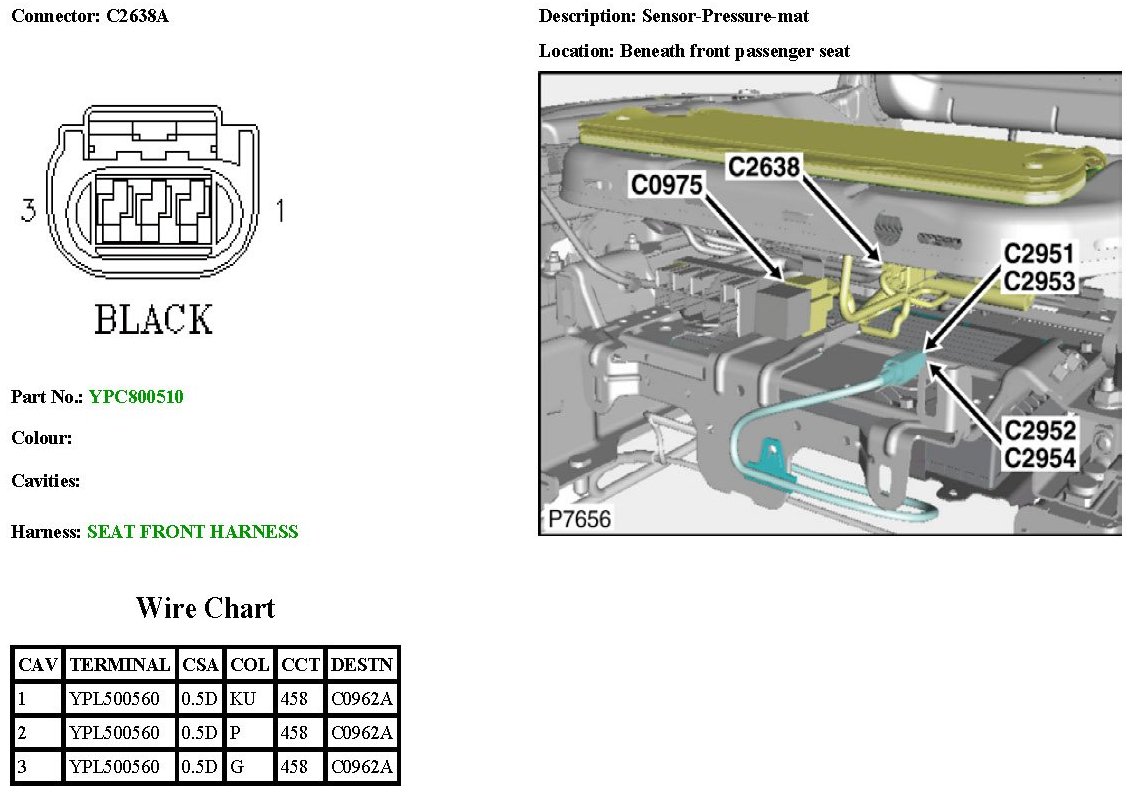

C2638A:
