Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Switch-Window-Rear-RH

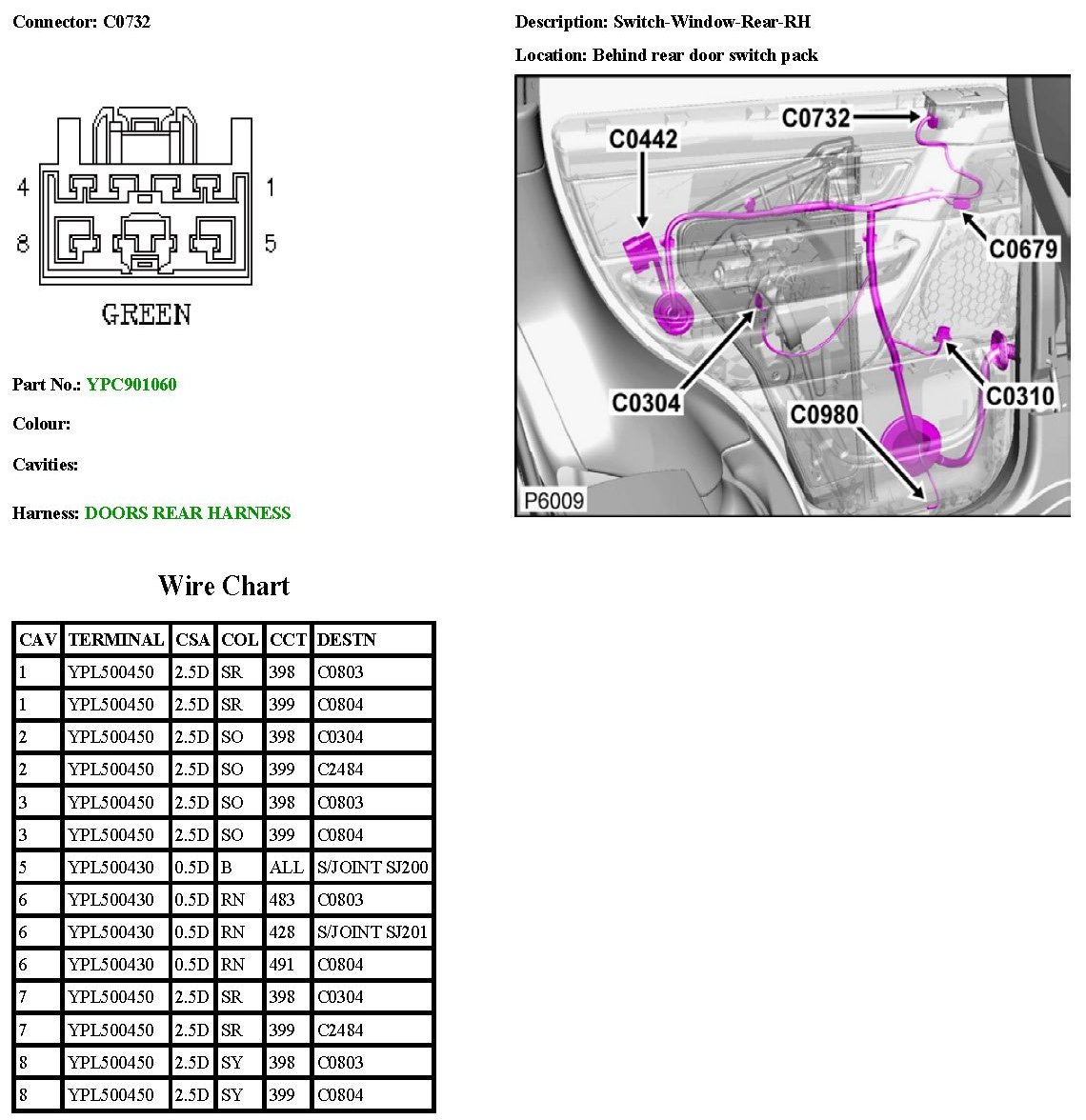

Switch-Window-Rear-RH

C0732:
