Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Switch-Window-Driver Door

Switch-Window-Driver Door

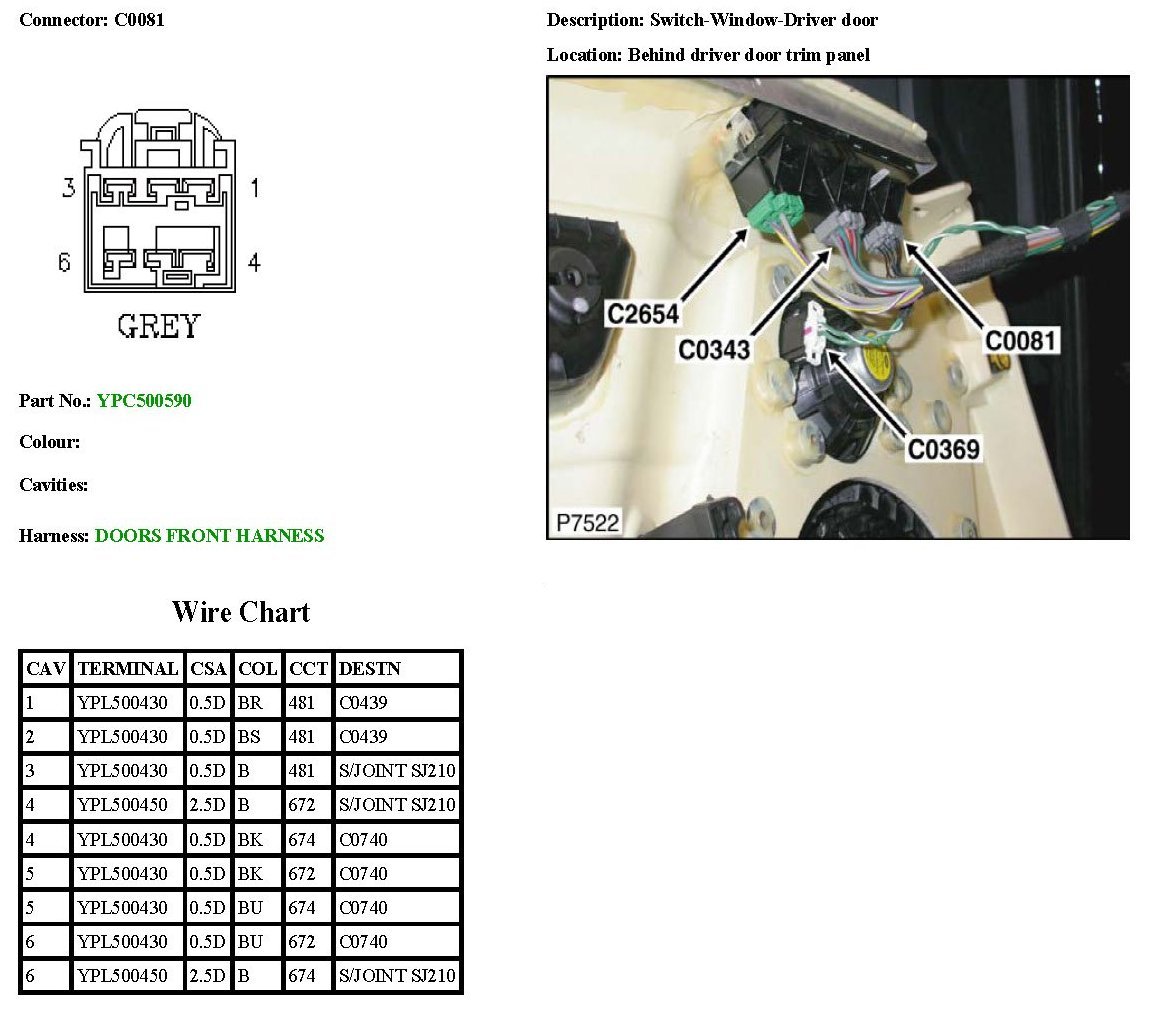

C0081:

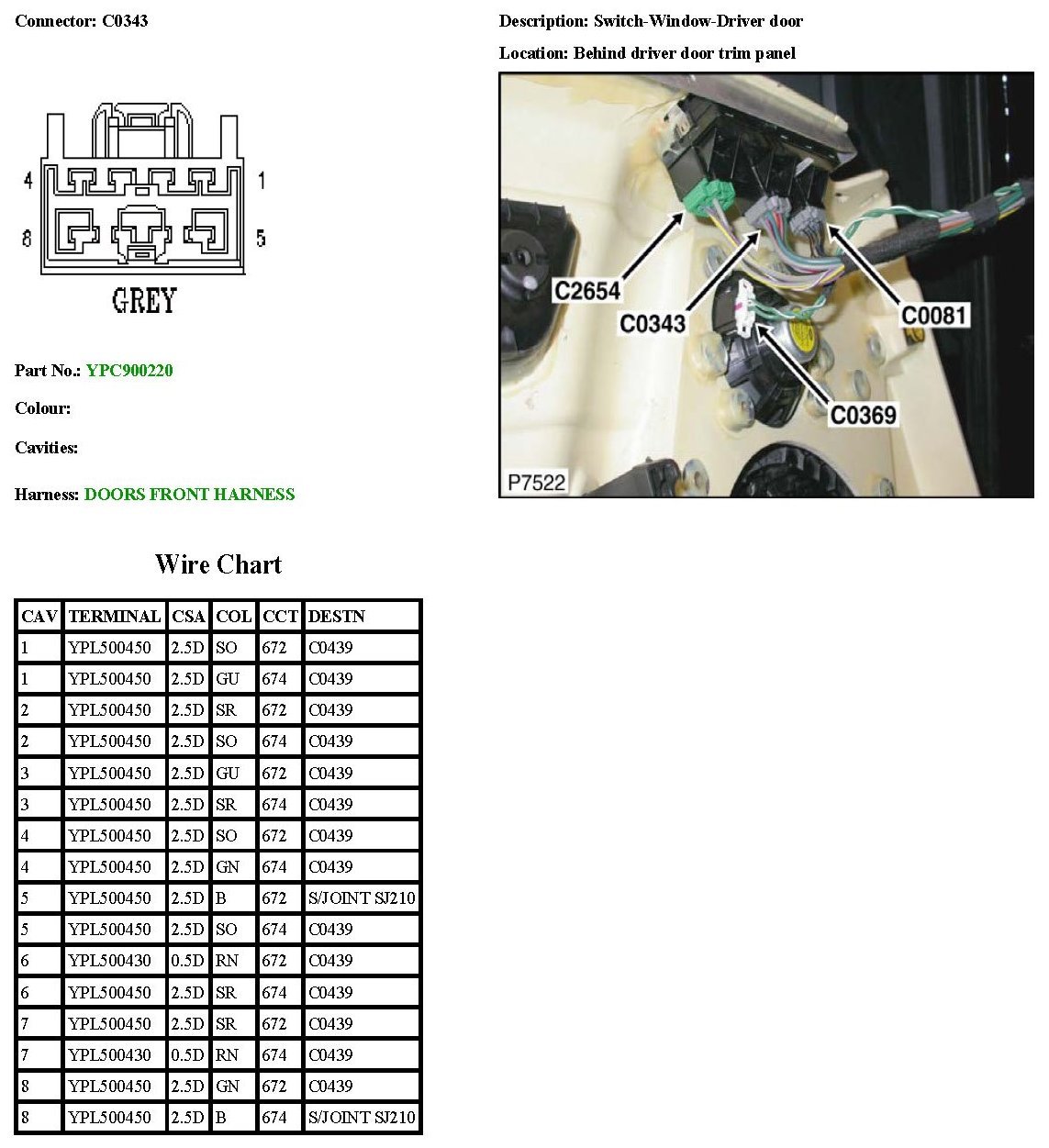

C0343:

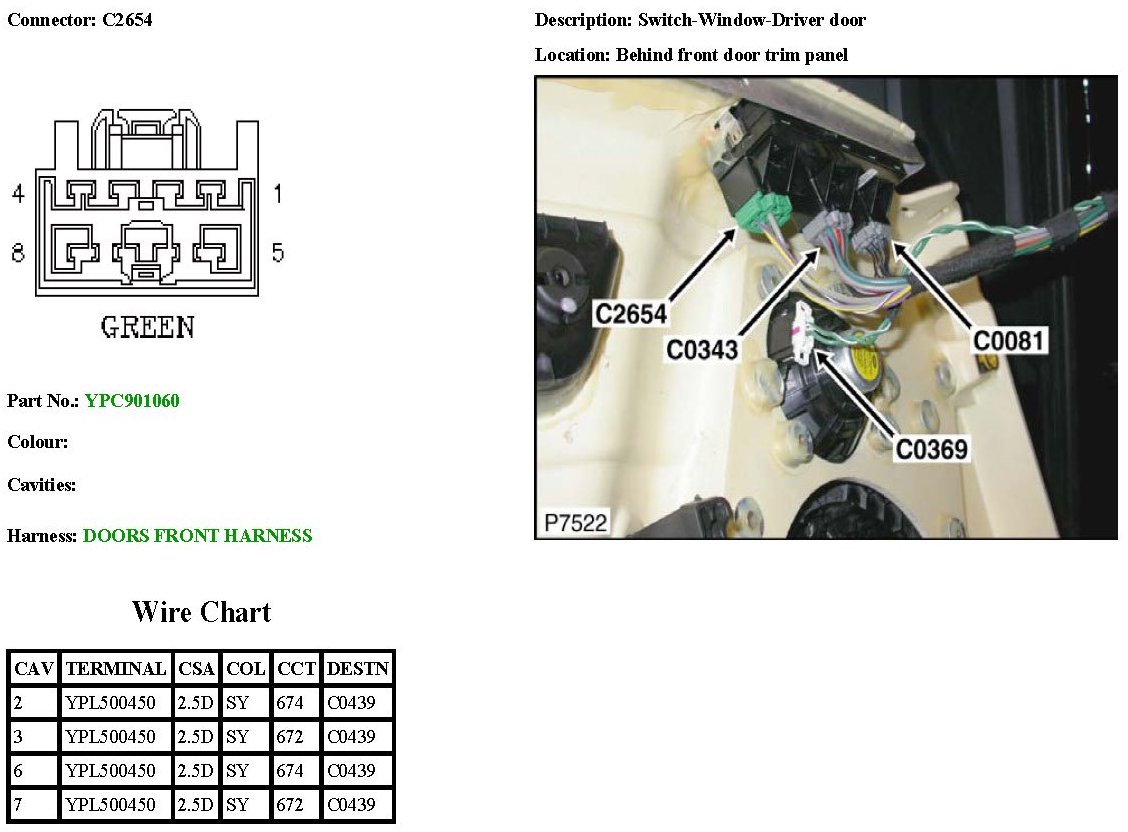

C2654:
