Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Systems
>>
Memory Positioning Module
Memory Positioning Module

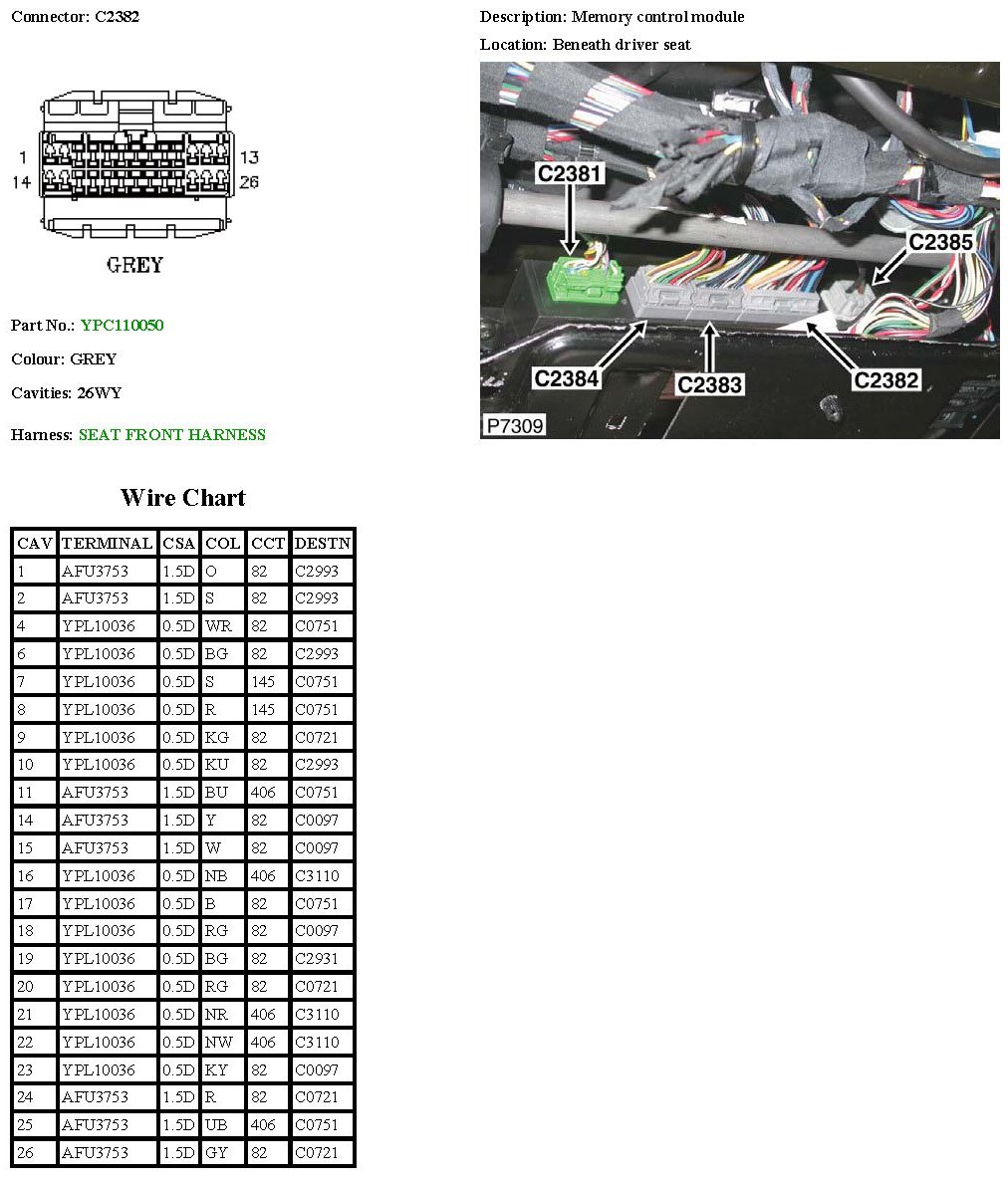

C2382:

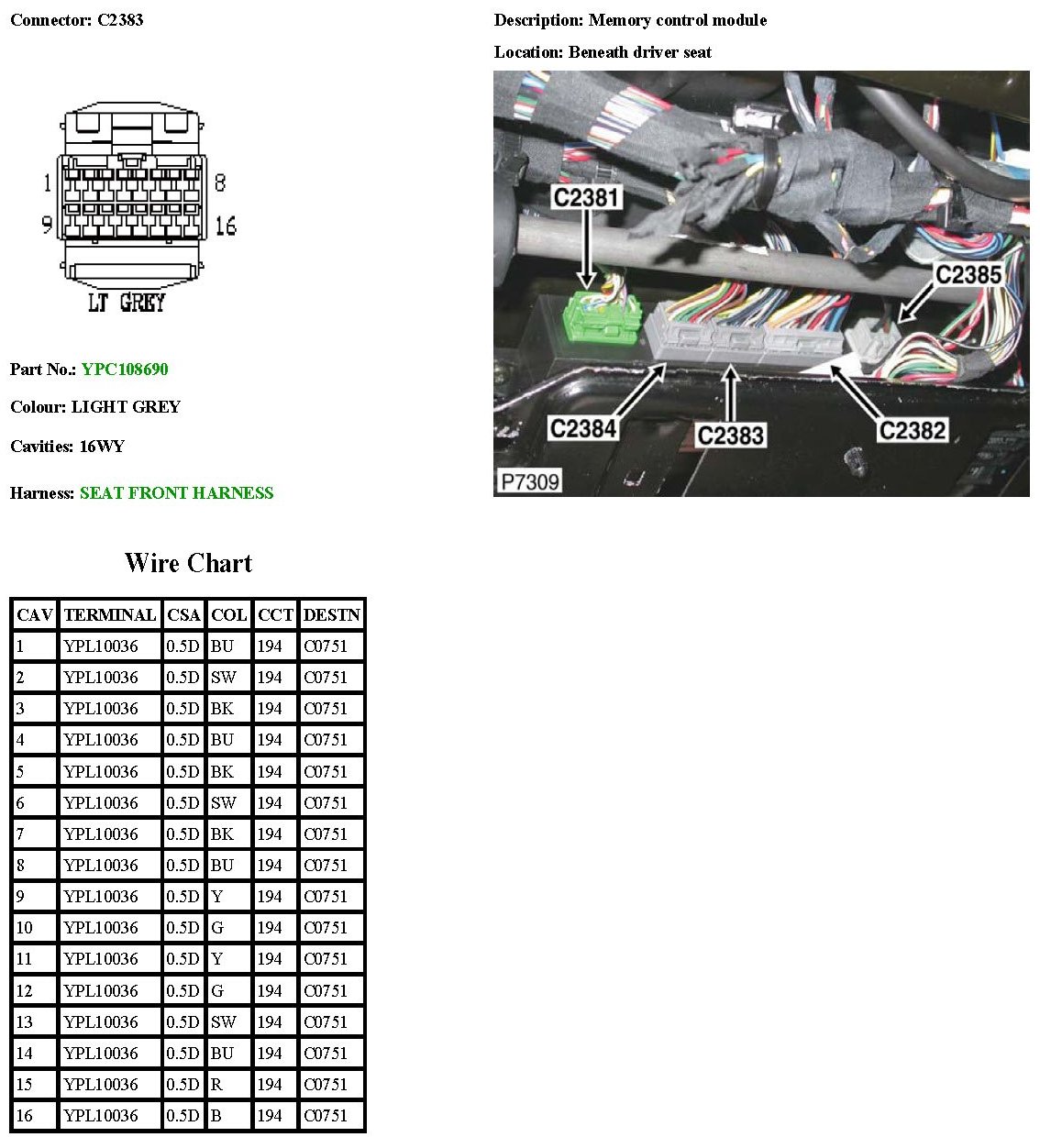

C2383:

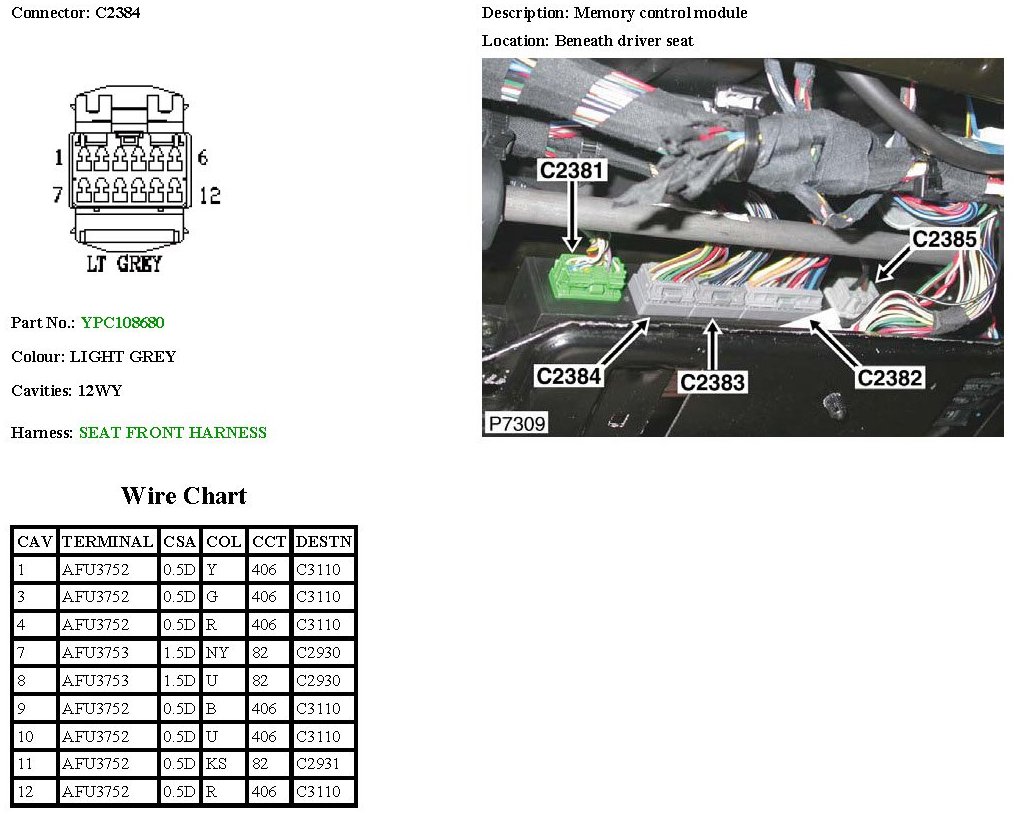

C2384:

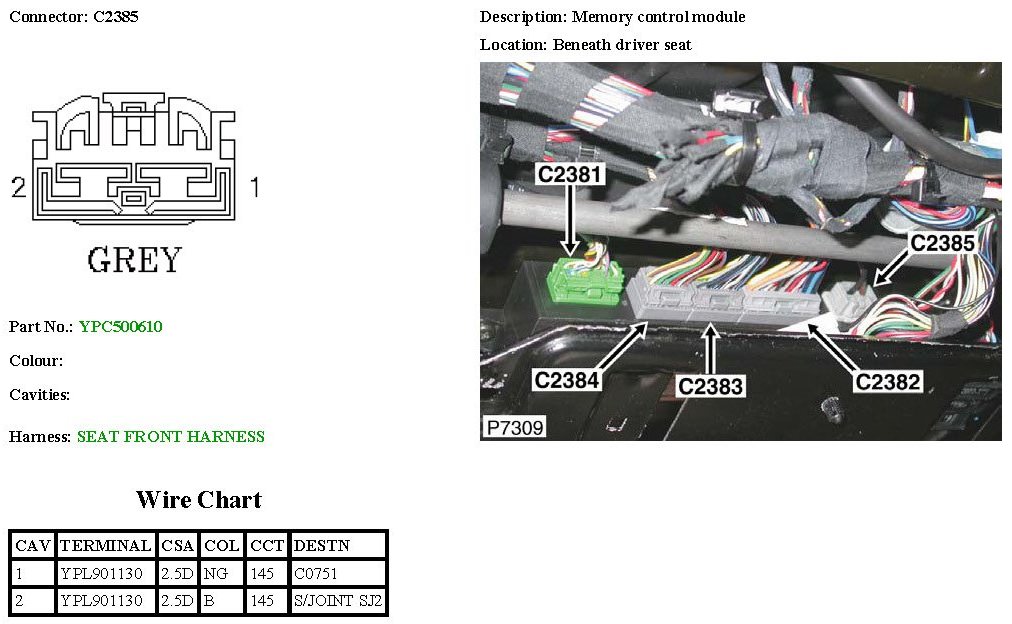

C2385:
