Land Rover
>>
2007
>>
Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
Entertainment System Control Module
>>
Module-DVD
Module-DVD

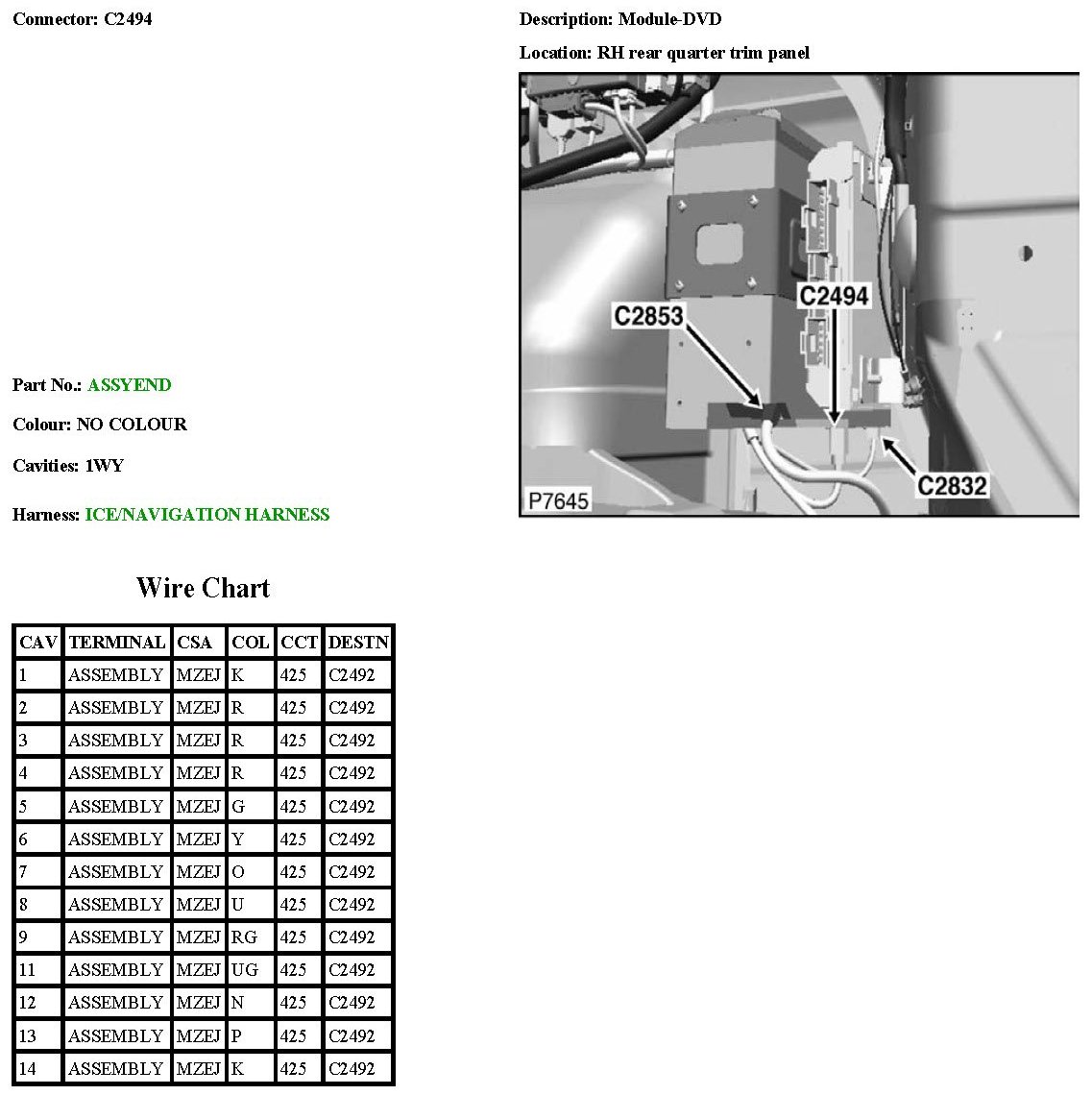

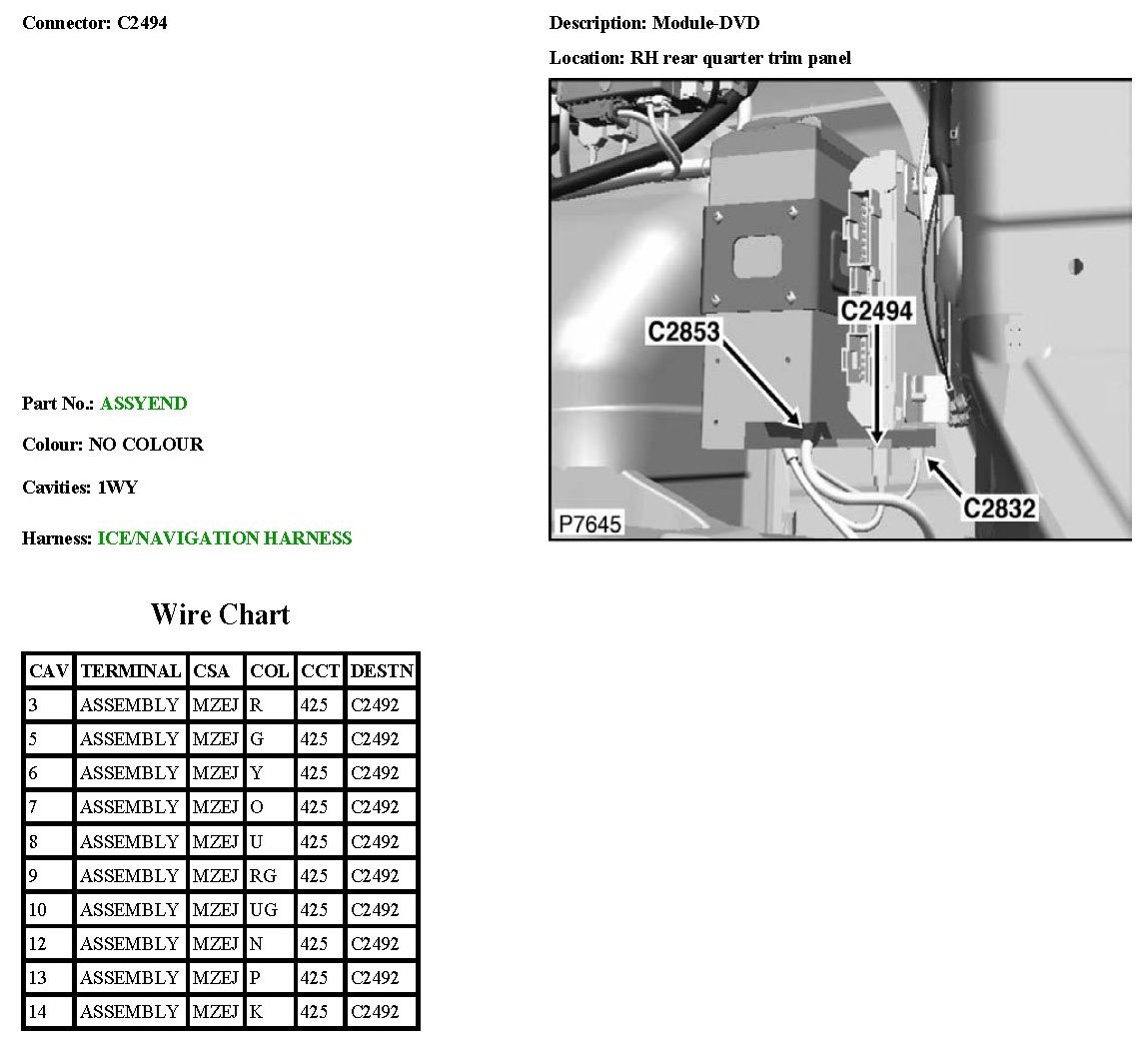

C2494:
C2494:

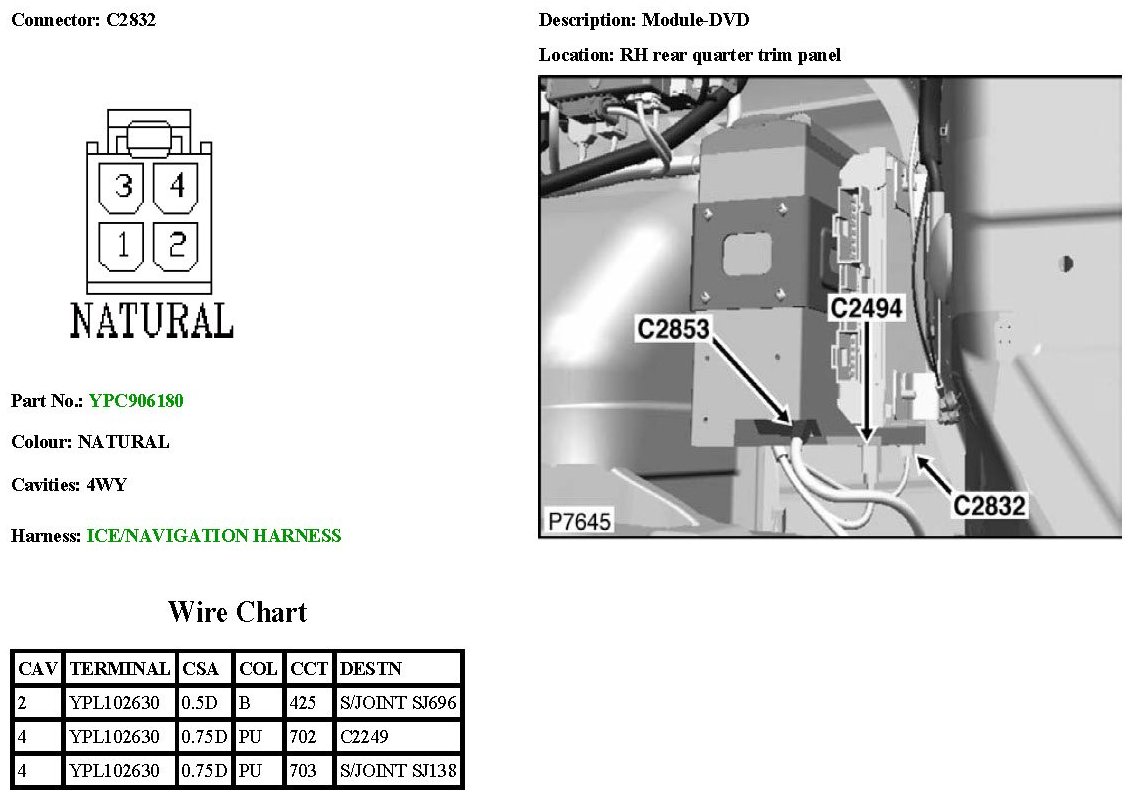

C2832:
C2832:

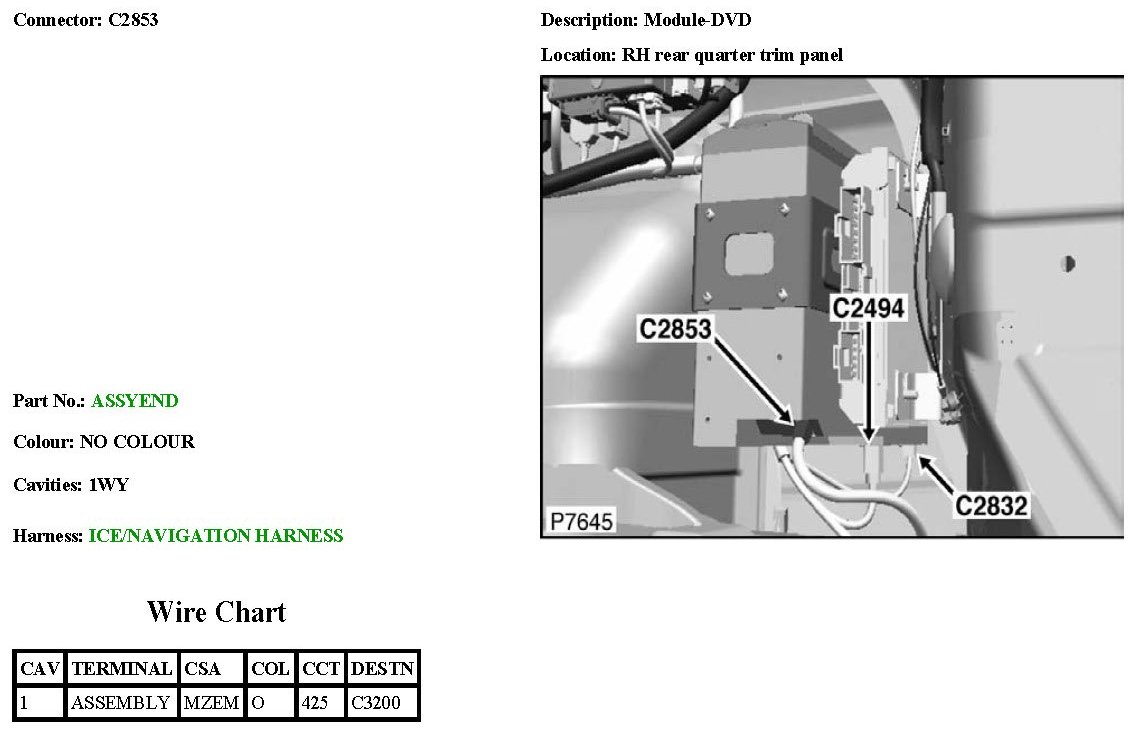

C2853:
C2853:
