Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

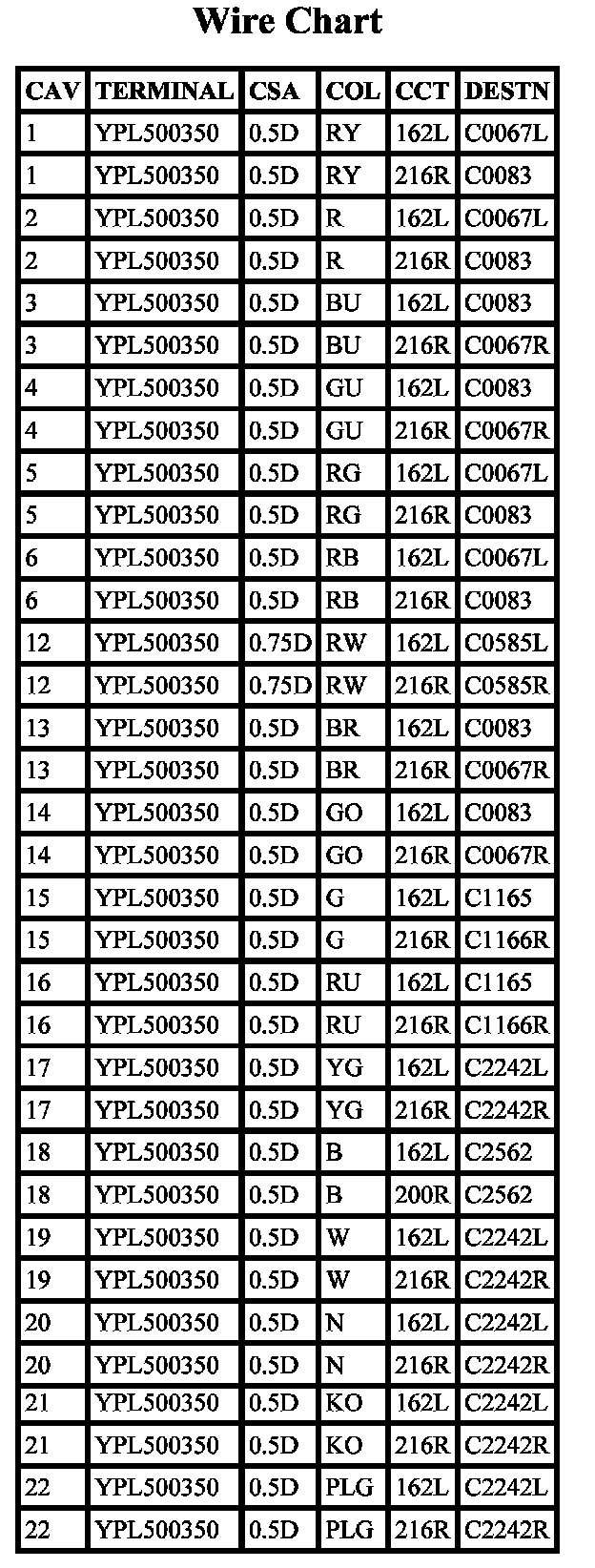

C0256 (Part 1):



C0256 (Part 2):

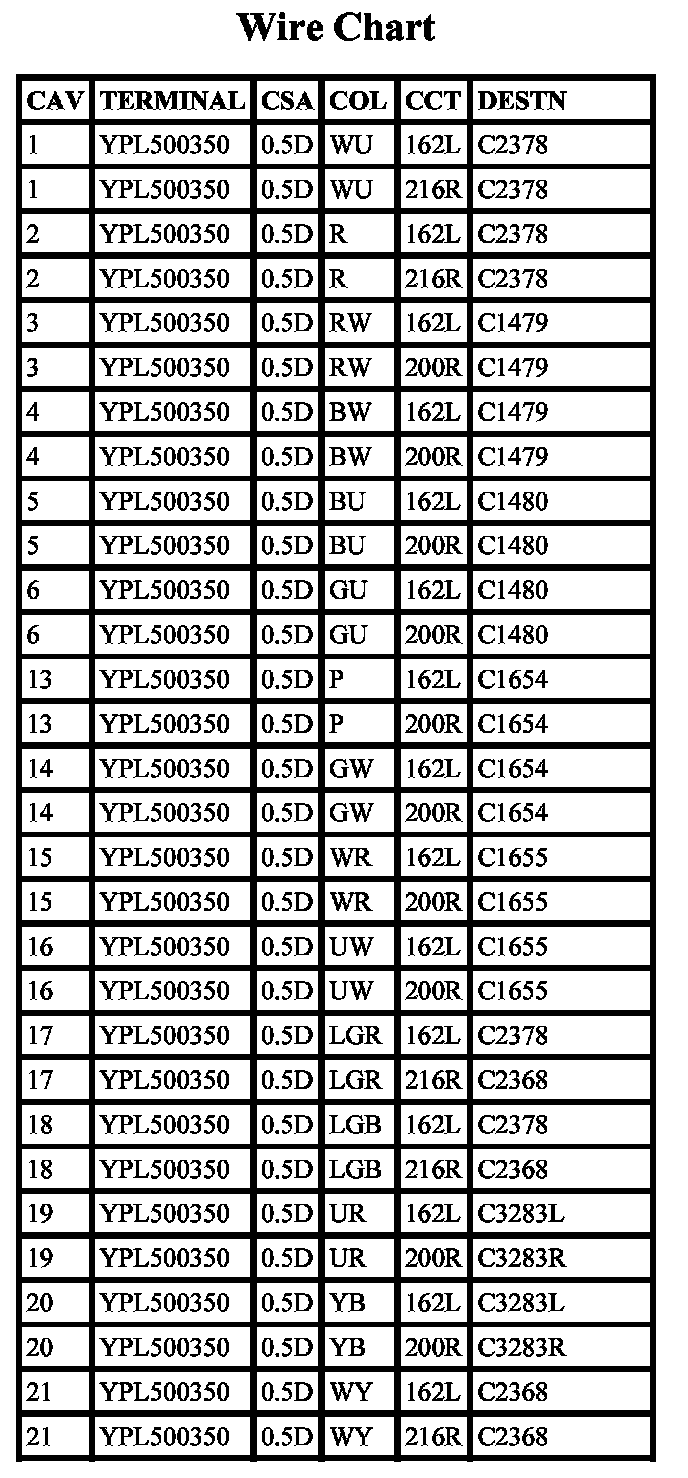

C0256 (Part 3):

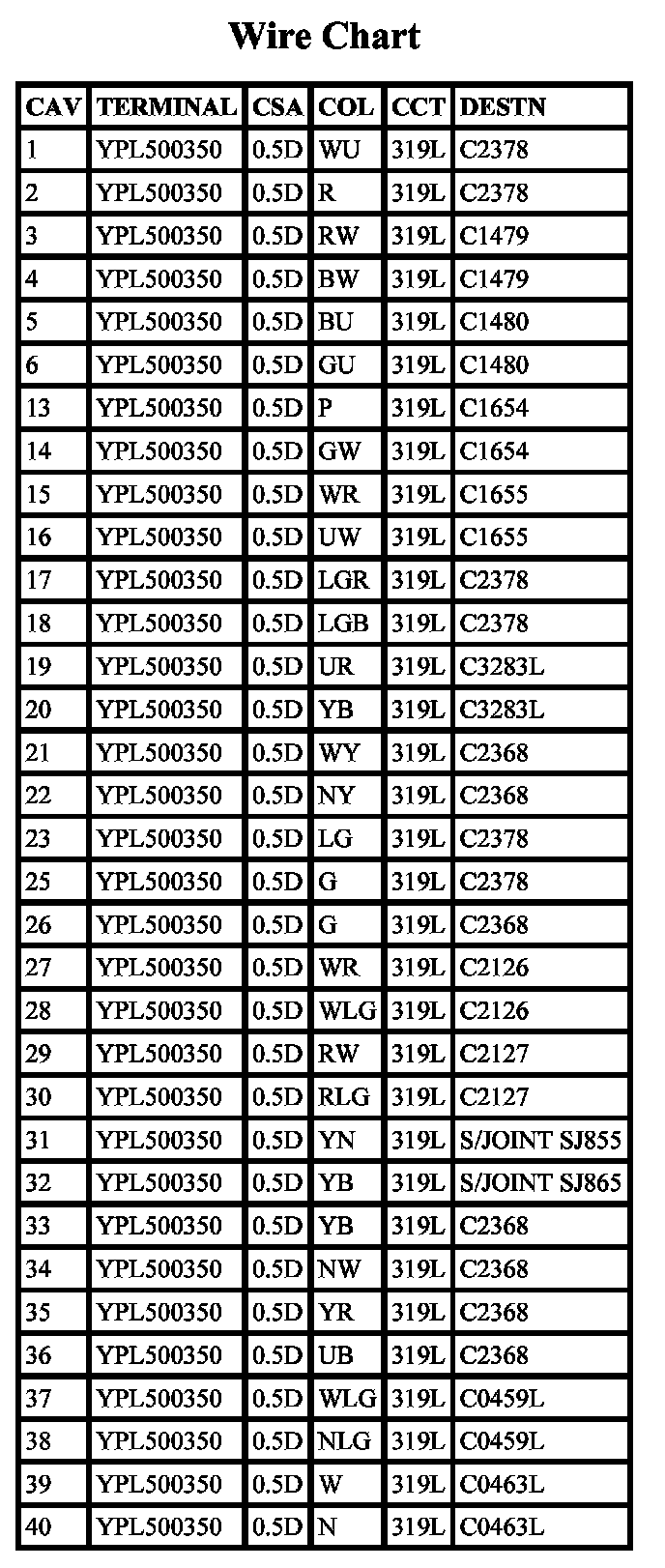

C1649 (Part 1):



C1649 (Part 2):



C3223L (Part 1):



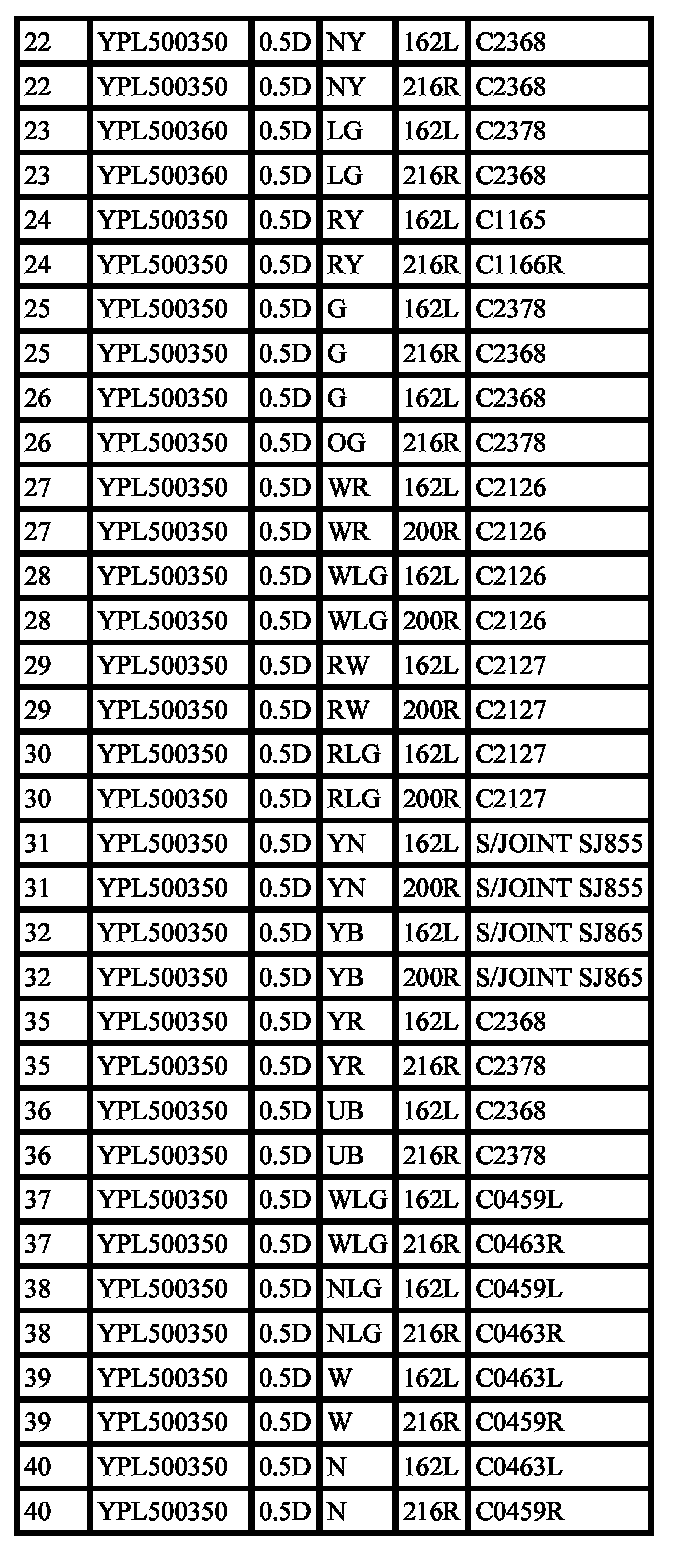

C3223L (Part 2):



C3224L:
