Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Safety Switch >> Sensor-Anti-Trap-Passenger

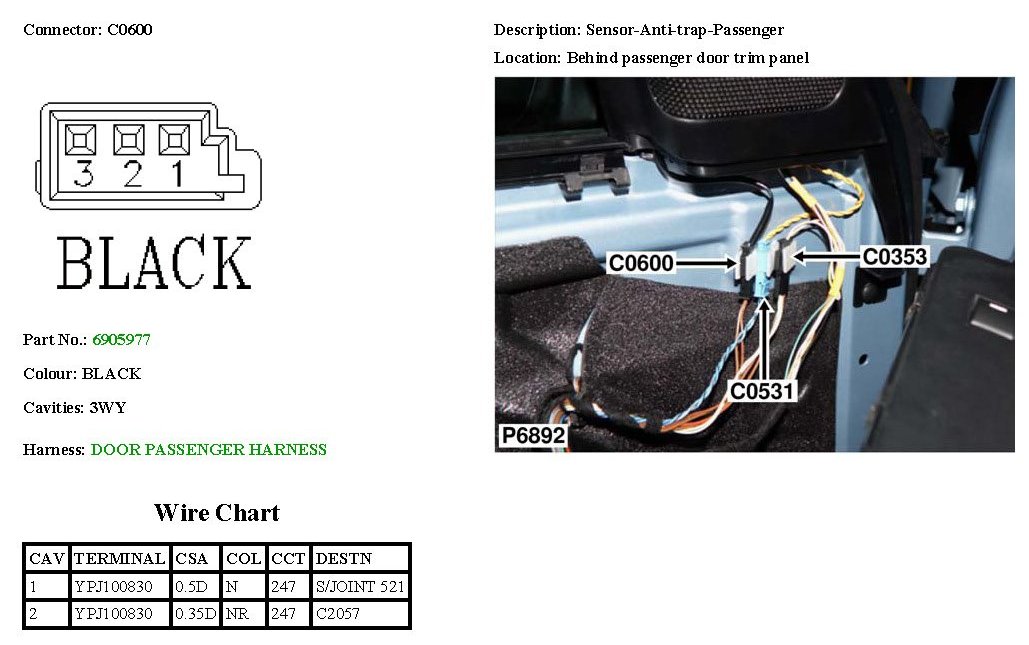

Sensor-Anti-Trap-Passenger

C0600:
