Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Module-Climate-Controlled Seat

Module-Climate-Controlled Seat

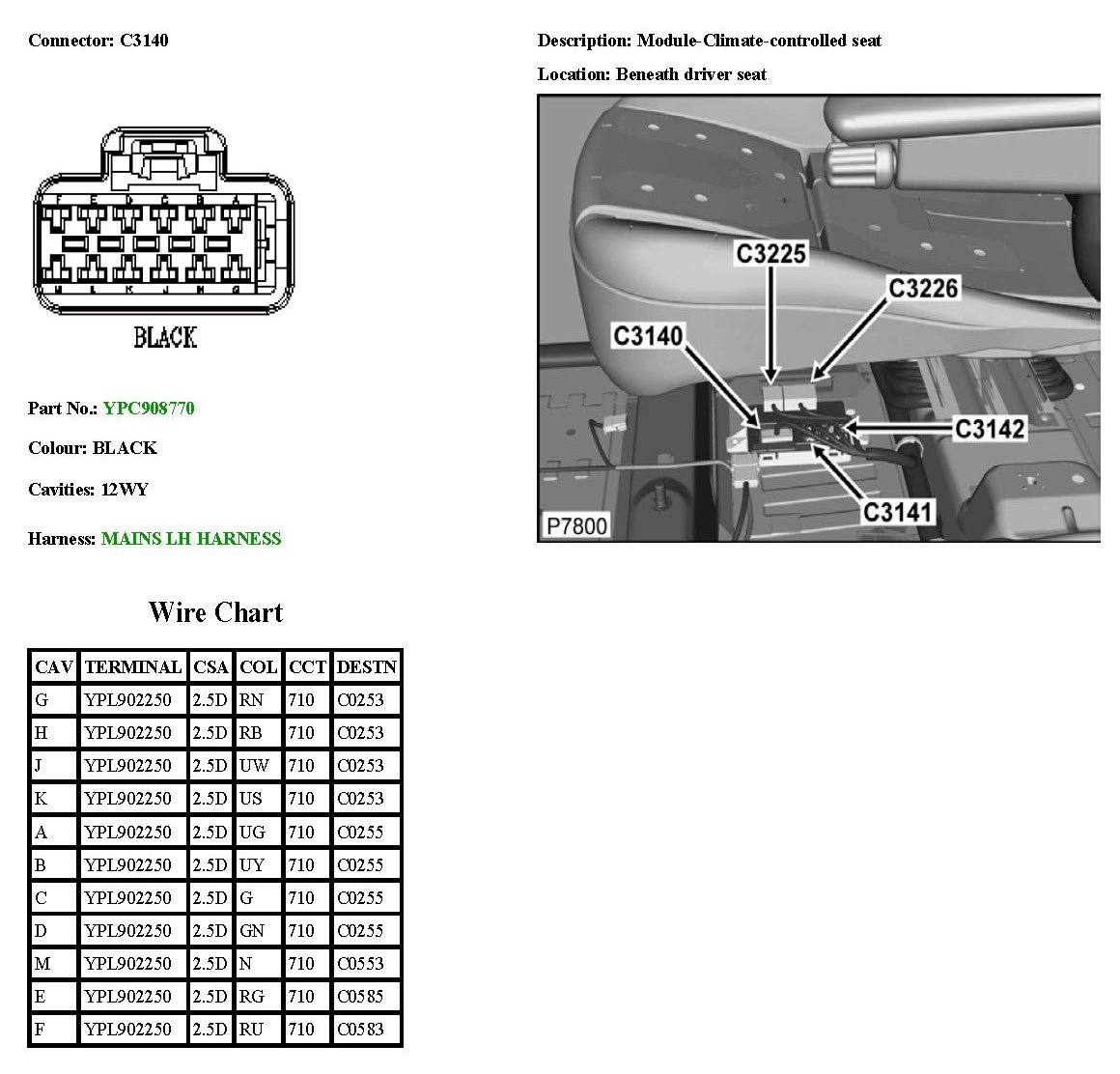

C3140:

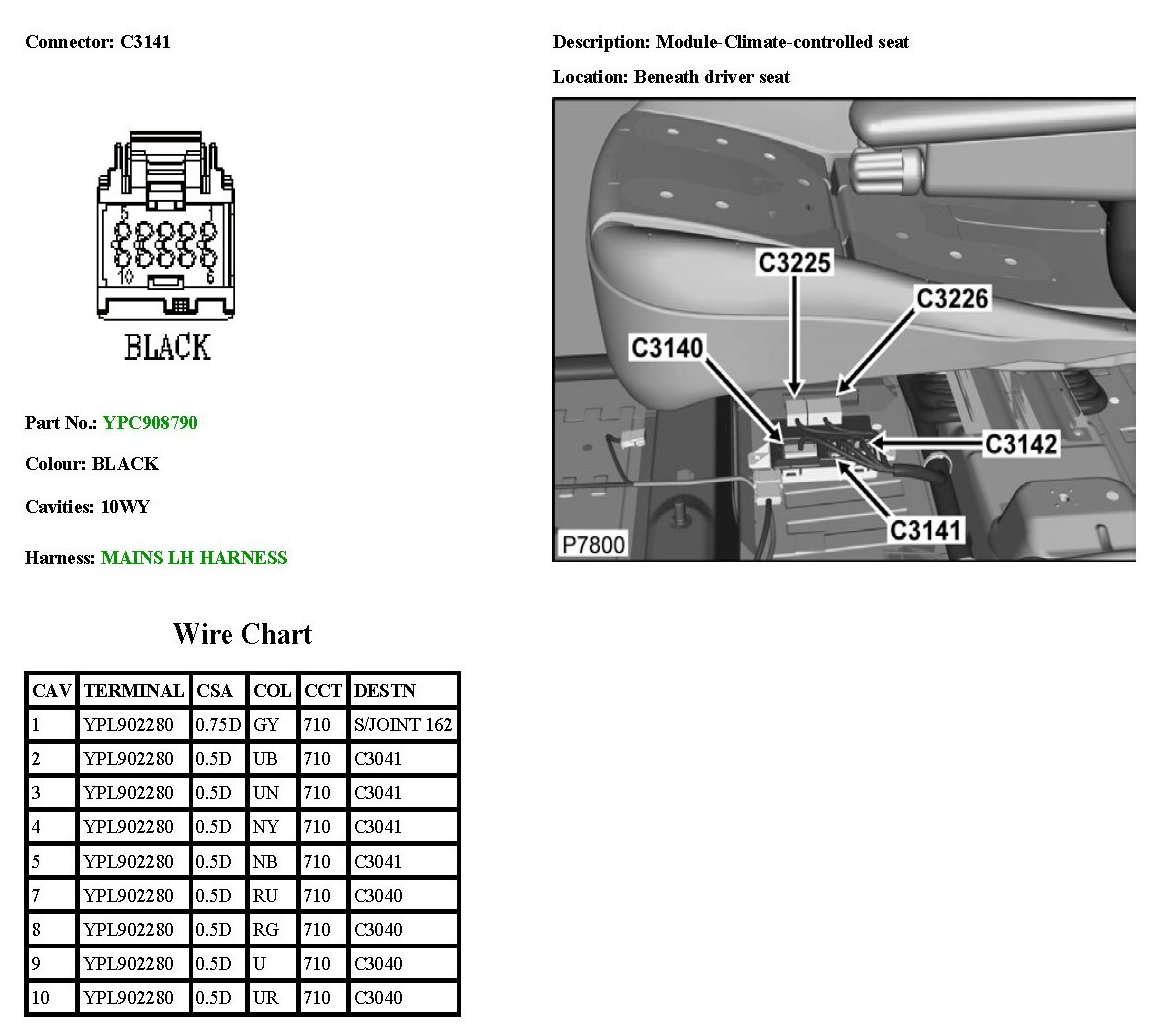

C3141:

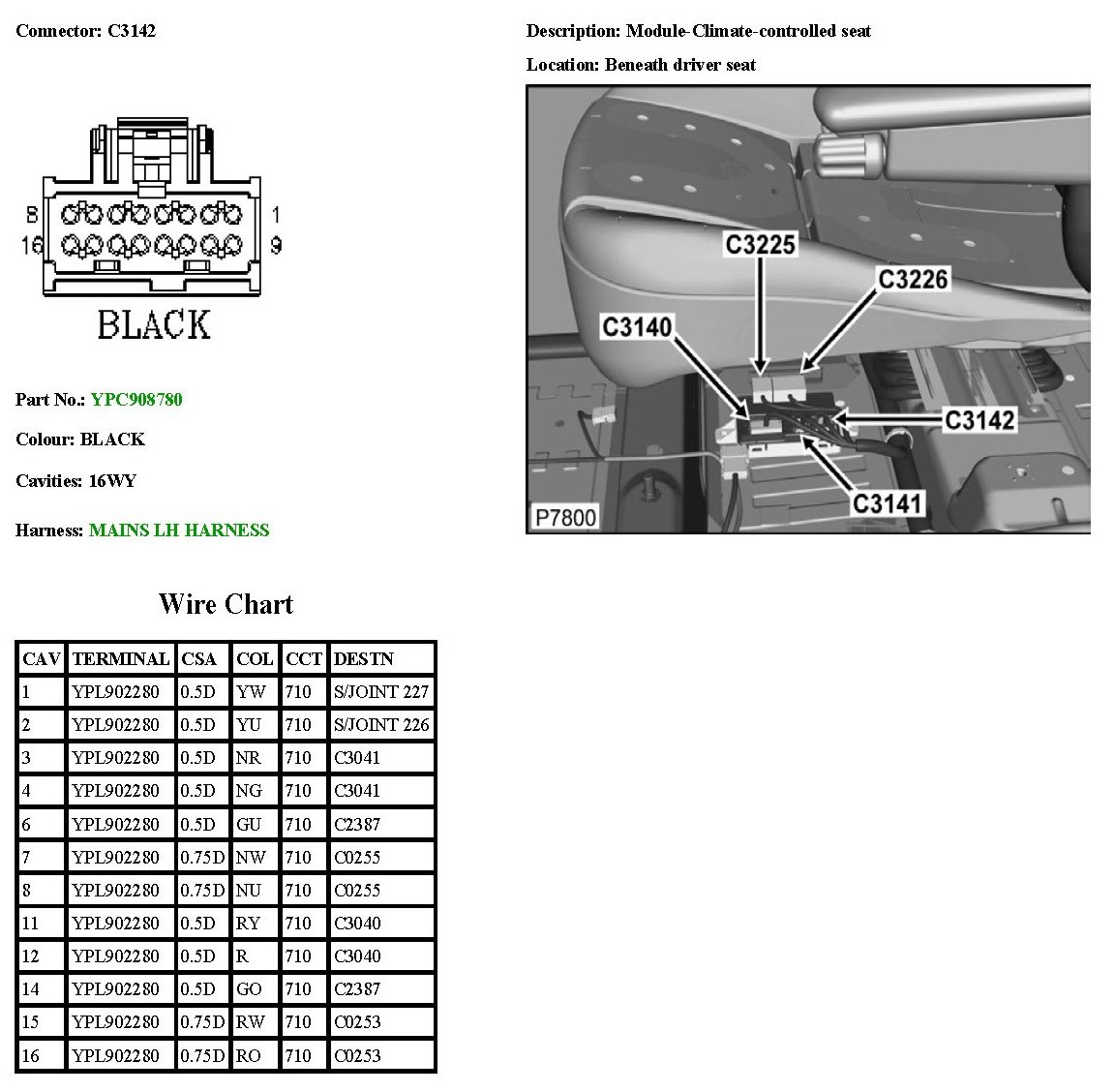

C3142:
