Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module

General Module

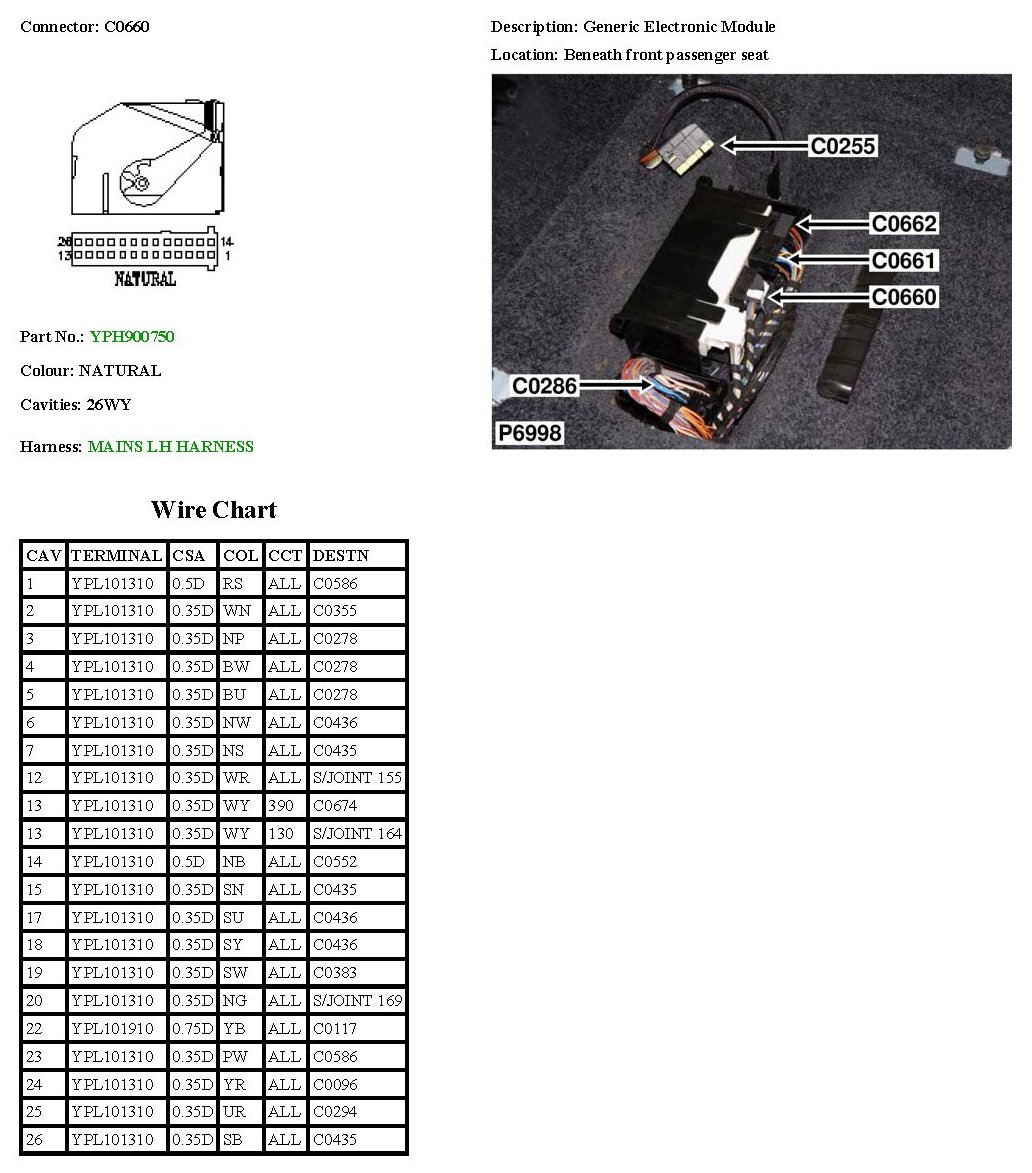

C0660:

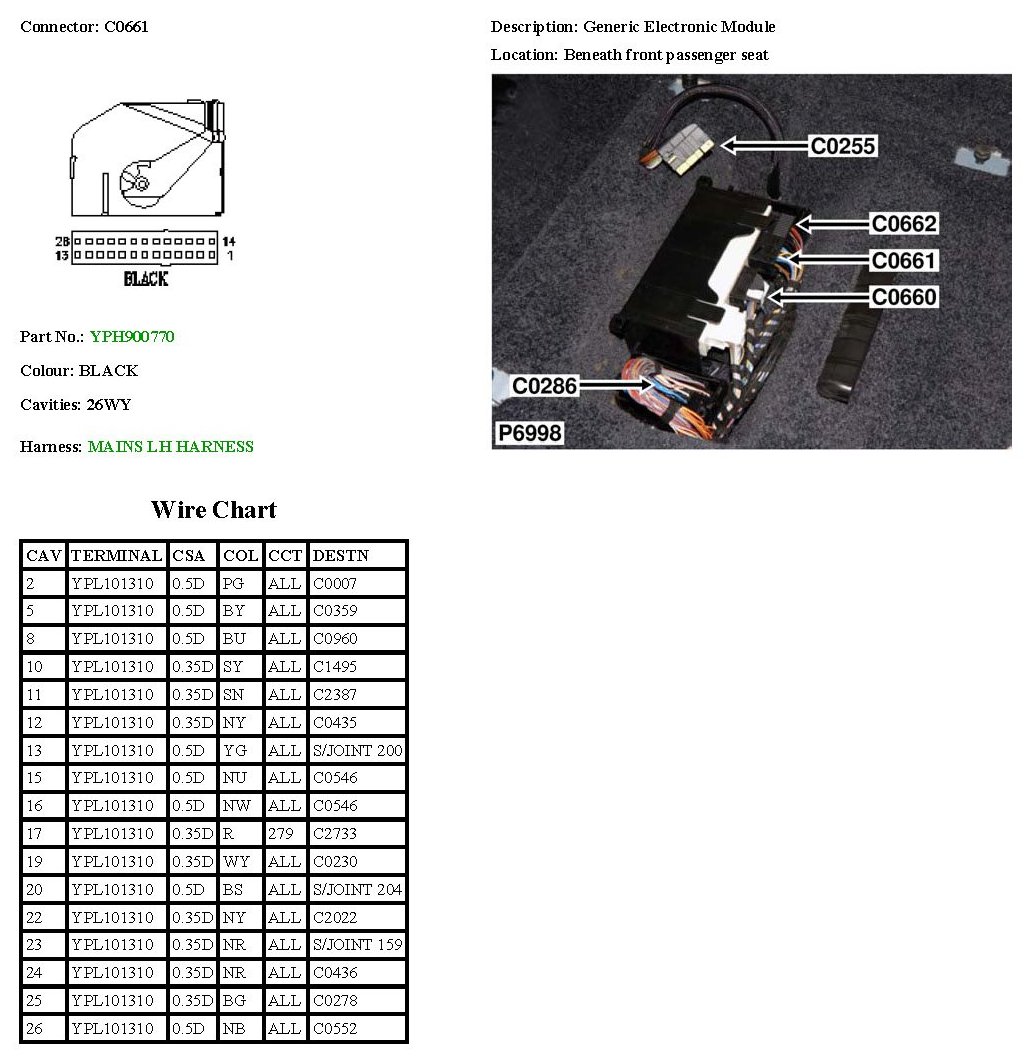

C0661:

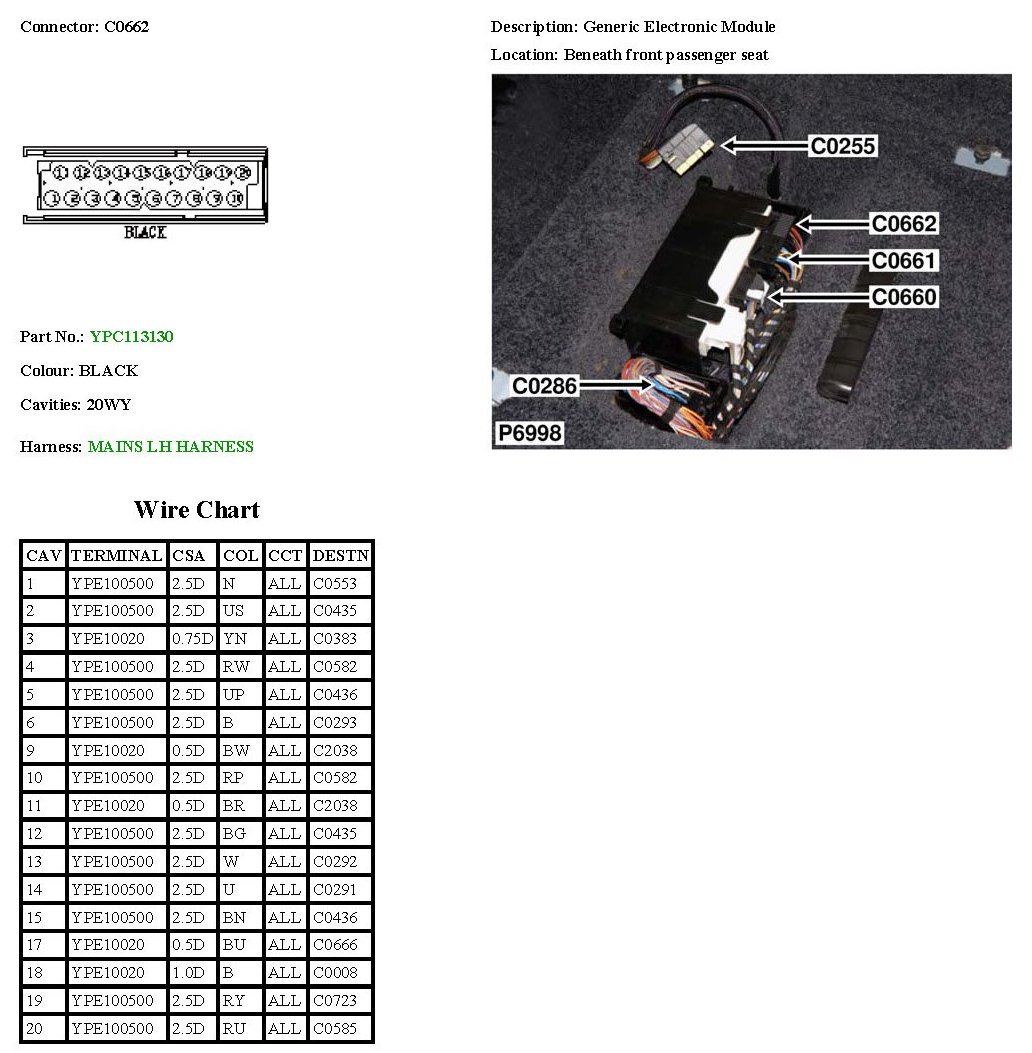

C0662:
