Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Module-Passenger-Door

Module-Passenger-Door

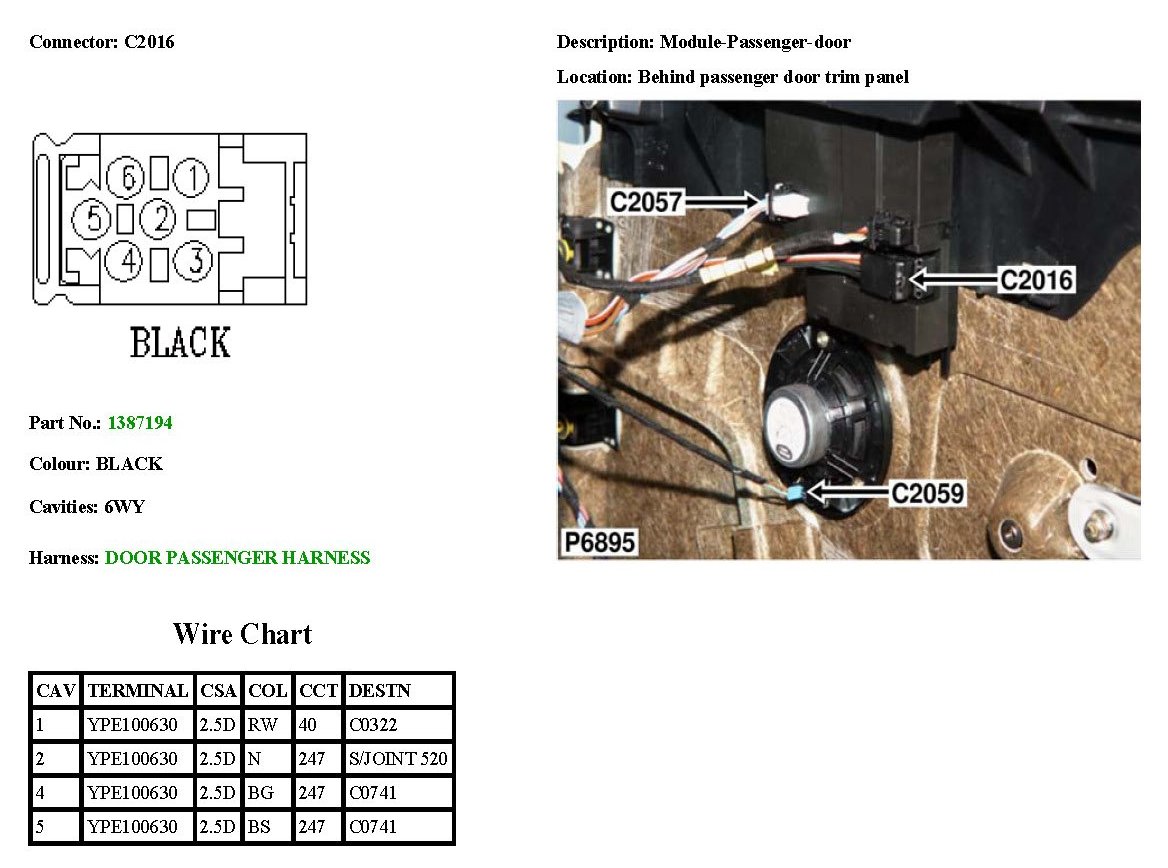

C2016:

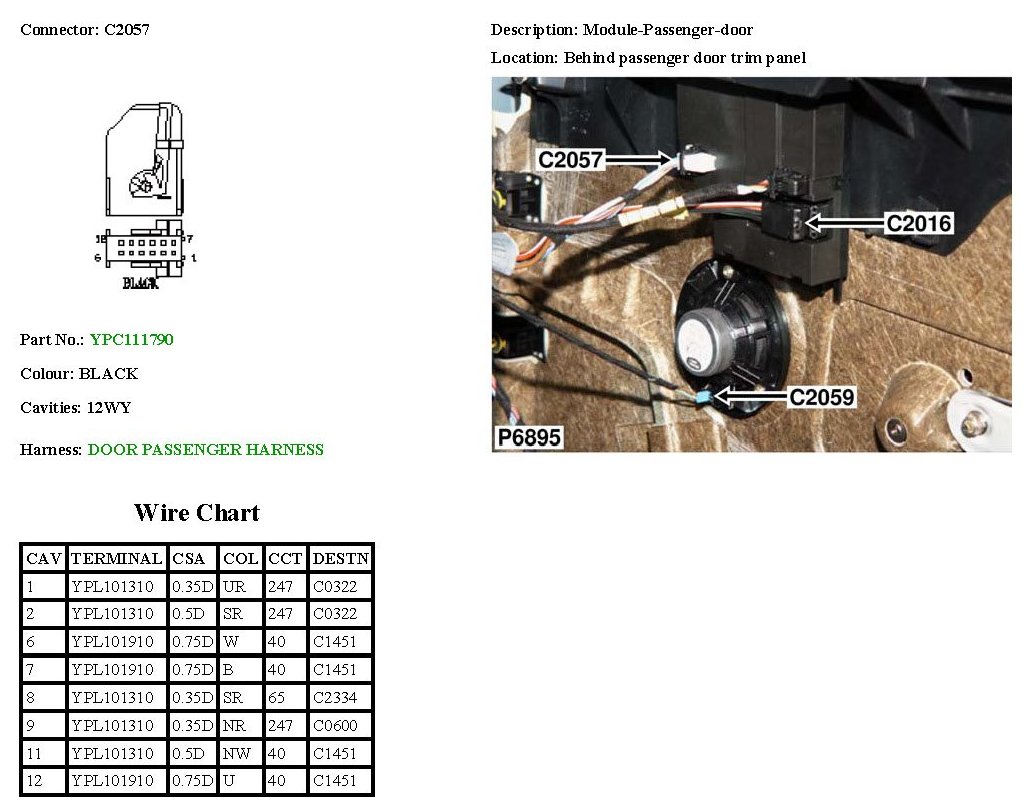

C2057:
