Oil Pan, Engine

Torque Specifications





Sump Pan Bolts* 20 Nm (15 ft. lbs.)

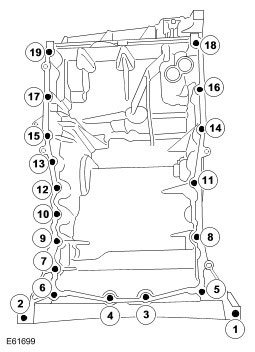

*Tighten In Sequence Shown
