Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

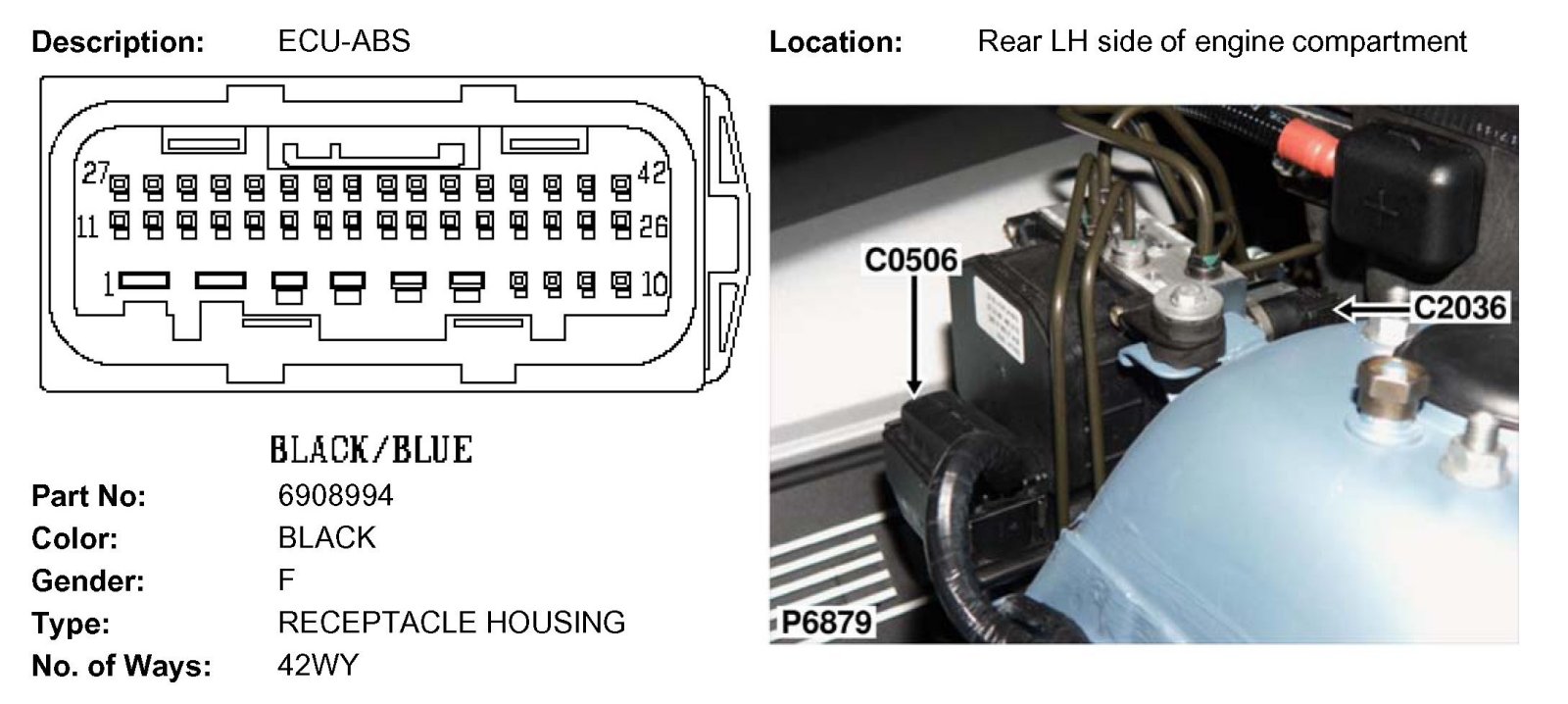

Electronic Brake Control Module
>>
ECU-ABS
ECU-ABS
C0506 (Part 1):
C0506 (Part 2):
C0506 (Part 3):
