P0713

DTC P0713 FLUID(OIL) TEMPERATURE SENSOR CIRCUIT - HIGH

COMPONENT LOCATION
Refer to DTC P0711. P0711

GENERAL DESCRIPTION
Refer to DTC P0711. P0711

DTC DESCRIPTION
This DTC code is set when the ATF temperature output voltage is higher than a value generated by thermistor resistance, in a normal operating range, for an extended period of time. The TCM regards the ATF temperature as fixed at a value of 80°C(176°F).

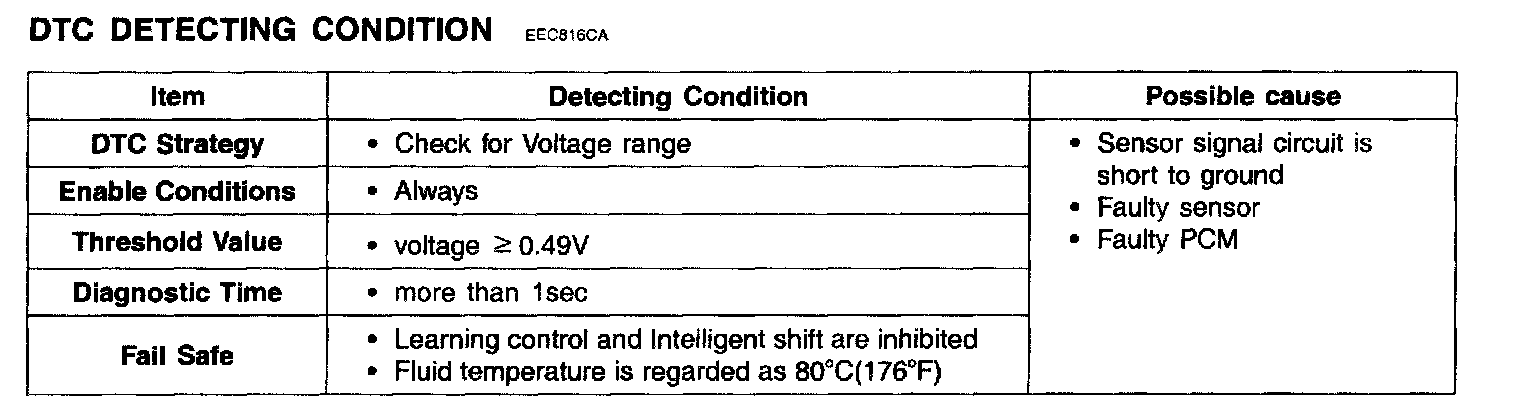

DTC Detecting Condition:

SPECIFICATION
Refer to DTC P0711. P0711

MONITOR SCANTOOL DATA
Refer to DTC P0711. P0711

TERMINAL & CONNECTOR INSPECTION
Refer to DTC P0711.

SIGNAL CIRCUIT INSPECTION
1. Ignition "ON" & Engine "OFF".
2. Disconnect the "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.

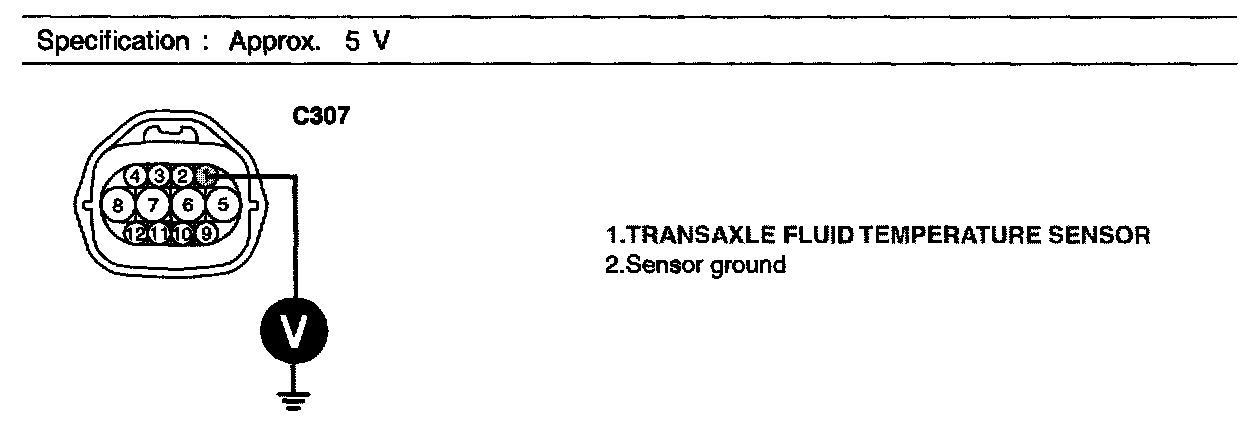

3. Measure the voltage between terminal "1" of the "TRANSAXLE FLUID TEMPERATURE SENSOR" harness connector and chassis ground.

C307:

4. Is voltage within specifications?

YES
^ Go to "Ground circuit inspection" procedure.

NO
^ Check for short to ground in harness. Repair as necessary and Go to "Verification of Vehicle Repair" procedure.

GROUND CIRCUIT INSPECTION
1. Ignition "ON" & Engine "OFF".
2. Disconnect the "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.
3. Measure the resistance between terminal "2" of the "TRANSAXLE FLUID TEMPERATURE SENSOR" harness connector and chassis ground.

C307:

4. Is resistance within specifications?

YES
^ Go to "Component inspection" procedure.

NO
^ Check for open in harness. Repair as necessary and Go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION
Refer to DTC P0711. P0711

VERIFICATION OF VEHICLE REPAIR
Refer to DTC P0711. P0711
