P0712

DTC P0712 FLUID(OIL) TEMPERATURE SENSOR CIRCUIT - LOW

COMPONENT LOCATION
Refer to DTC P0711. P0711

GENERAL DESCRIPTION
Refer to DTC P0711. P0711

DTC DESCRIPTION
Refer to DTC P0711. P0711

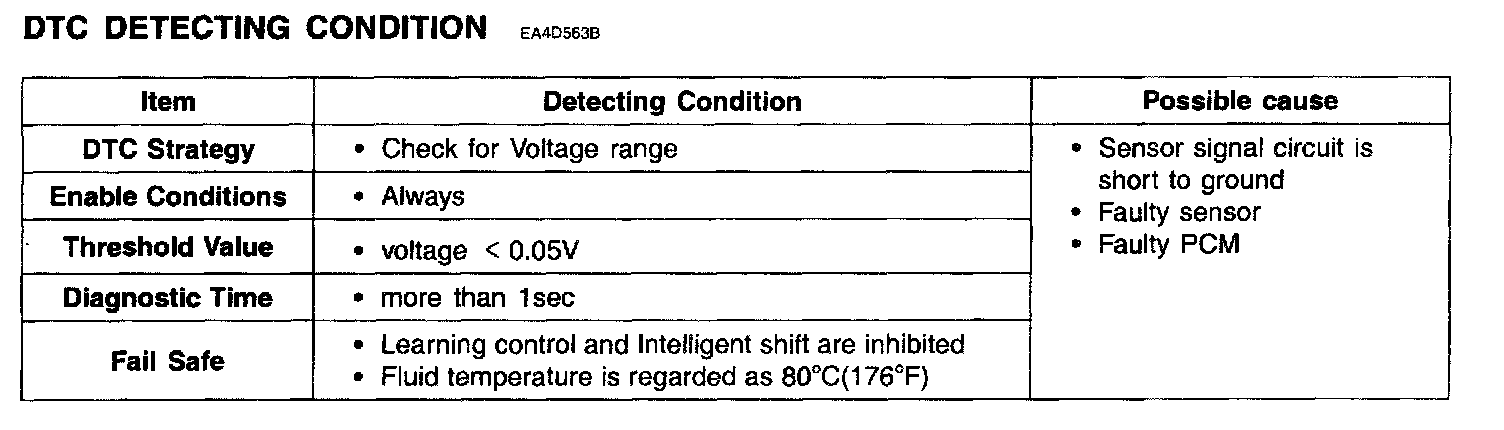

DTC Detecting Condition:

SPECIFICATION
Refer to DTC P0711. P0711

MONITOR SCANTOOL DATA
Refer to DTC P0711. P0711

TERMINAL & CONNECTOR INSPECTION
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?

YES
^ Repair as necessary and go to "Verification of vehicle Repair" procedure.

NO
^ Go to "Signal circuit inspection" procedure.

SIGNAL CIRCUIT INSPECTION
1. Ignition "ON" & Engine "OFF".
2. Disconnect the "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.

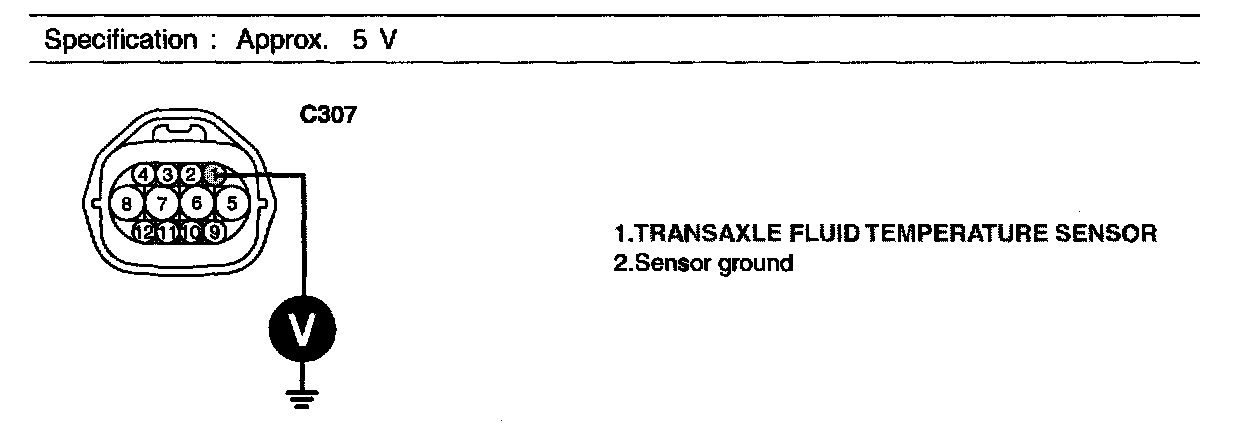

3. Measure the voltage between terminal "1" of the "TRANSAXLE FLUID TEMPERATURE SENSOR" harness connector and chassis ground.

C307:

4. Is voltage within specifications?

YES
^ Go to "Component Inspection" procedure.

NO
^ Check for short to ground in harness. Repair as necessary and Go to "Verification of Vehicle Repair procedure.

COMPONENT INSPECTION
Refer to DTC P0711. P0711

VERIFICATION OF VEHICLE REPAIR
Refer to DTC P0711. P0711
