A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Automatic Transaxle System
Automatic Transaxle System

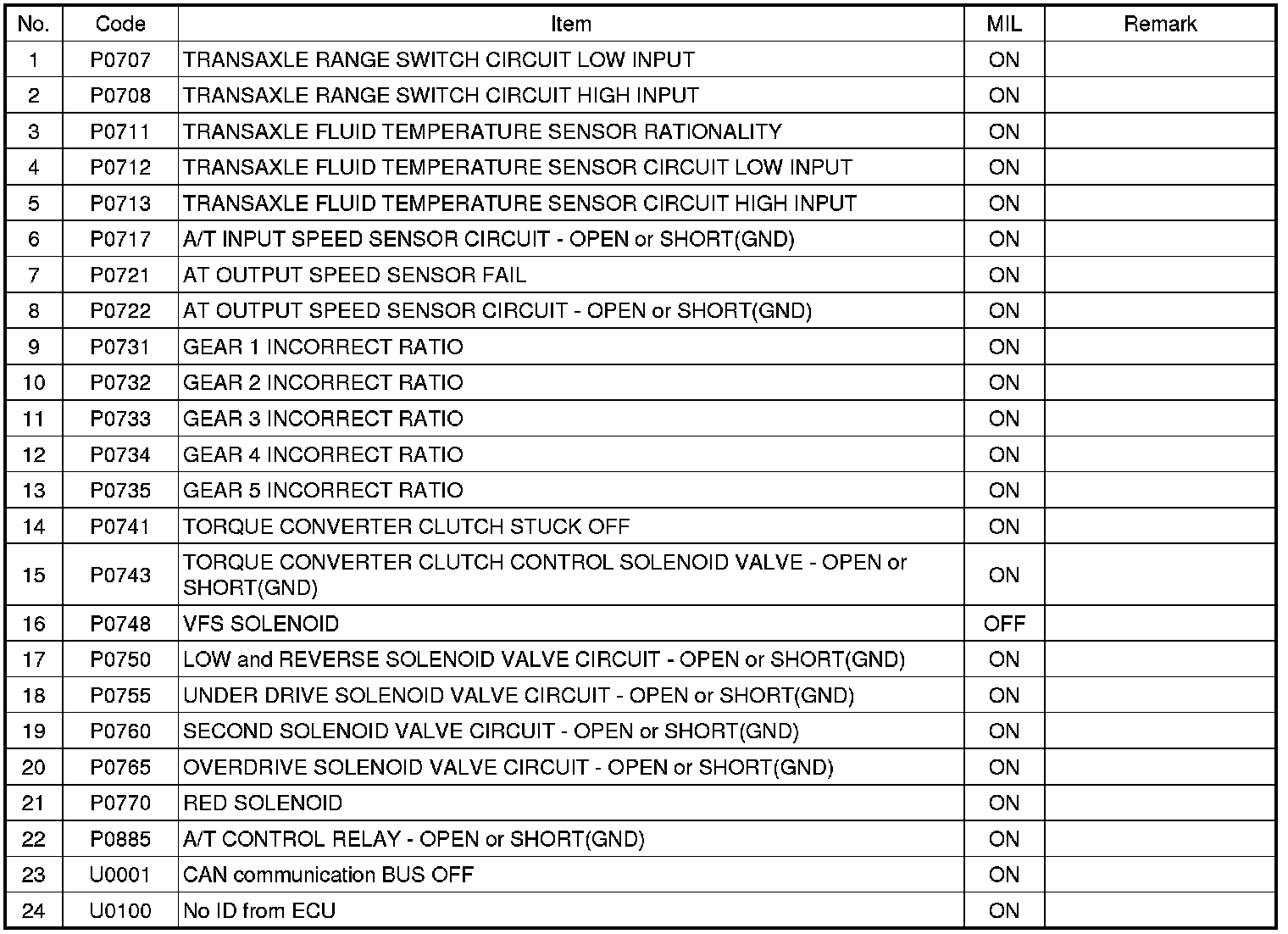

INSPECTION CHART FOR DIAGNOSIS TROUBLE CODES (DTC)
[2.4 GSL]
