Front Crankshaft Oil Seal - Installation

INSTALLATION






CAUTION: To prevent severe damage to the Crankshaft, Damper or Special Tool 8512A, thoroughly clean the damper bore and the crankshaft nose before installing Damper.

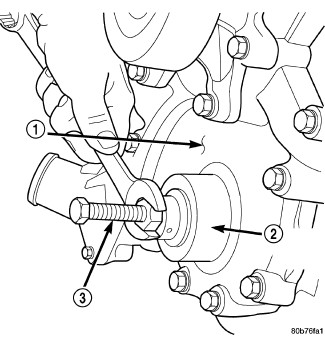

1. Using Seal Installer 8348 and Damper Installer 8512A (2,3), install crankshaft front seal.
2. Install vibration damper Vibration Damper - Installation.
3. Install radiator cooling fan and shroud Cooling Fan - Installation.
4. Install upper radiator hose.
5. Install A/C compressor and tighten fasteners to 54 Nm (40 ft. lbs.).
6. Install accessory drive belt refer Serpentine Accessory Drive Belt - Installation.
7. Refill cooling system Service and Repair.
8. Connect negative cable to battery.
