Rear Cable

REAR

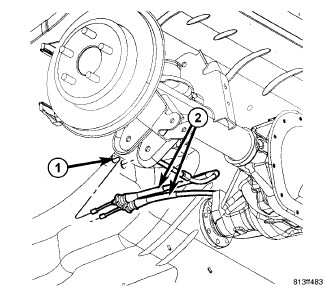

1. Install the cable (2) to the vehicle.
2. Install the 2 push pins for the park brake cable to the stabilizer bar bracket.
3. Install the stabilizer bar bushing clamp bolts.
4. Install the park brake cable (2) into the support plate.










5. Reconnect the park brake cable at the brake actuator lever (2).

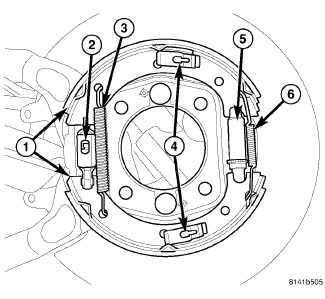

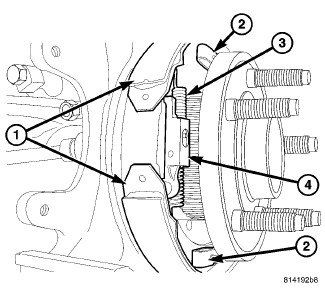

6. Reconnect the rear park brake shoes (1)Installation.

7. Adjust rear park brake shoes Adjustments.









8. Install the disc brake rotor.










9. Install the rear caliper (1) Disc Brake Caliper - Installation.










10. Install the park brake cables (2) thru the floor (1).

11. Install the tire and wheel assembly.
12. Lower the vehicle.









13. Reconnect the brake cables to the equalizer (1).










14. Unlock the park brake cable (1).










15. Fold down the rear carpet.
16. Install the rear sill plates.
17. Install the (FDCM) module bracket (2) mounting nuts.
18. Reconnect the (FDCM) module electrical connectors (1).










19. Install the rear seat bottom Seat - Installation.
20. Verify parking brake operation.
