Integrated Power Module




Underhood Fuses (Integrated Power Module)


Integrated Power Module - Under Hood:

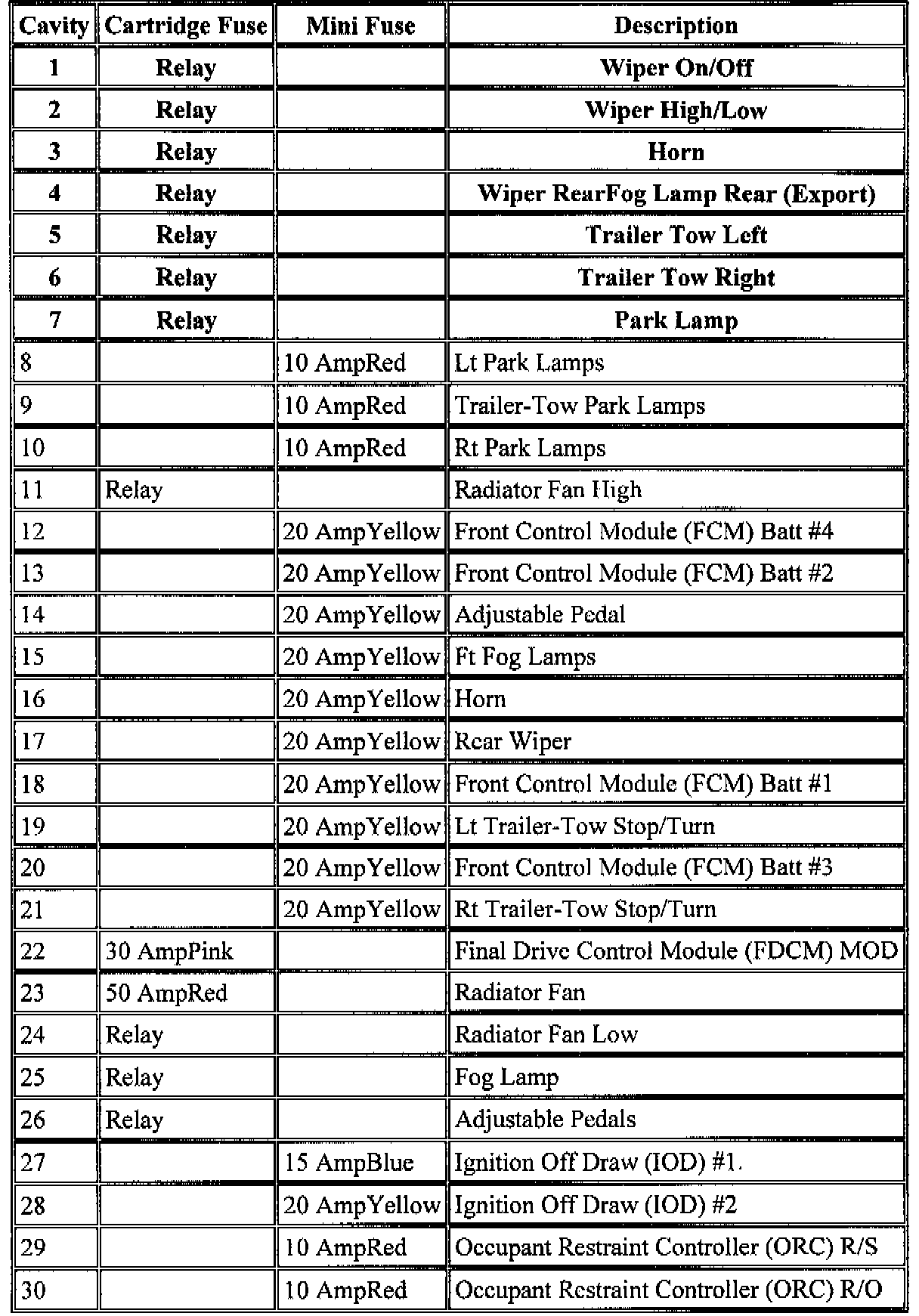

Fuse 1 - 30:
