Engine Specifications







ENGINE SPECIFICATIONS

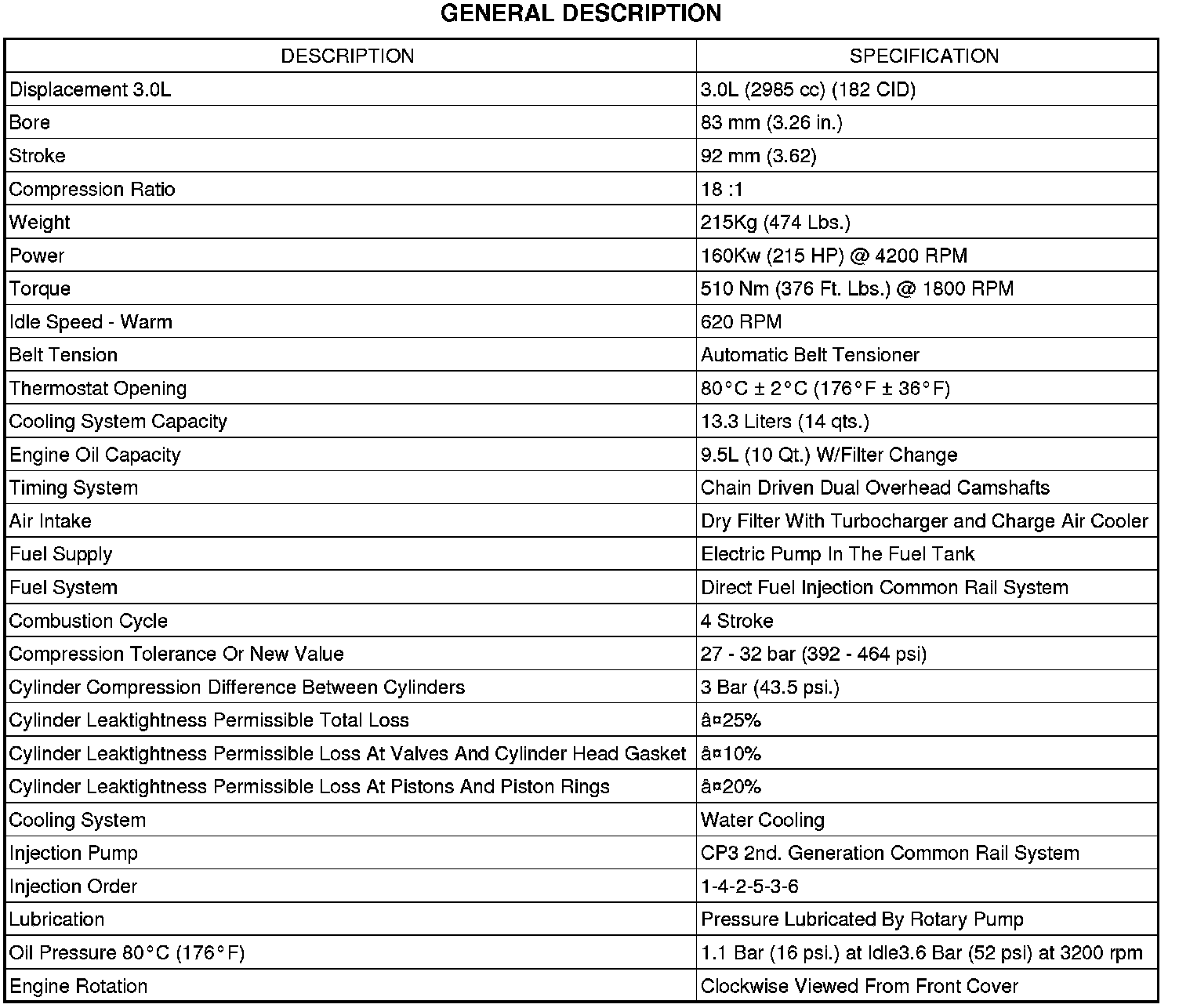

General Description

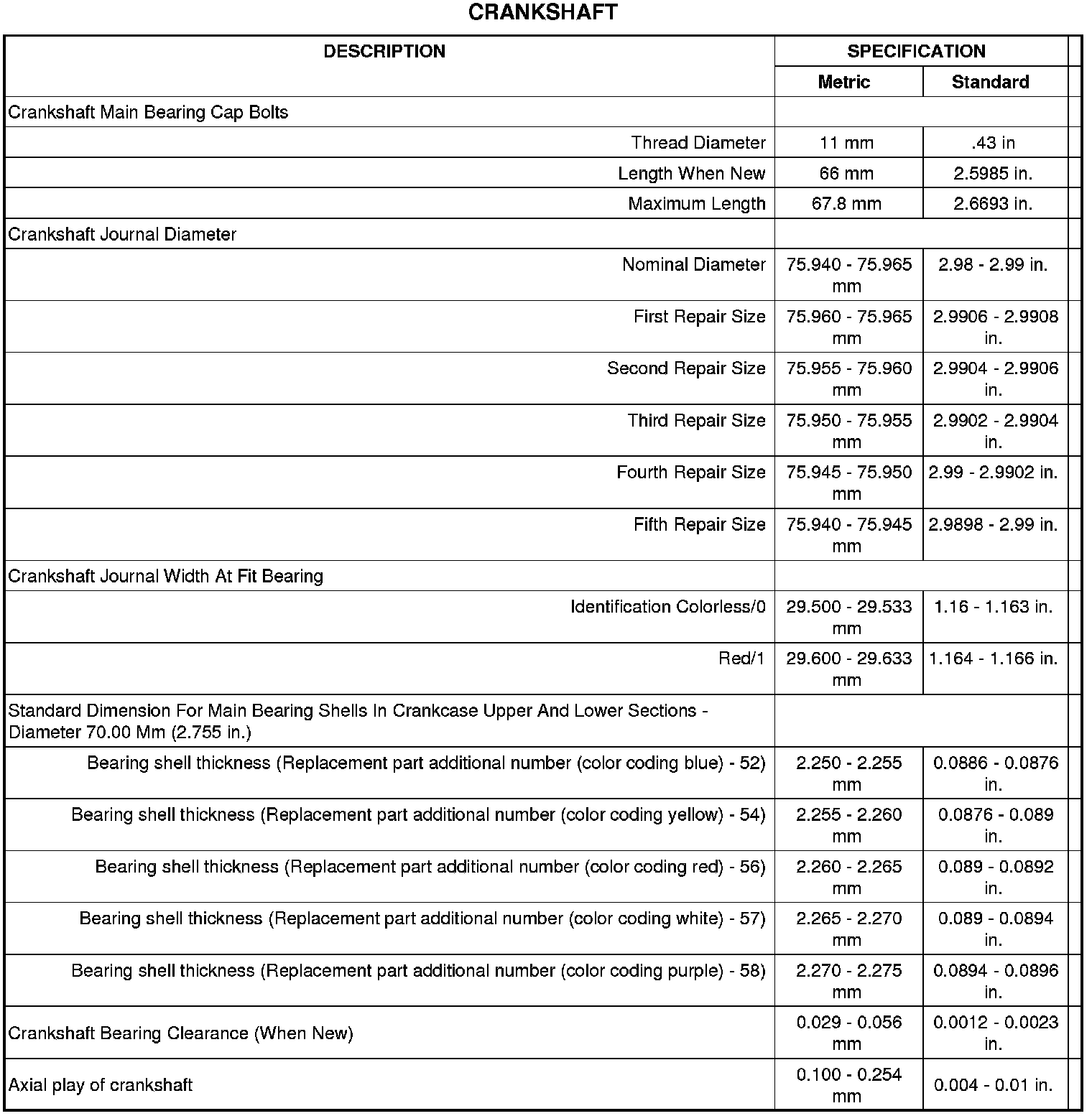

Crankshaft





Cylinder Head





Vibration Damper

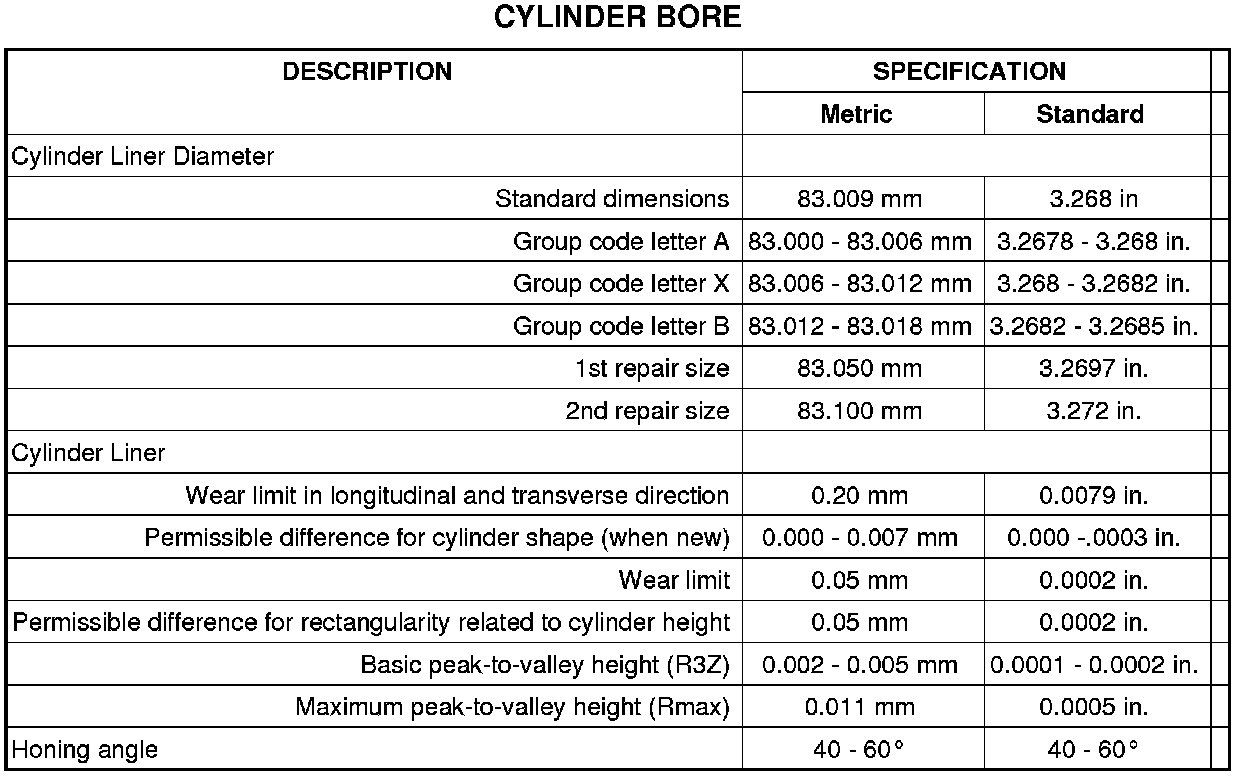

Cylinder Bore

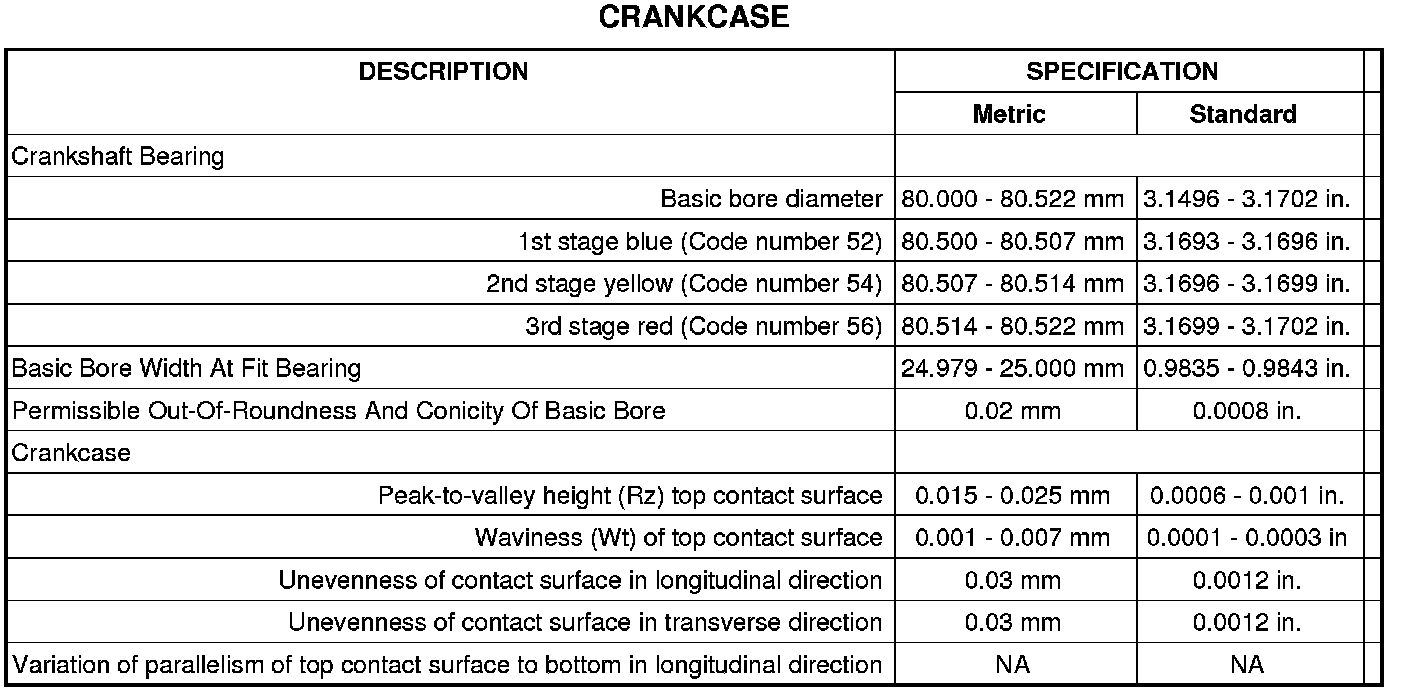

Crankcase

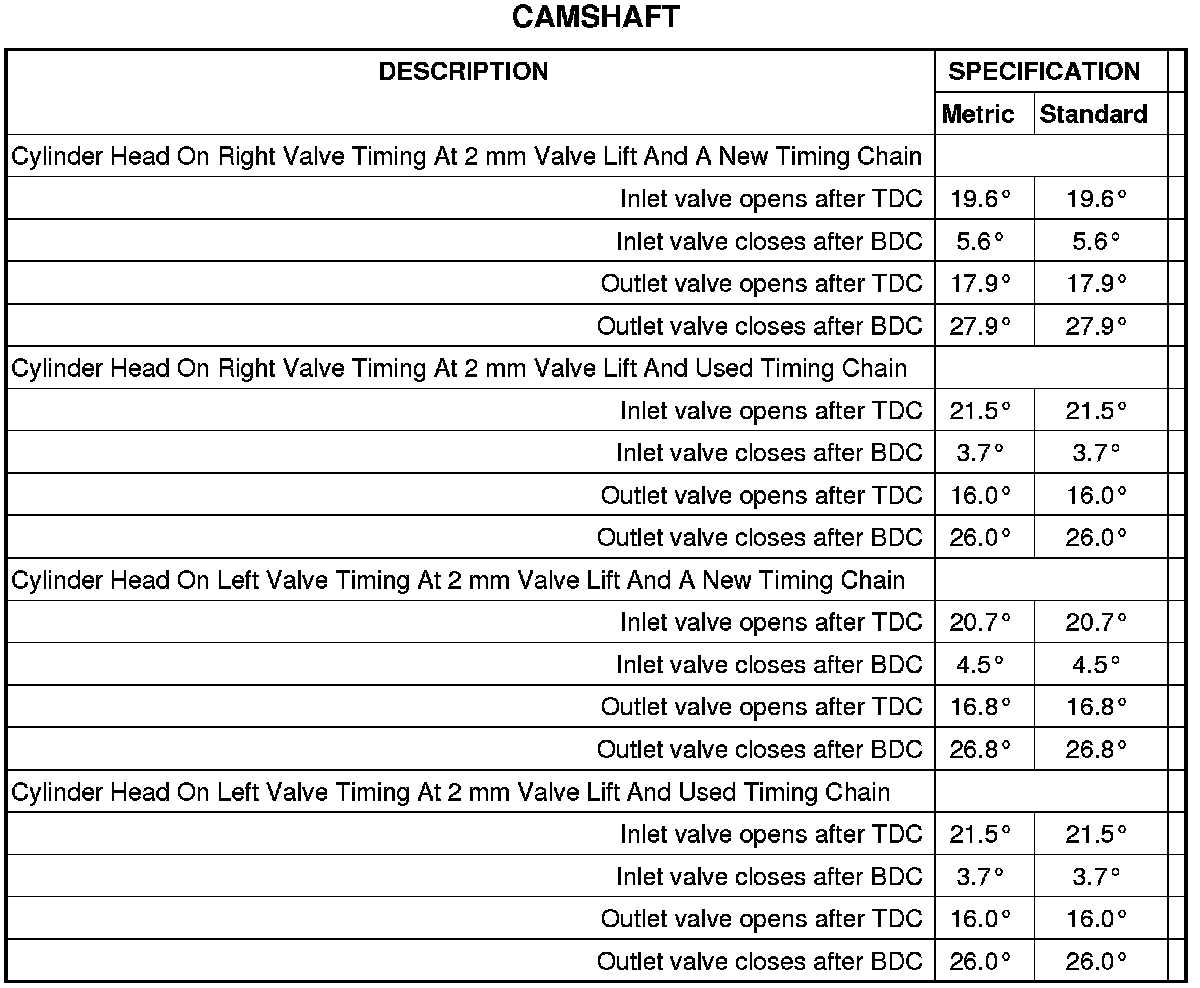

Camshaft





Valves





Pistons





Piston Rings

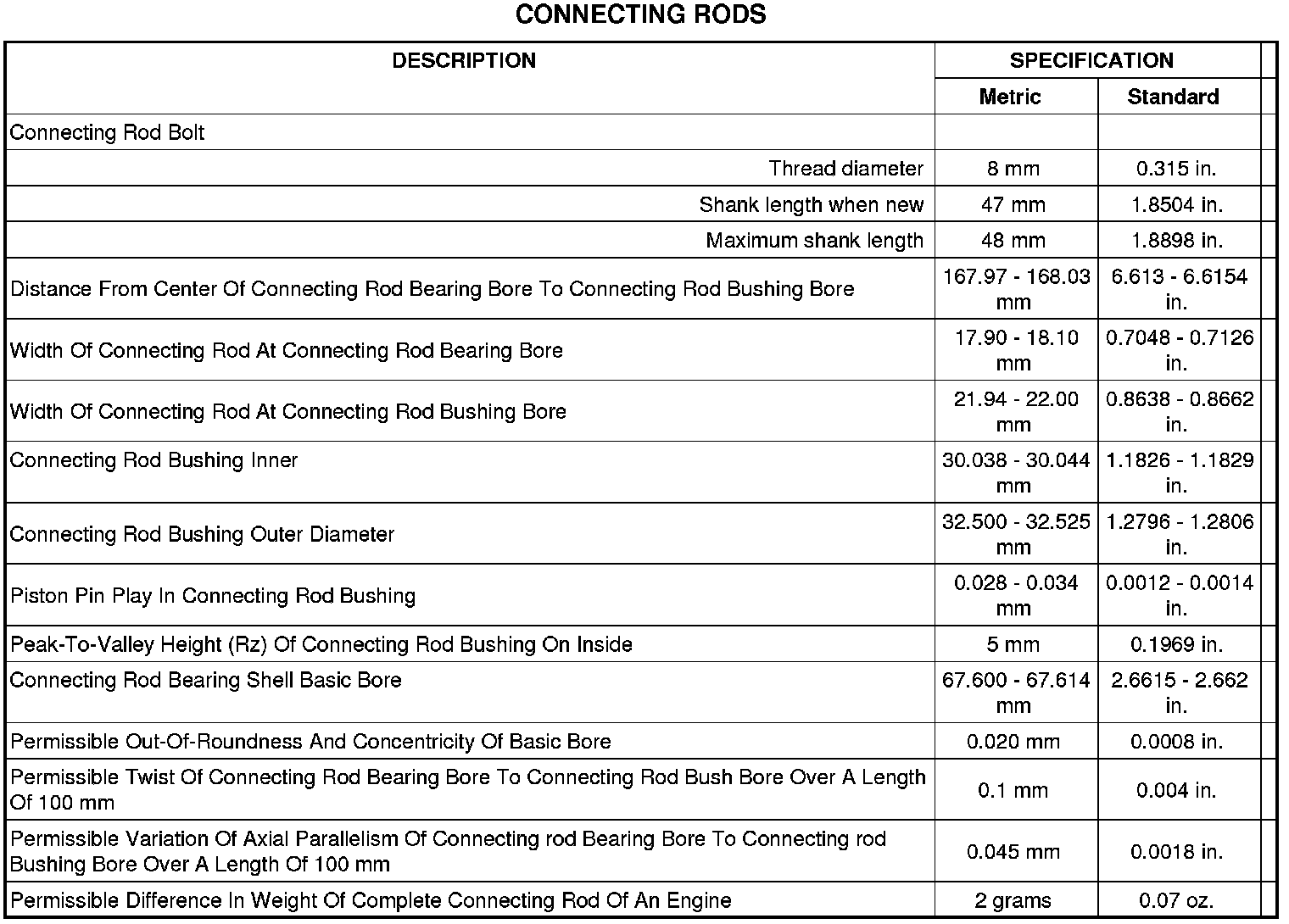

Connecting Rods
