Accelerator Pedal Position Sensor: Locations

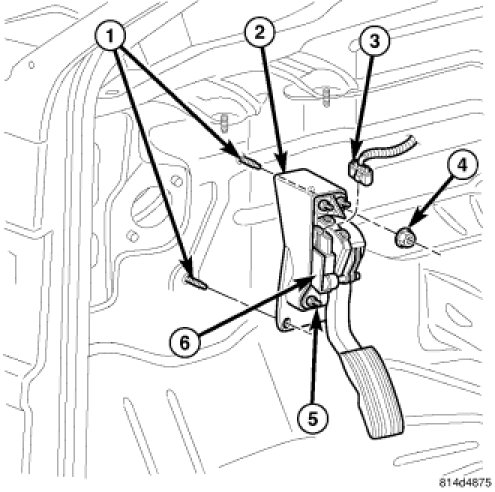

The Accelerator Pedal Position Sensor (APPS) (6) is attached to the accelerator pedal assembly under the instrument panel.
