Home >> Jeep Truck >> 2006 >> Wrangler L6-4.0L VIN S >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

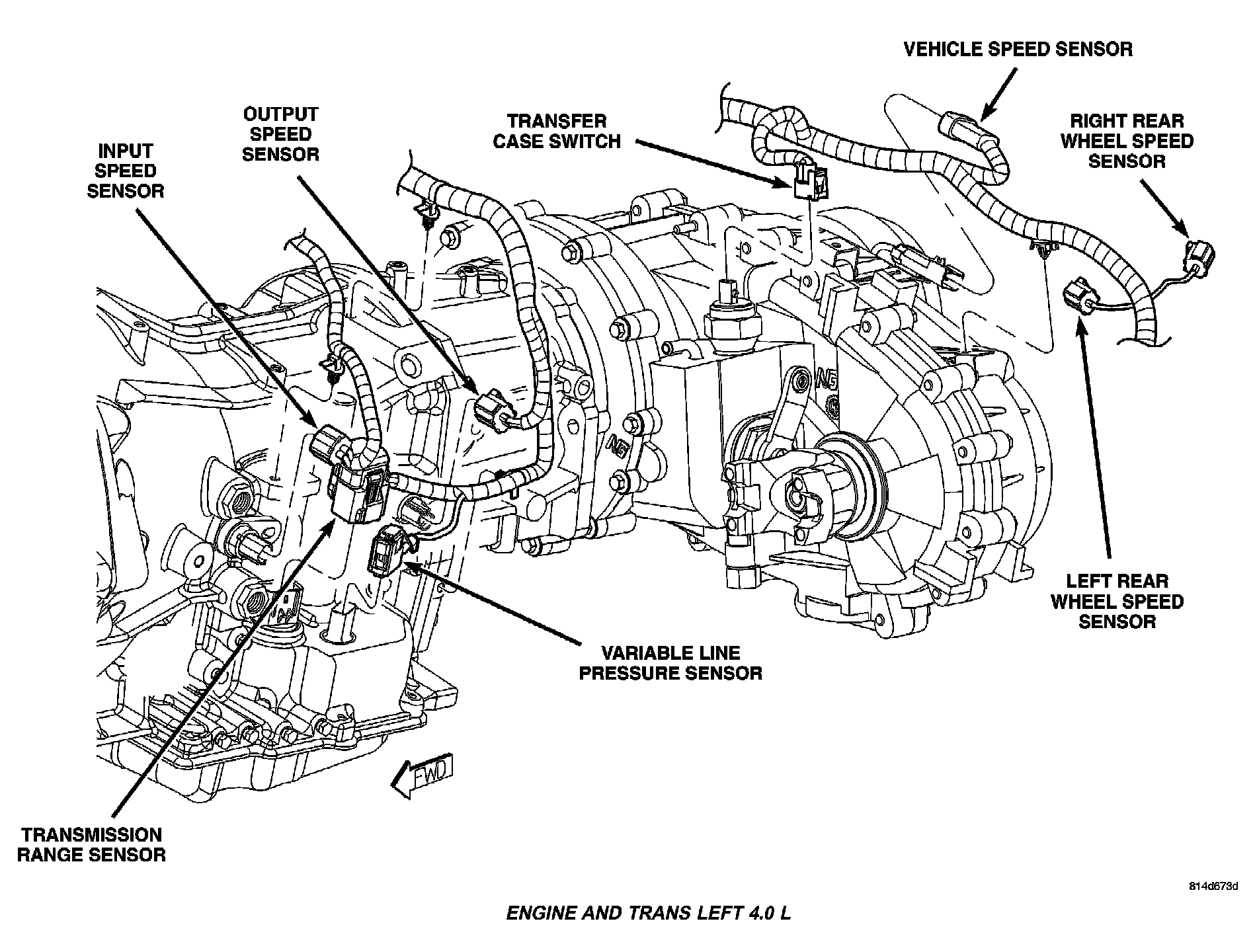

Engine And Trans Left 4.0L:
