Transmission Position Sensor/Switch: Locations

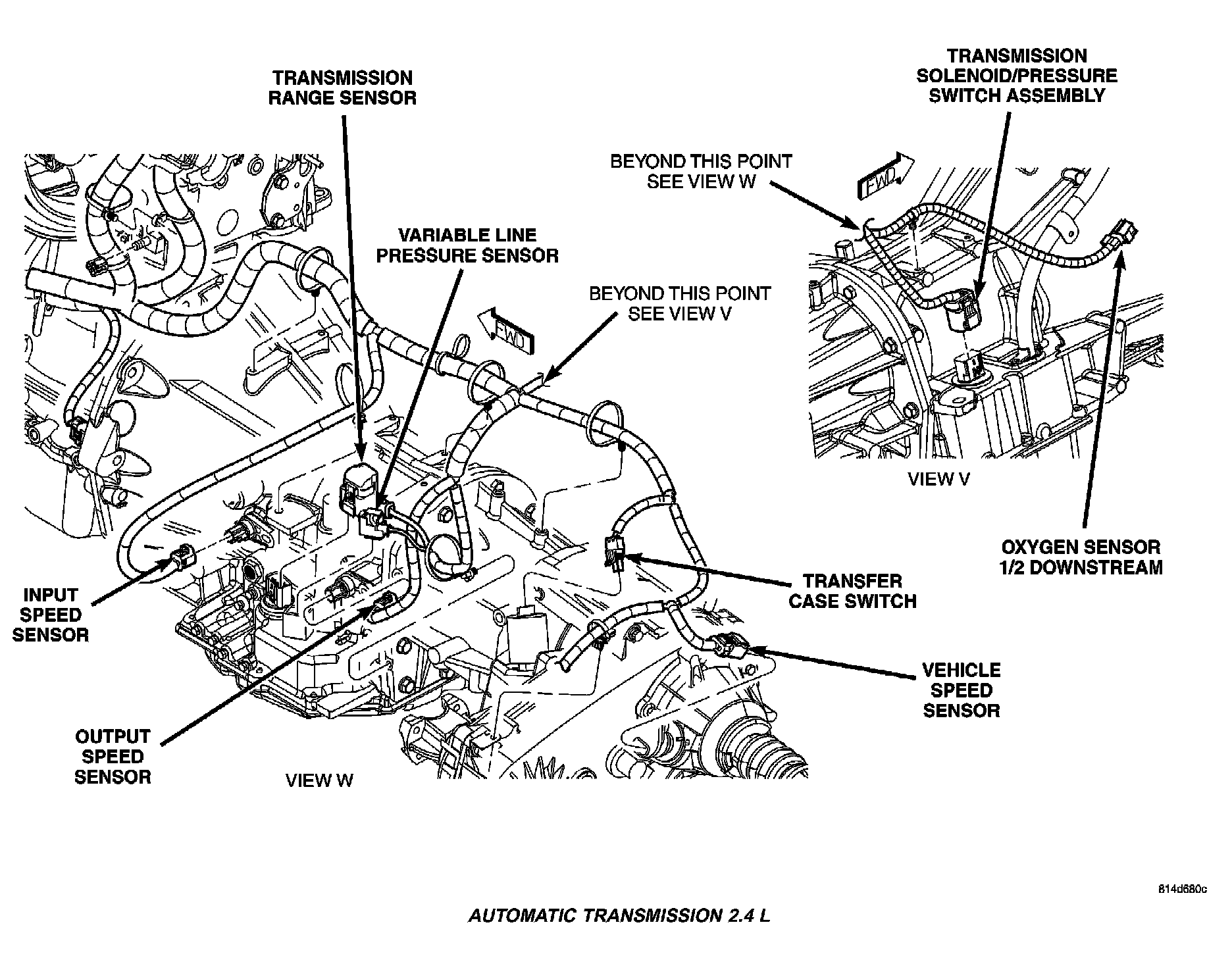

Automatic Transmission 2.4L:

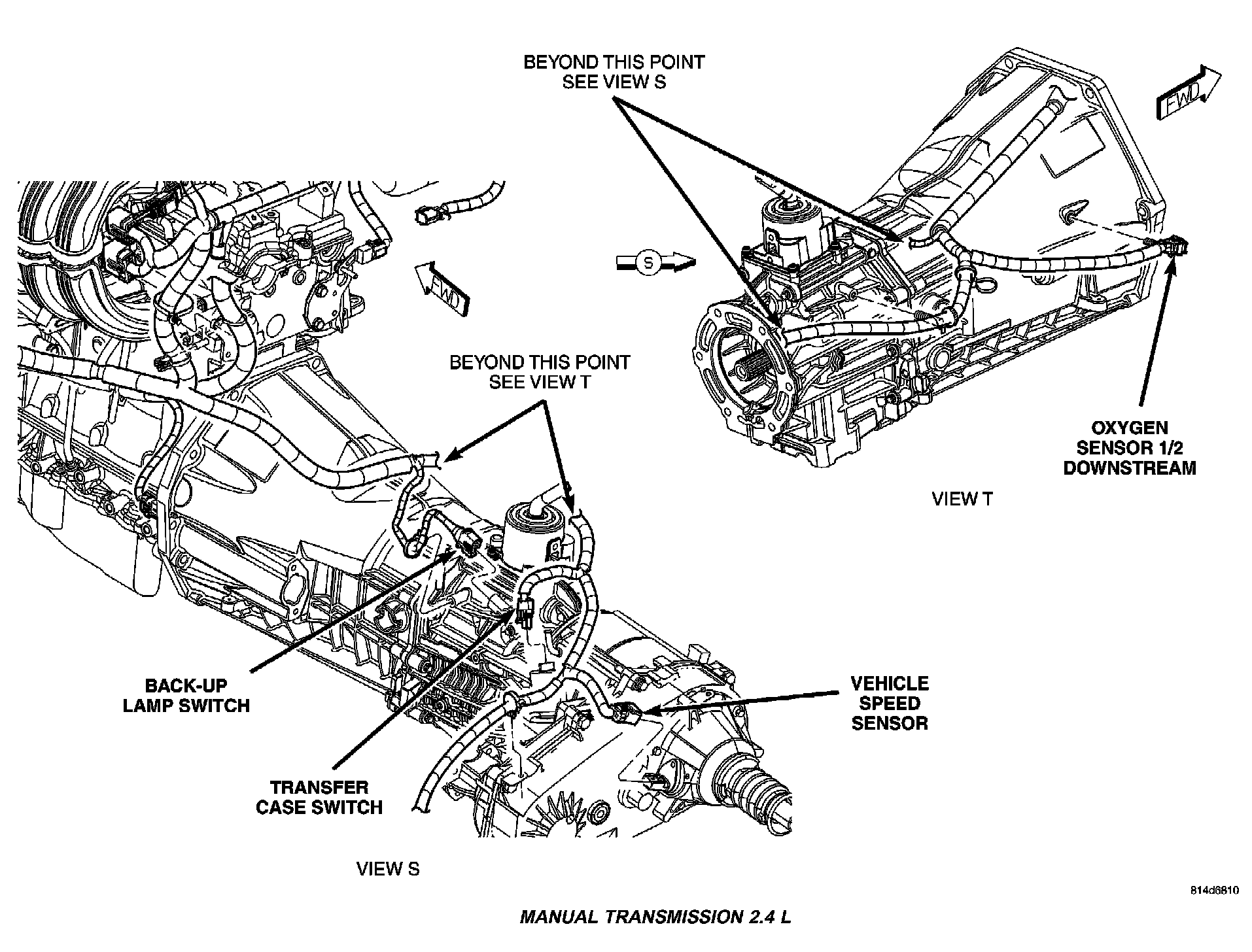

Manual Transmission 2.4L:
