Home >> Jeep Truck >> 2006 >> Liberty 4WD L4-2.8L DSL Turbo VIN 5 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Torque Specifications

Engine Torque Specifications

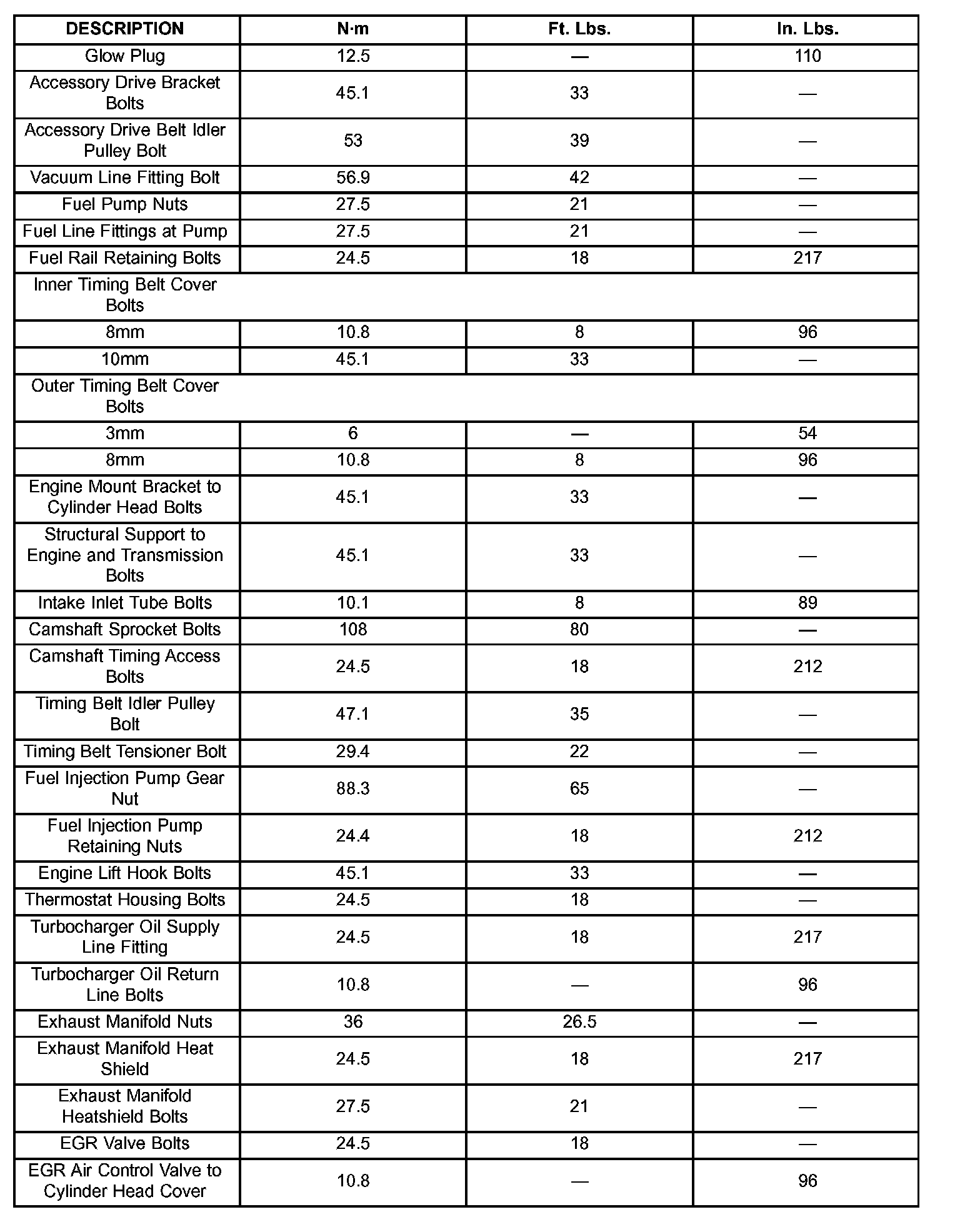

2.8L DIESEL TORQUE SPECIFICATIONS:

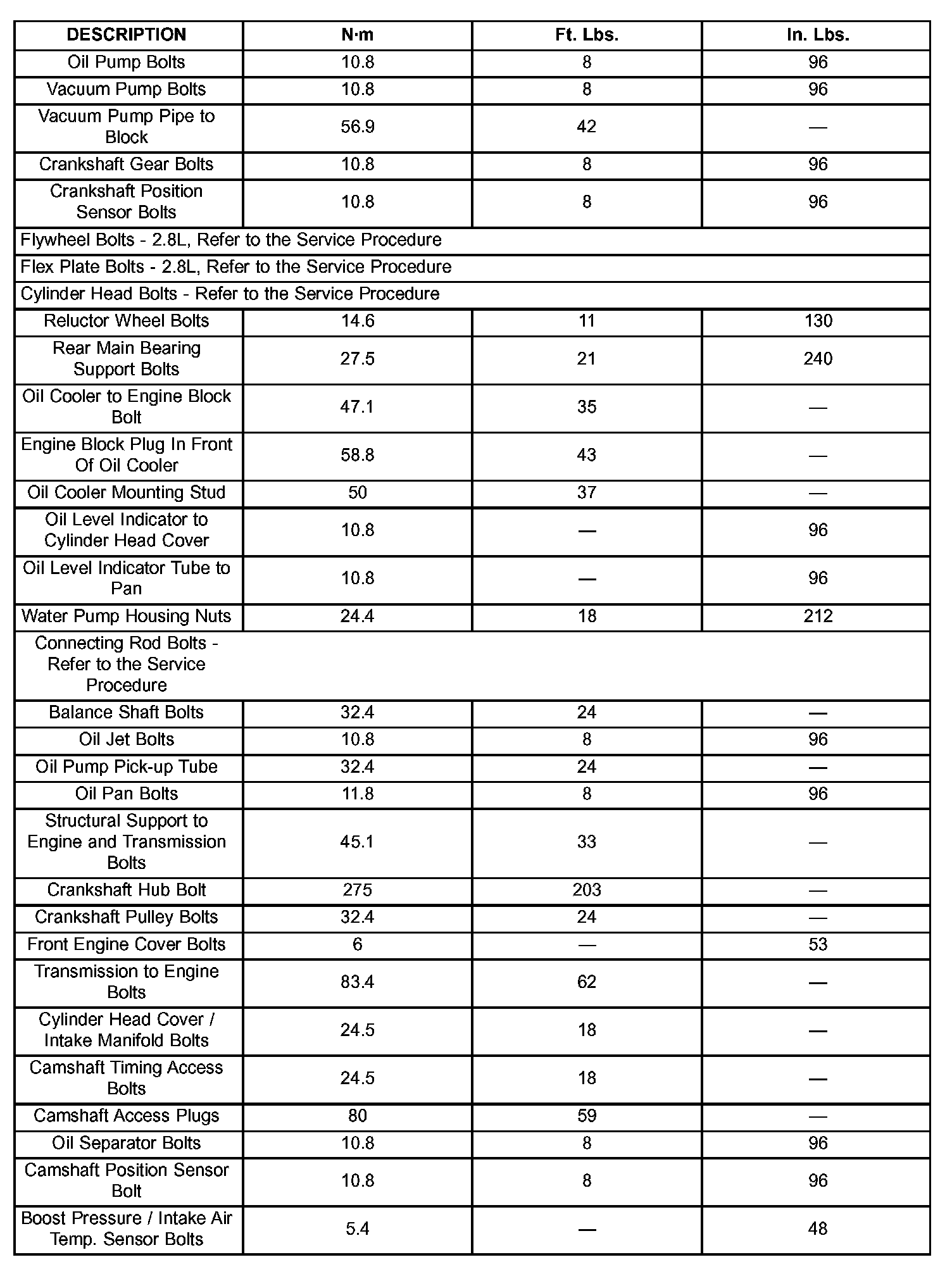

2.8L DIESEL TORQUE SPECIFICATIONS:



2.8L DIESEL TORQUE SPECIFICATIONS:
