FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Jeep Truck
>>
2006
>>
Liberty 4WD L4-2.8L DSL Turbo VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
Control Module, A/T

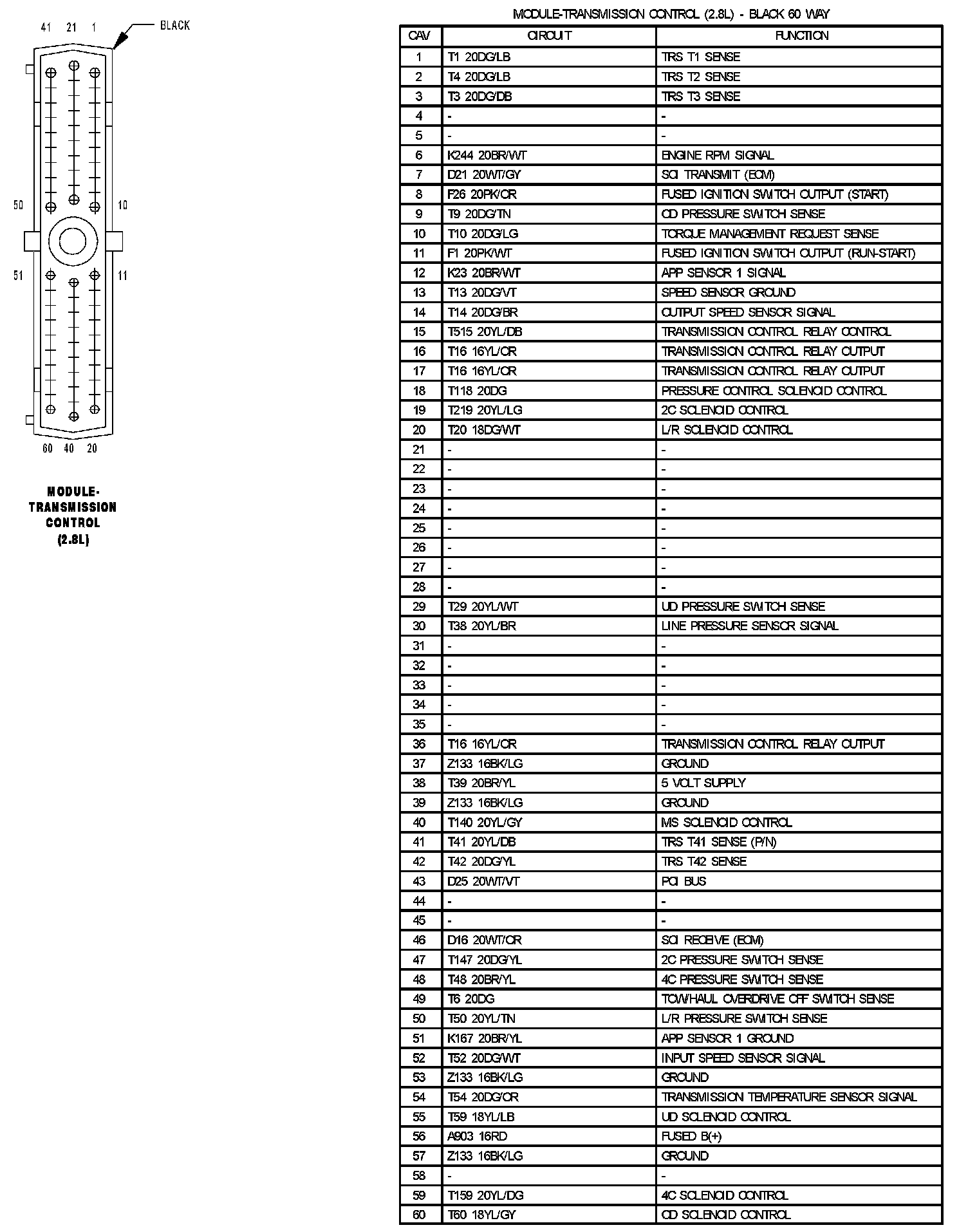

Module - Transmission Control (2.8L):
