Home >> Jeep Truck >> 2006 >> Liberty 2WD V6-3.7L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Diagrams >> Connector Views

Connector Views

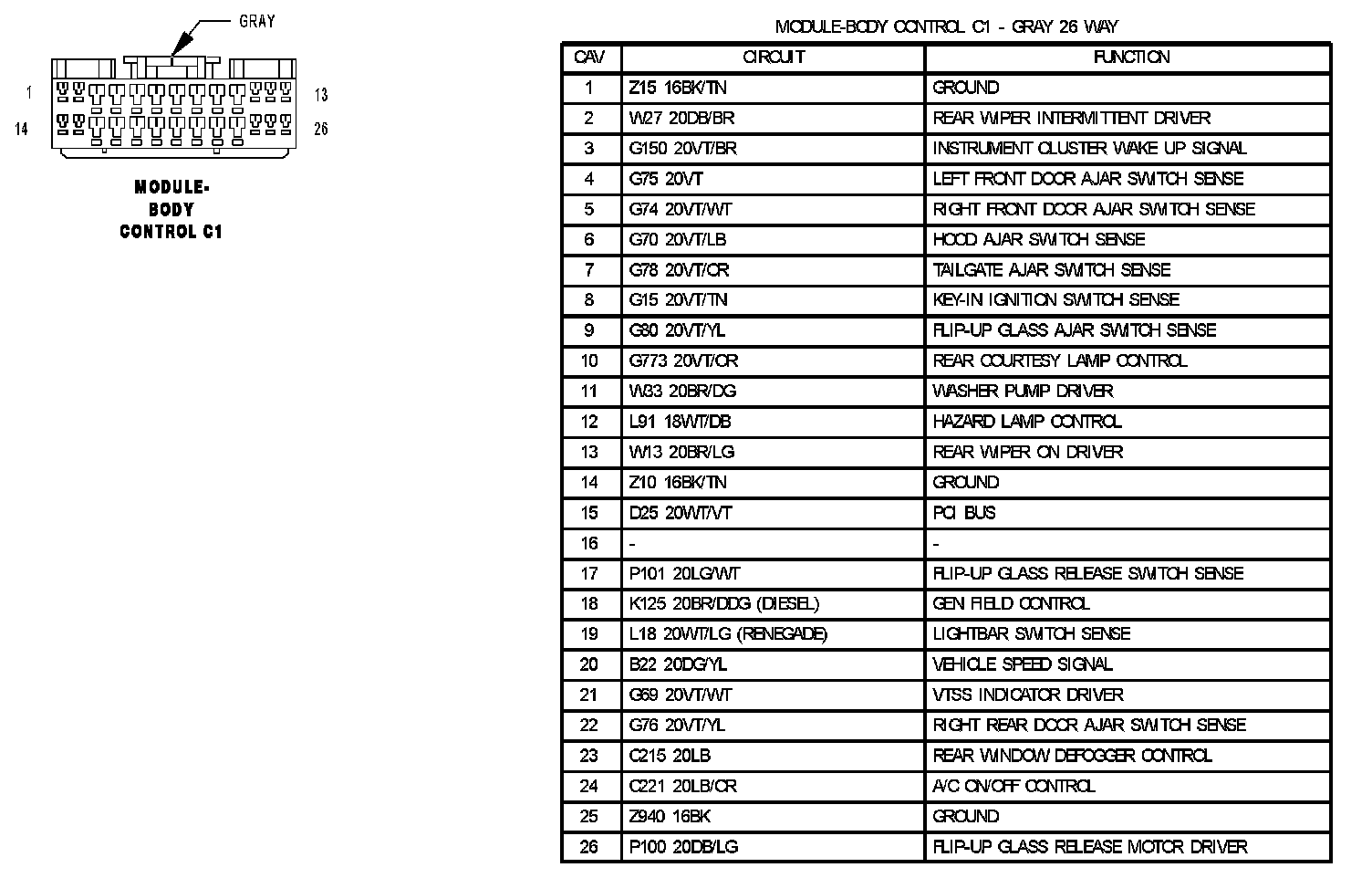

Module - Body Control C1:

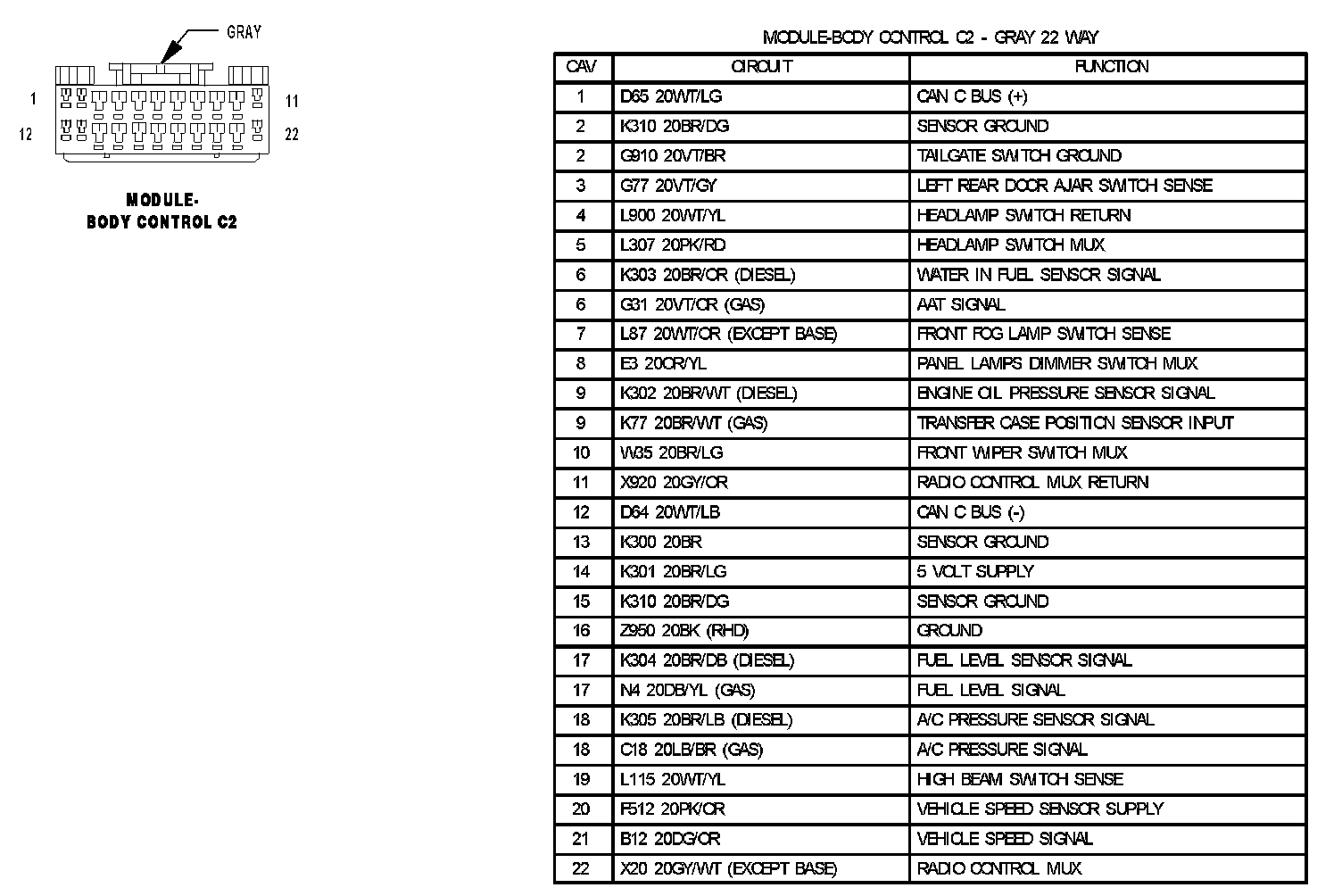

Module - Body Control C2:
