Air Bag Control Module

Module - Occupant Restraint Controller C1 (ORC):

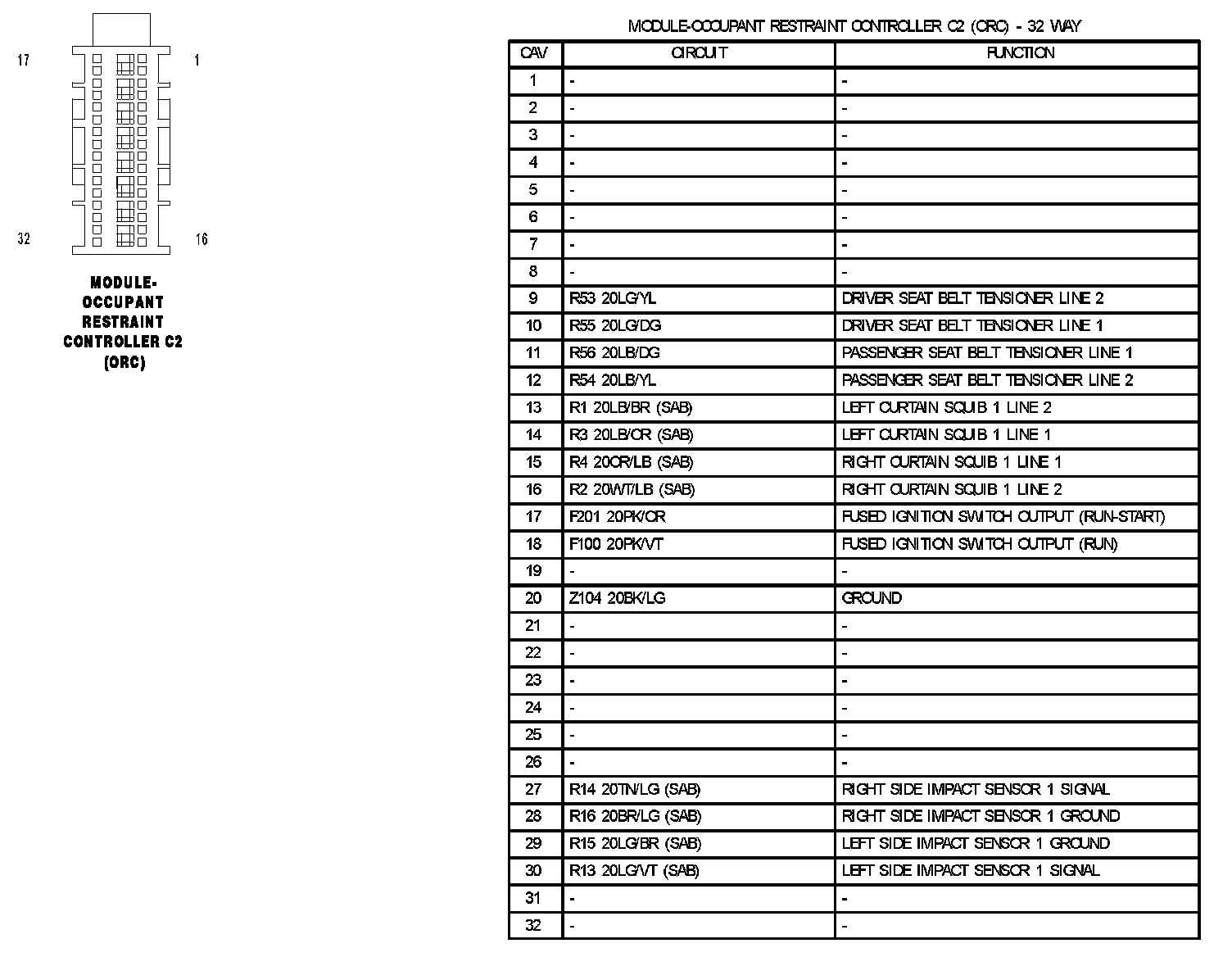

Module - Occupant Restraint Controller C2 (ORC):
