Home >> Jeep Truck >> 2006 >> Grand Cherokee 2WD V8-5.7L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations

Coolant Temperature Sensor/Switch (For Computer): Locations

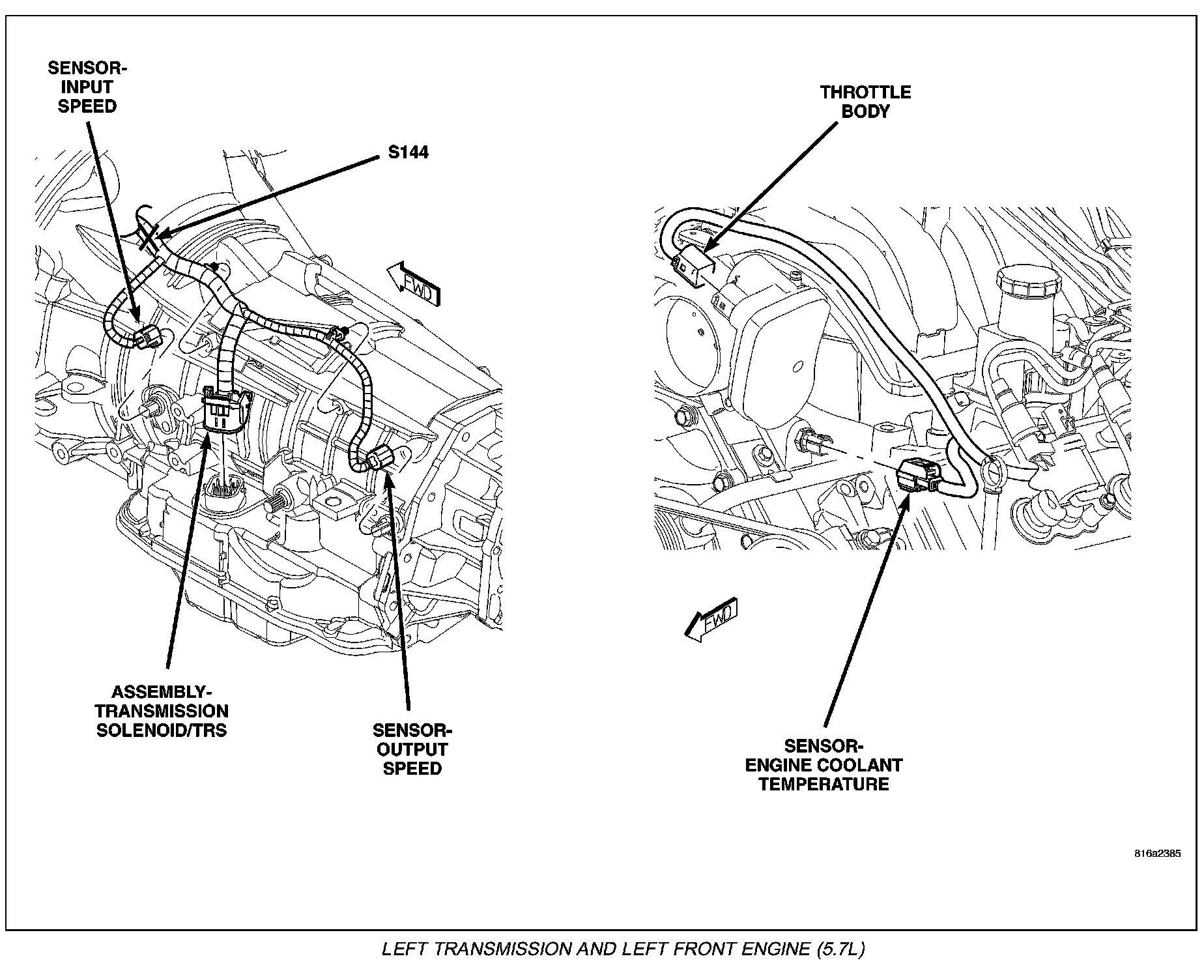

Left Transmission And Left Front Engine (5.7L):
