Power Mirror Control Module

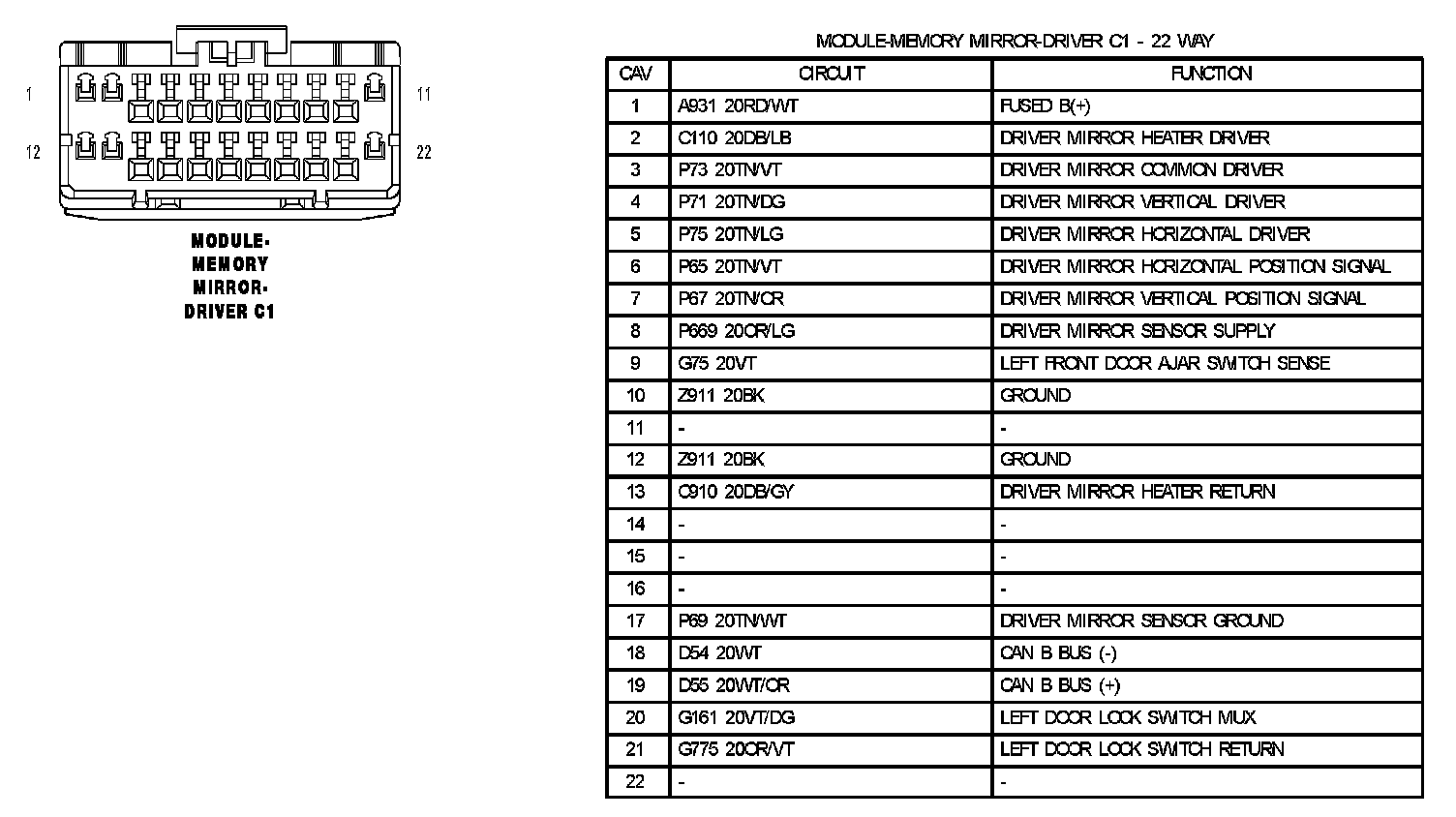

Module Memory Mirror Driver C1:



Module Memory Mirror Driver C2:

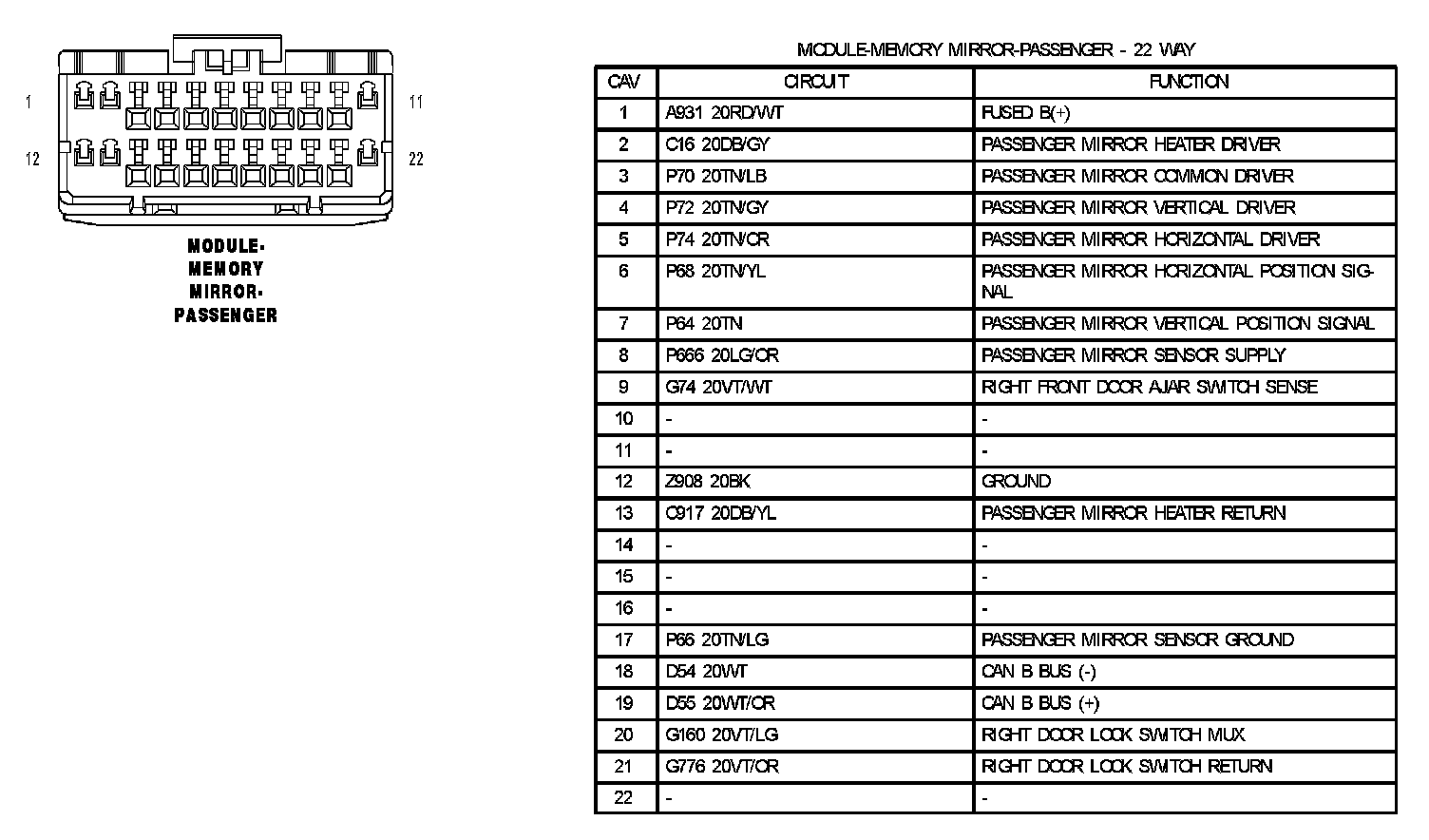

Module Memory Mirror Passenger:
