Home >> Jeep Truck >> 2006 >> Commander 2WD V6-3.7L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Locations

Oil Pressure Sensor: Locations

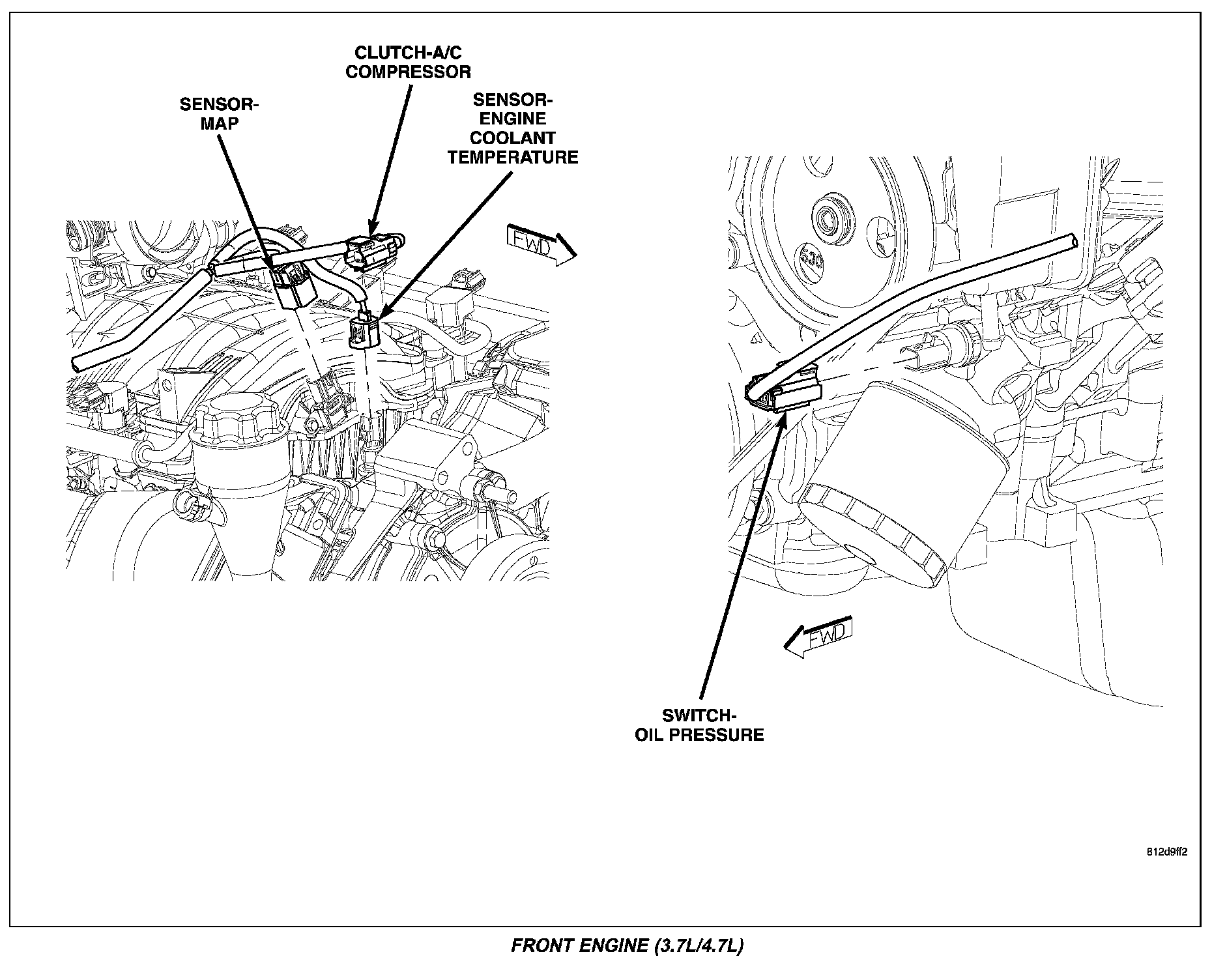

Front Engine (3.7L/4.7L):
