Engine Torque Specifications

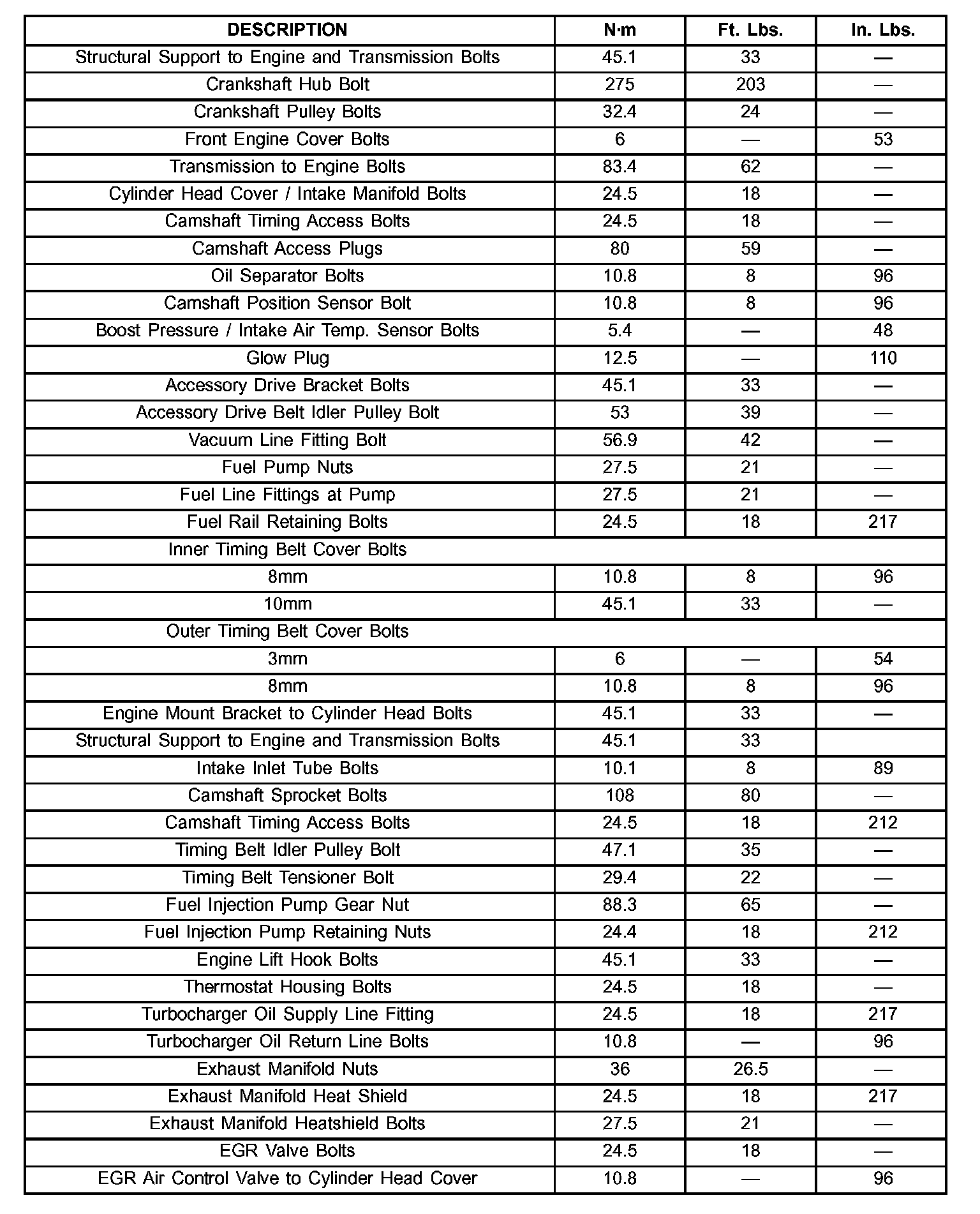

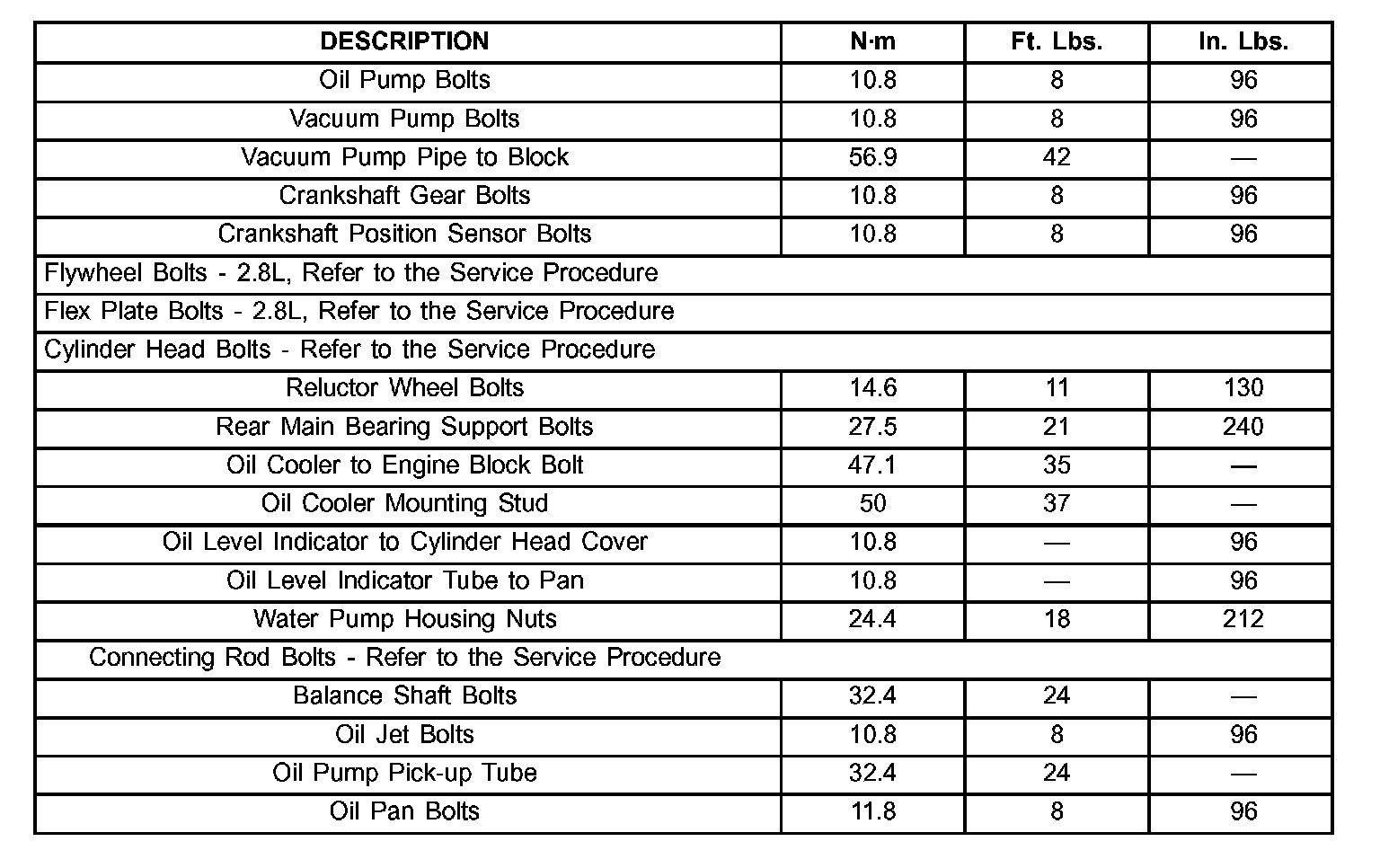

Torque specifications

Flex plate hub fastener 50 Nm (37 ft. lbs.)
in a clockwise cross sequence.
