Home >> Jeep Truck >> 2005 >> Liberty 4WD L4-2.4L DOHC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Module-Powertrain Control

Module-Powertrain Control

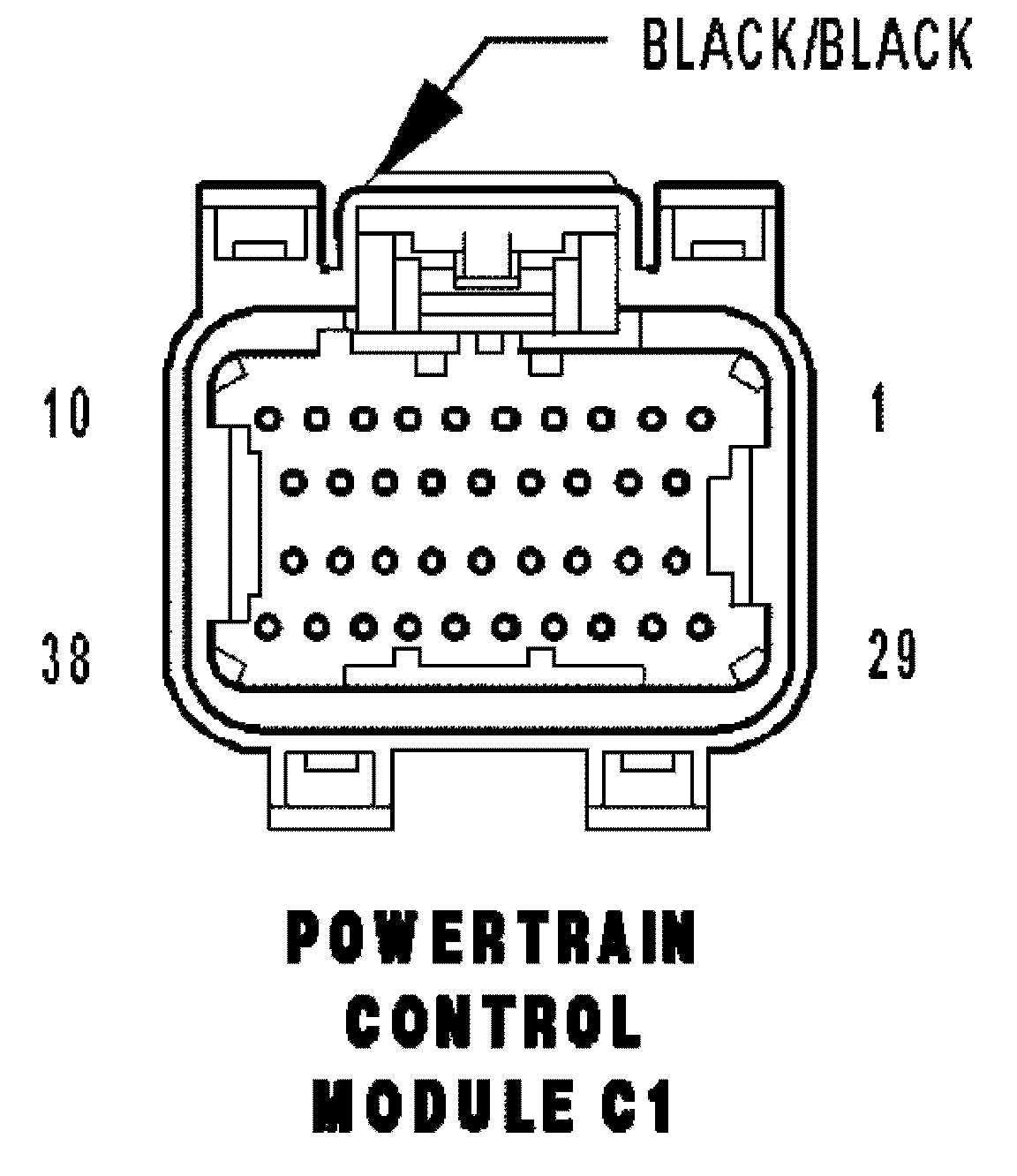

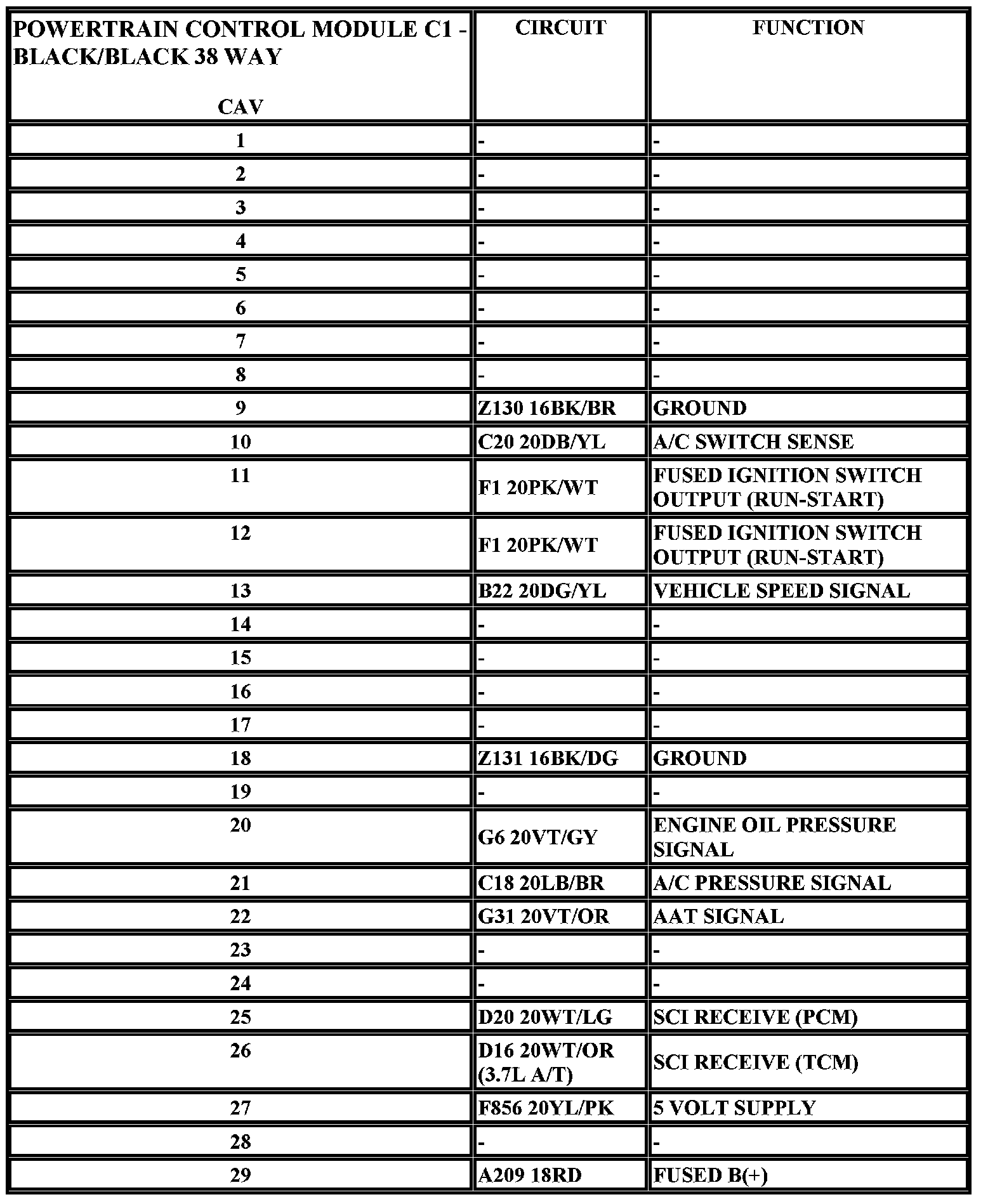

Powertrain Control Module C1

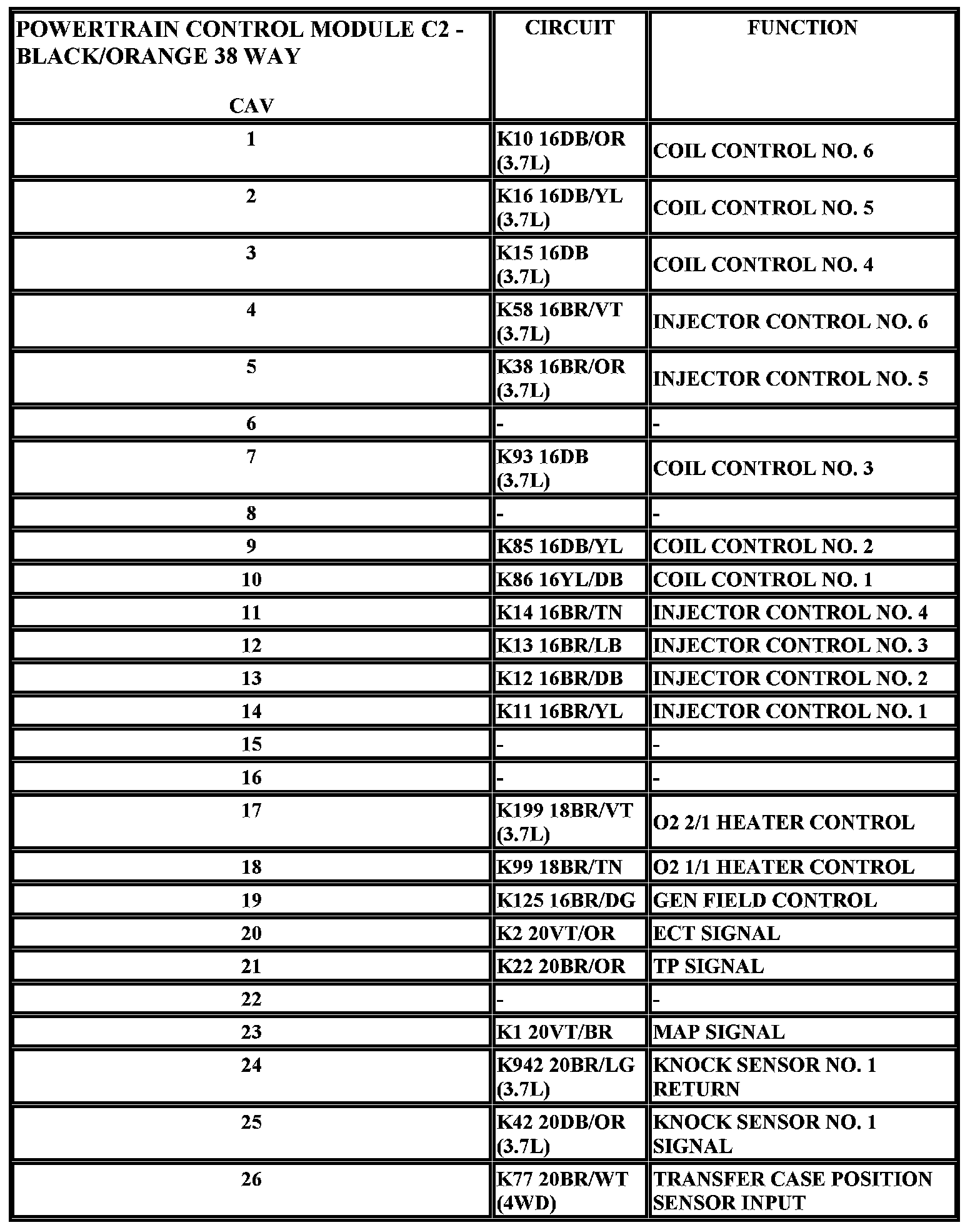

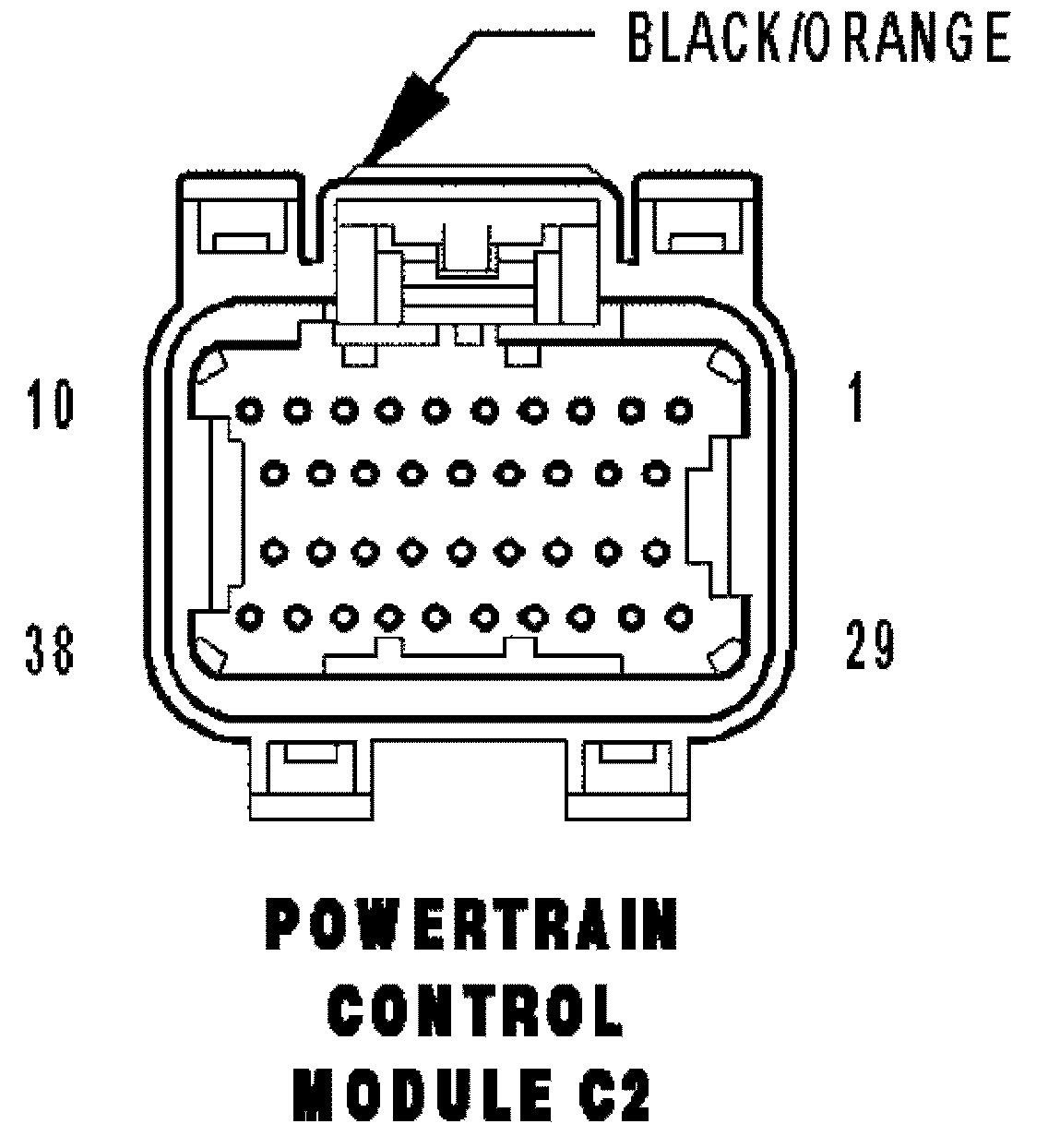

Powertrain Control Module C2

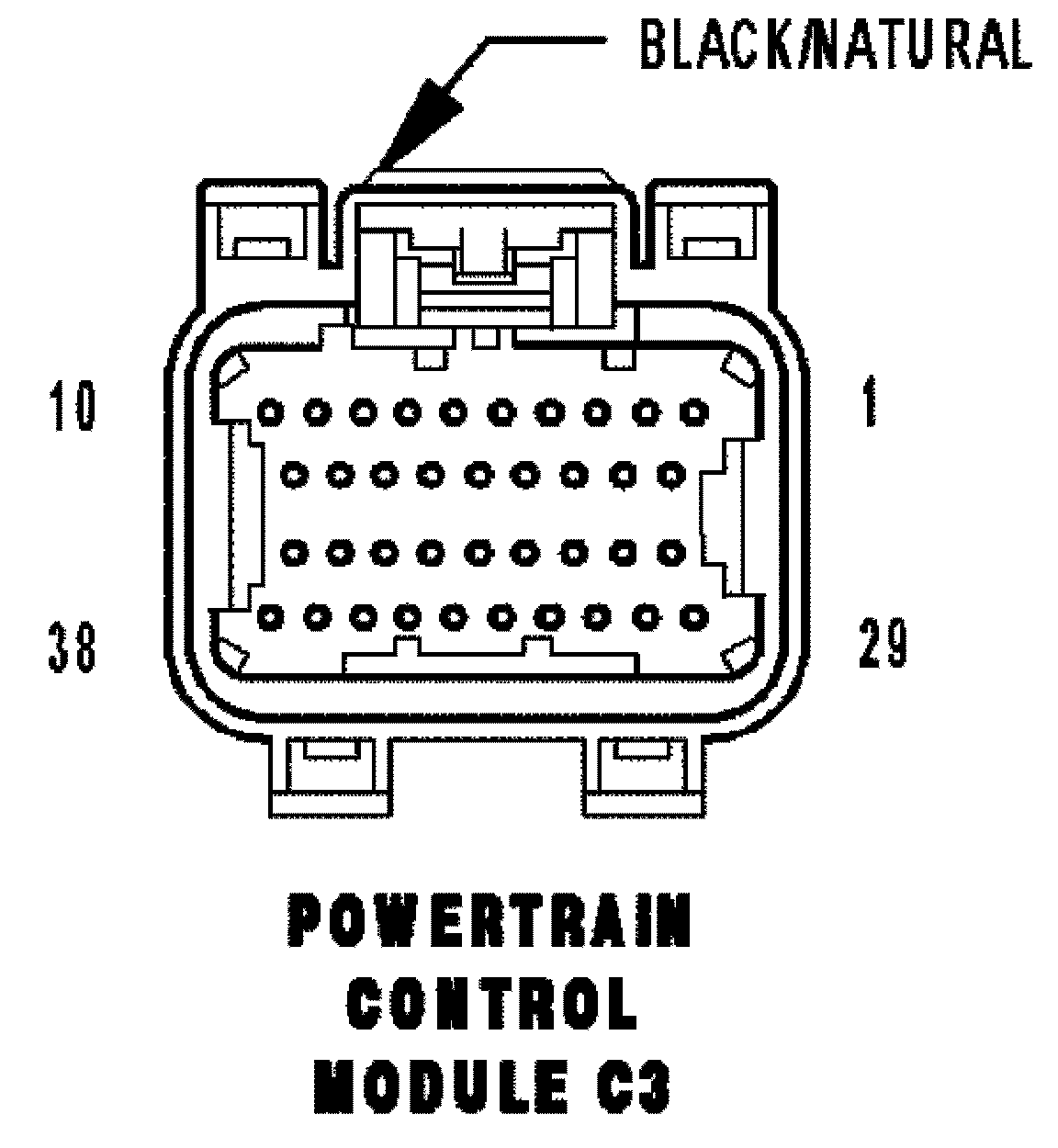

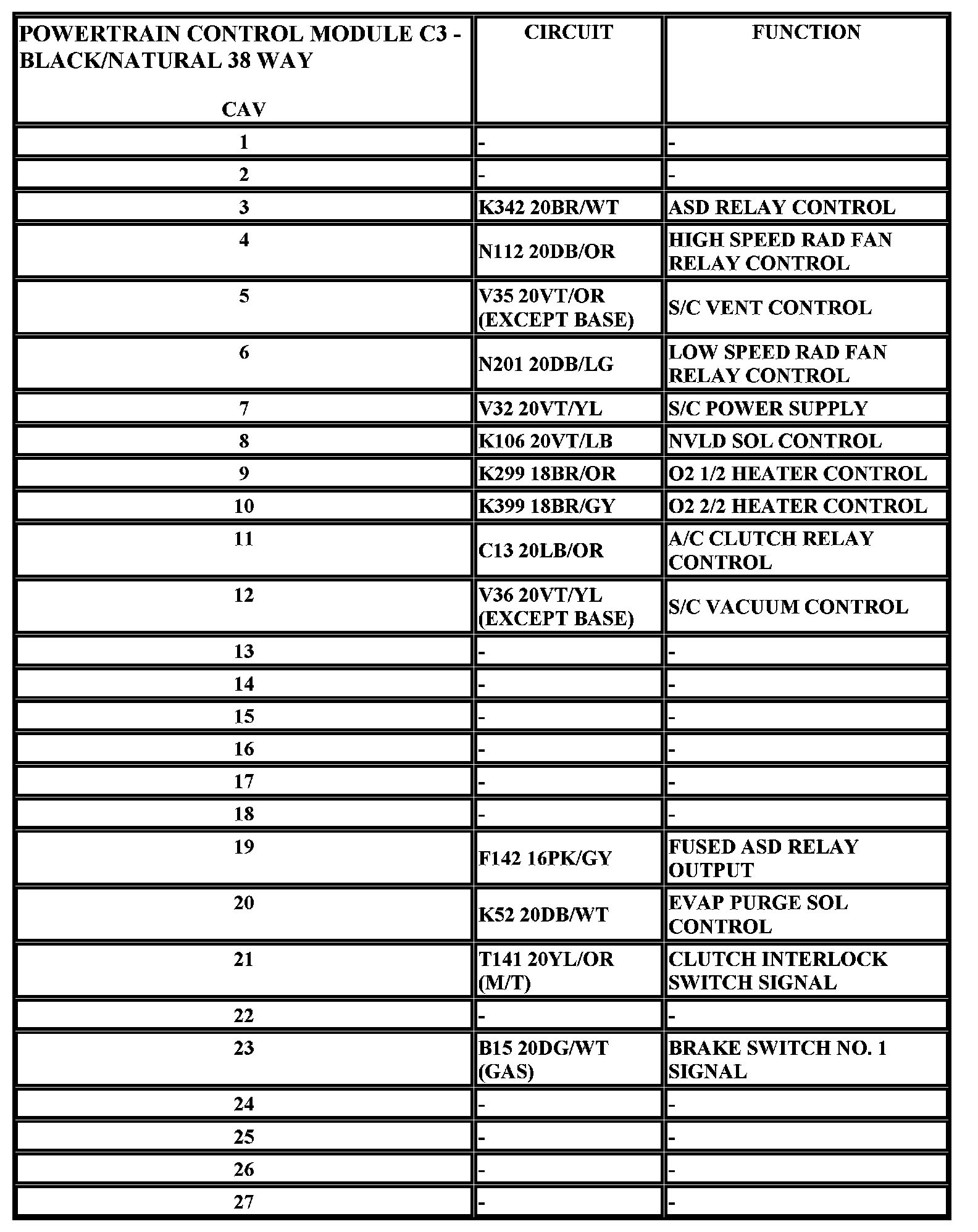

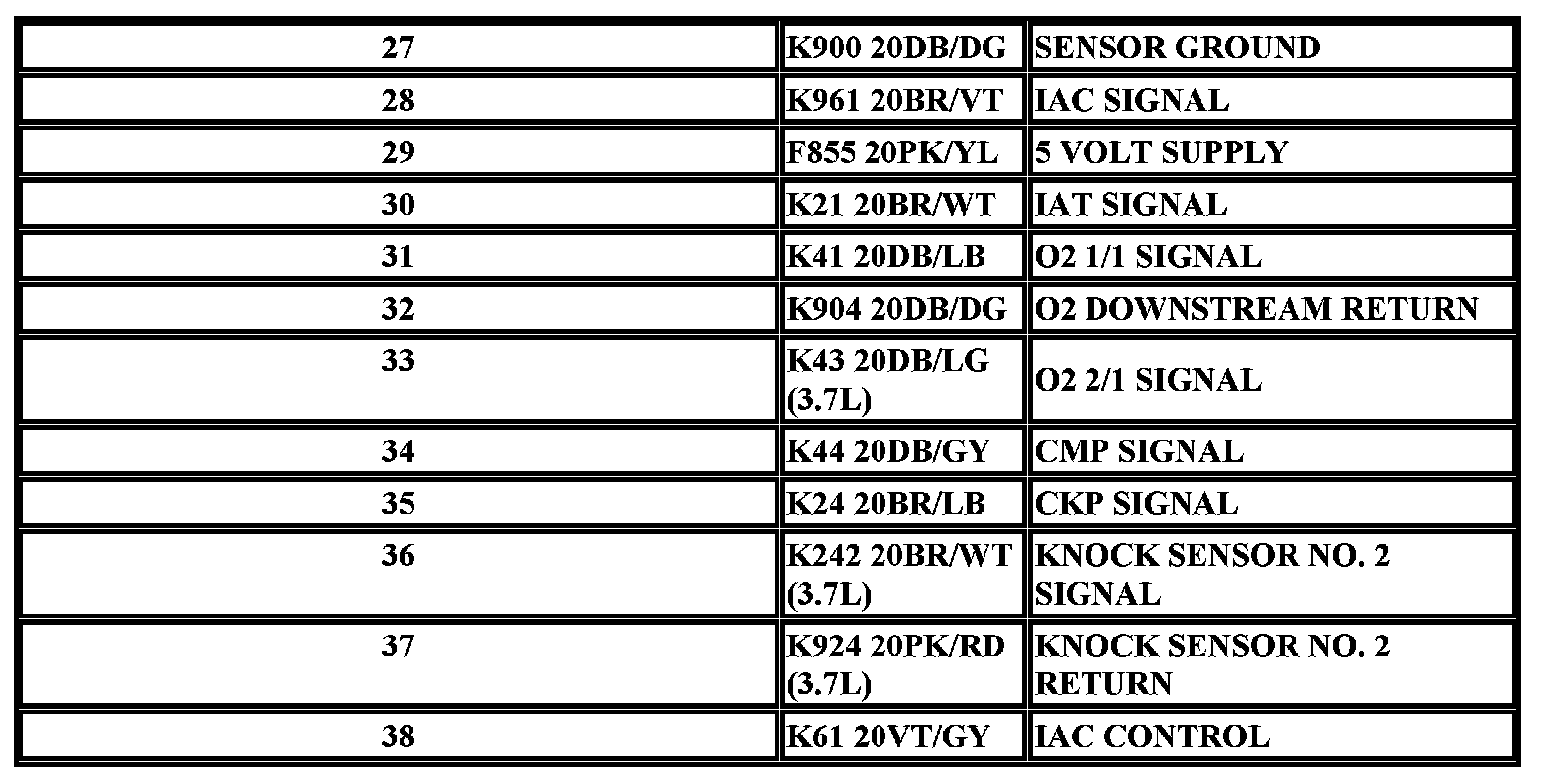

Powertrain Control Module C3
