Temperature Display Inoperative or Wrong
Temperature Display Inoperative or Wrong

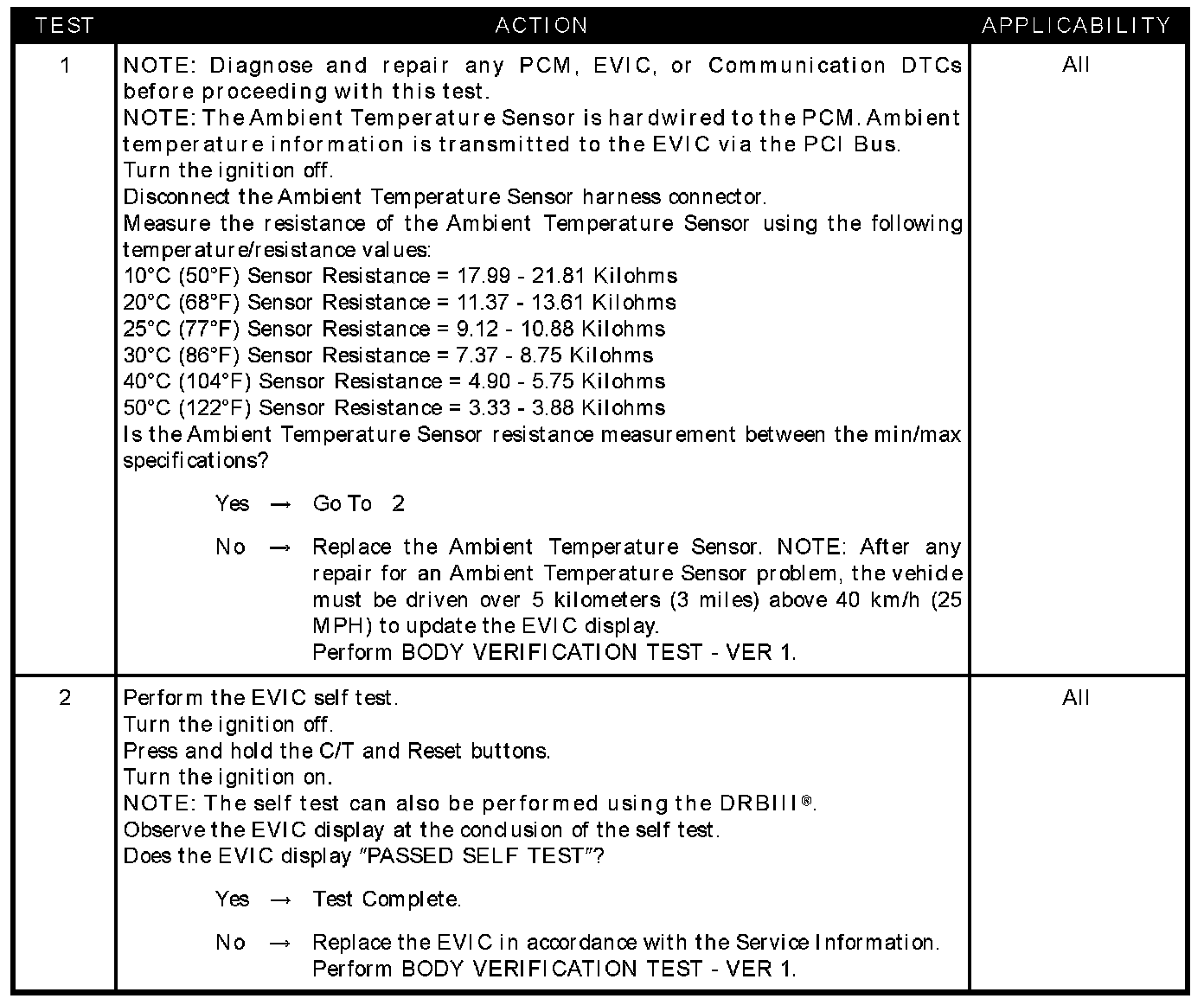

Test 1 - 2:
SYMPTOM
TEMP DISPLAY INOPERATIVE OR WRONG
POSSIBLE CAUSES
-
Ambient temperature sensor
-
EVIC inoperative
