Grand Cherokee 2WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
Door Module

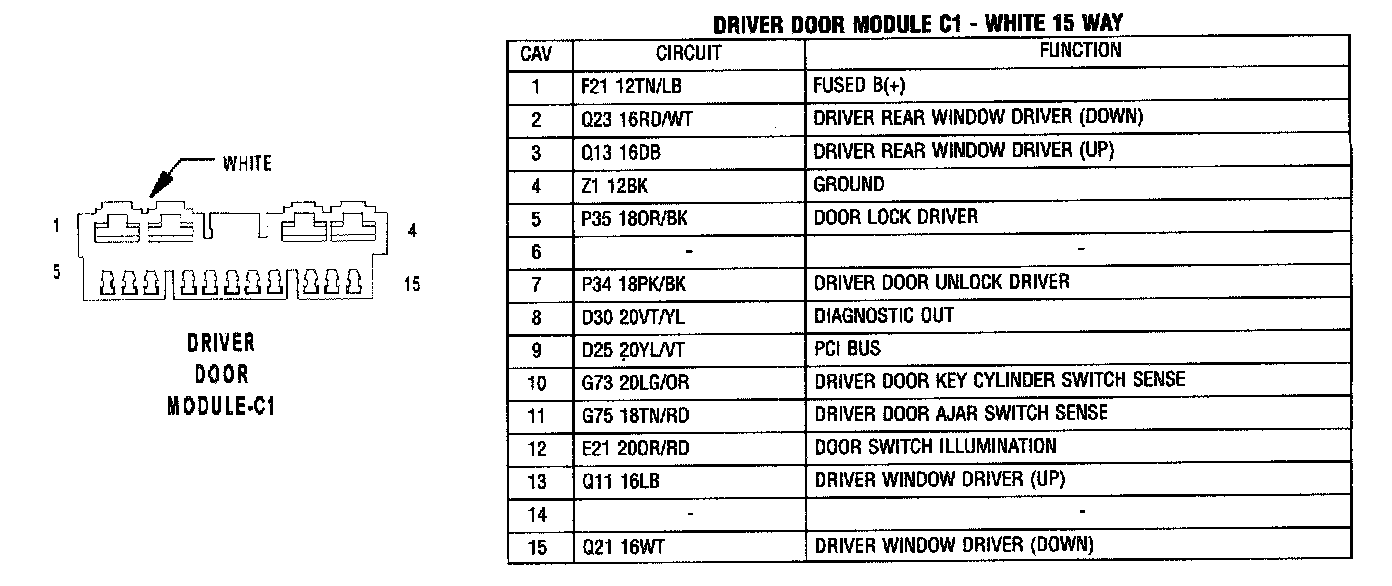

Driver Door Module - C1:

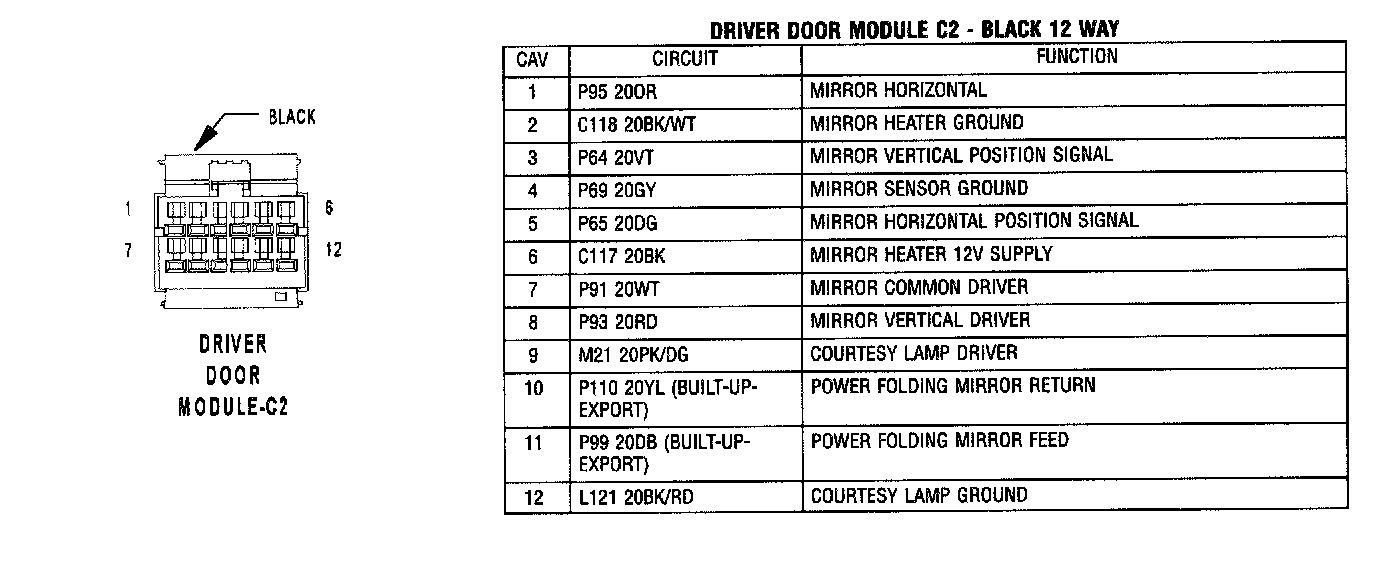

Driver Door Module - C2:
Driver Door Module - C3:
Passenger Door Module - C1:
Passenger Door Module - C2:
