Home >> Jeep Truck >> 1999 >> Cherokee 2WD L4-2.5L VIN P >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> System Specifications >> AW-4

AW-4

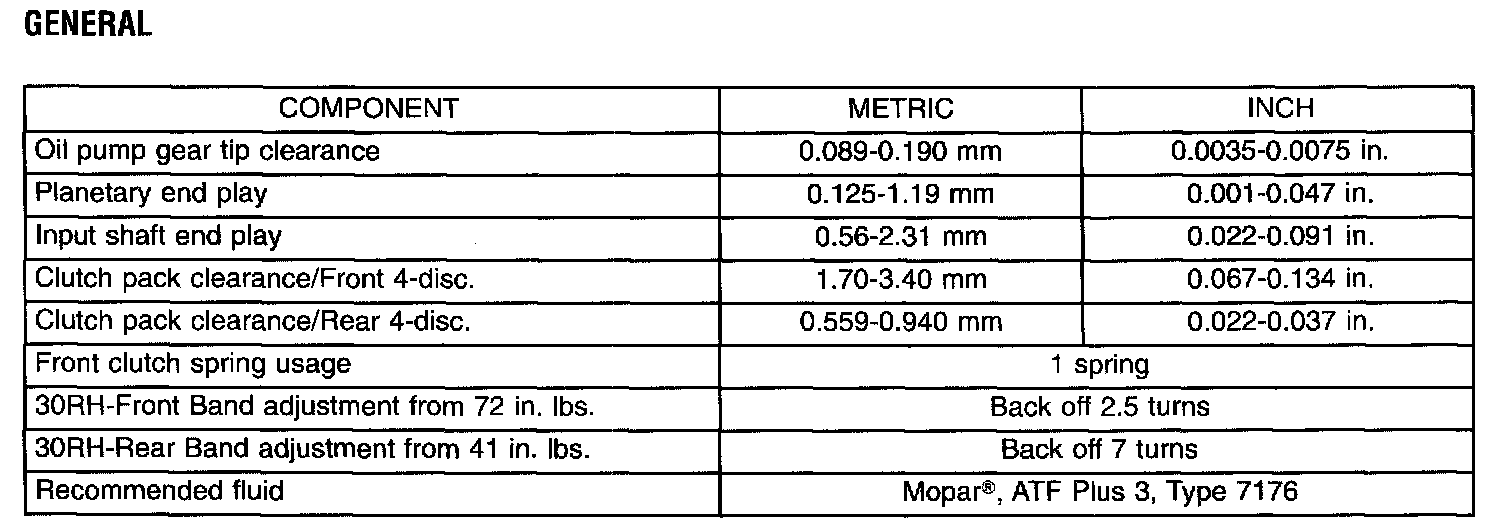

GENERAL

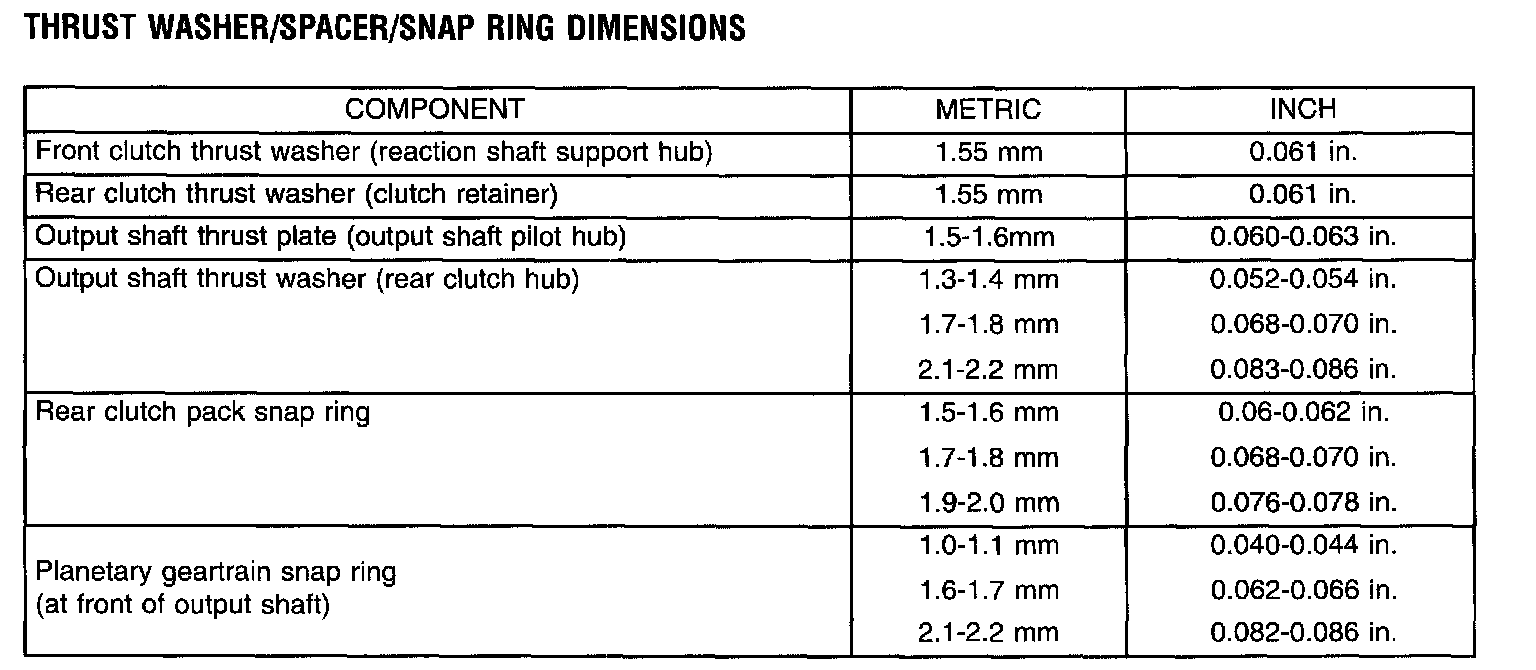

THRUST WASHER/SPACER/SNAP RING DIMENSIONS

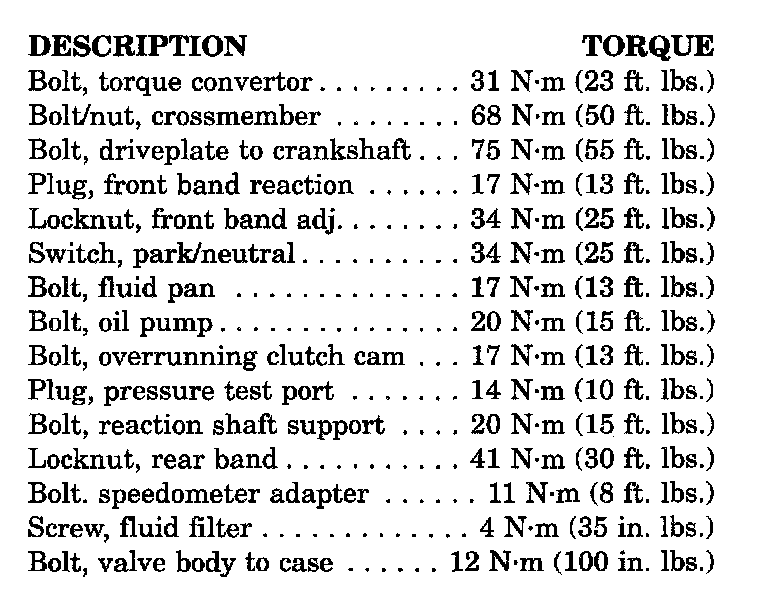

TORQUE
