Home
>>
Jeep Truck
>>
1998
>>
Grand Cherokee 2WD V8-5.2L VIN Y
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Fuse Block Module
Fuse Block Module

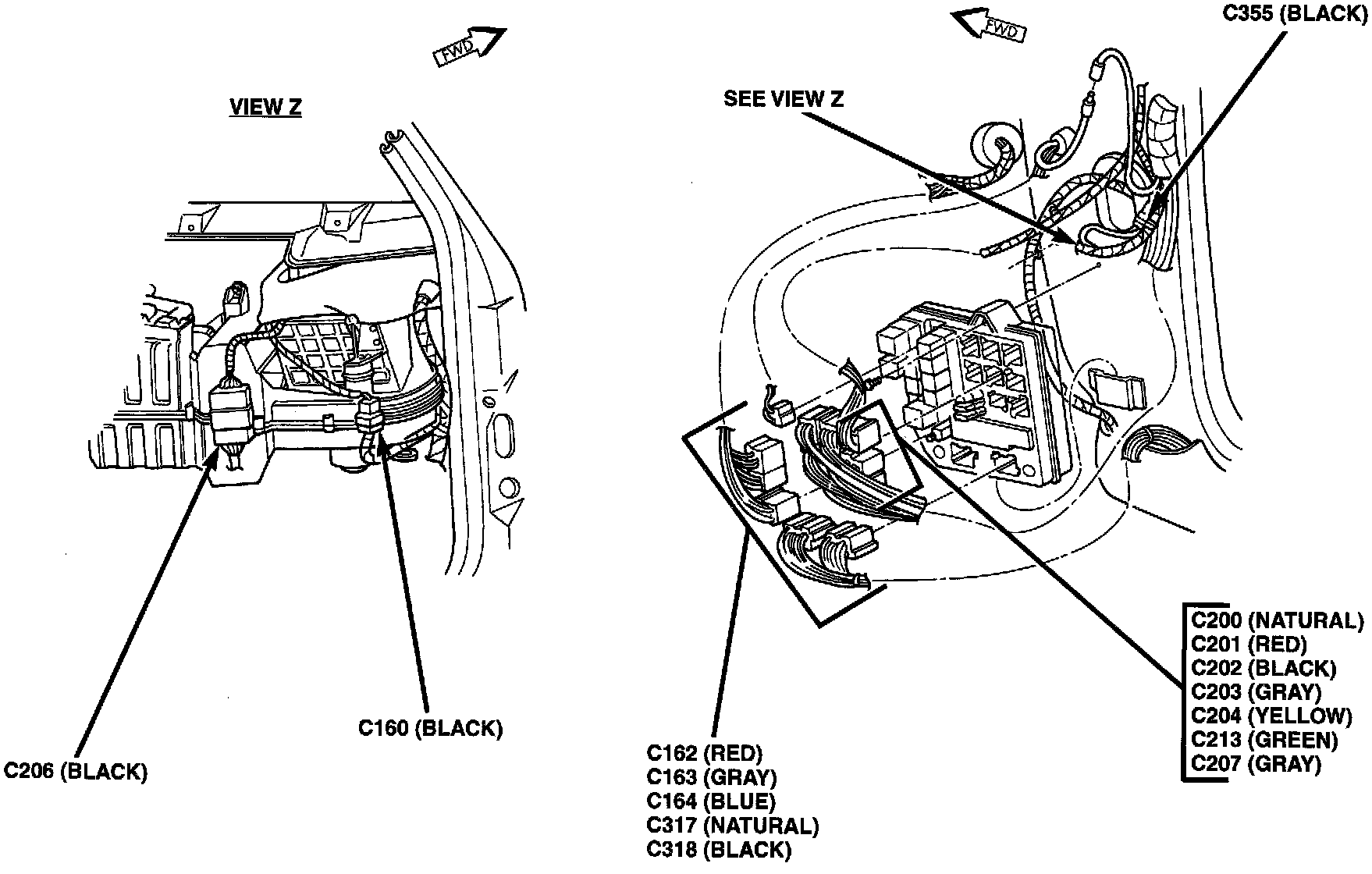

Junction Block And HVAC Unit Connectors:
