Power Window Control Module

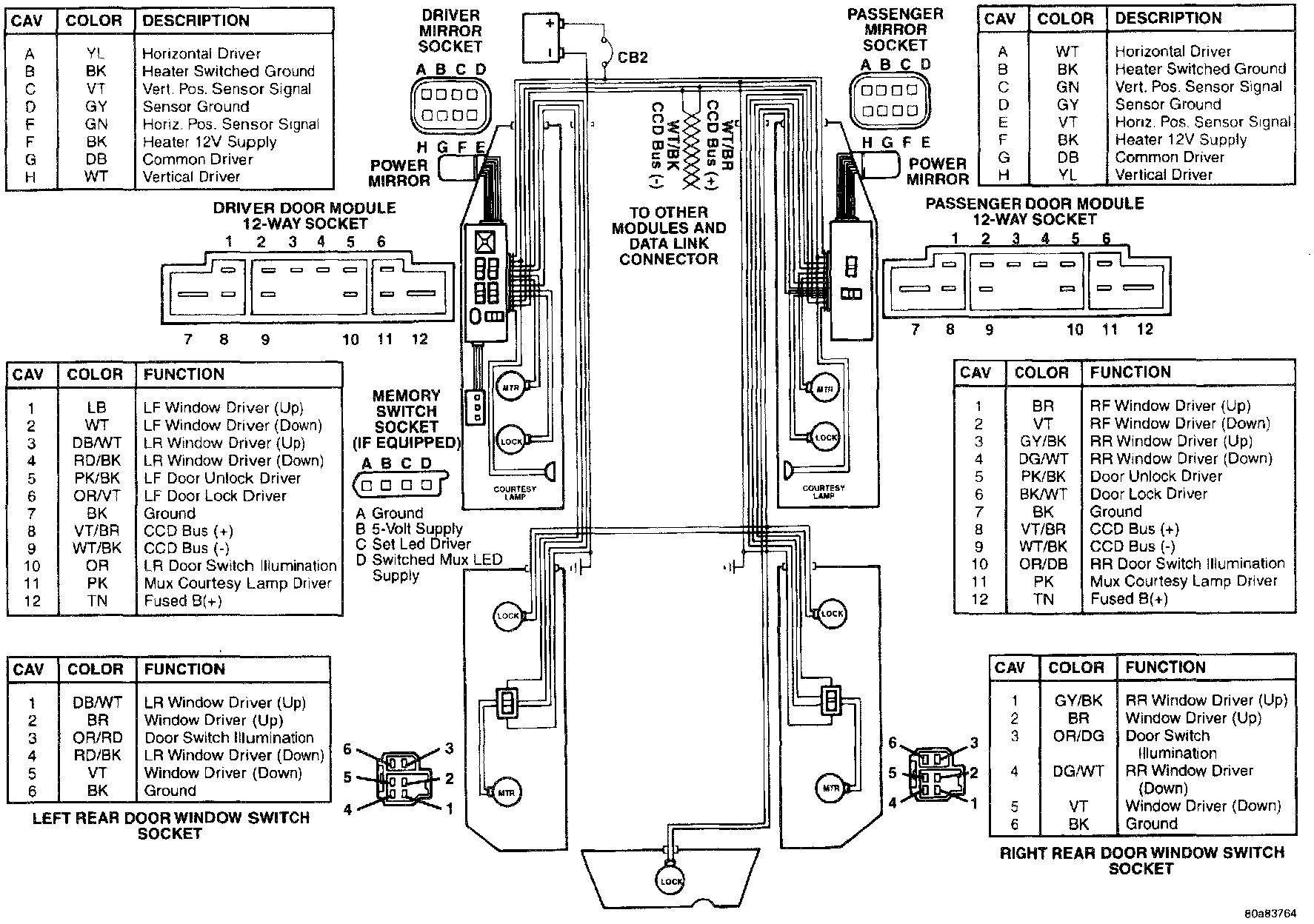

Door Modules:

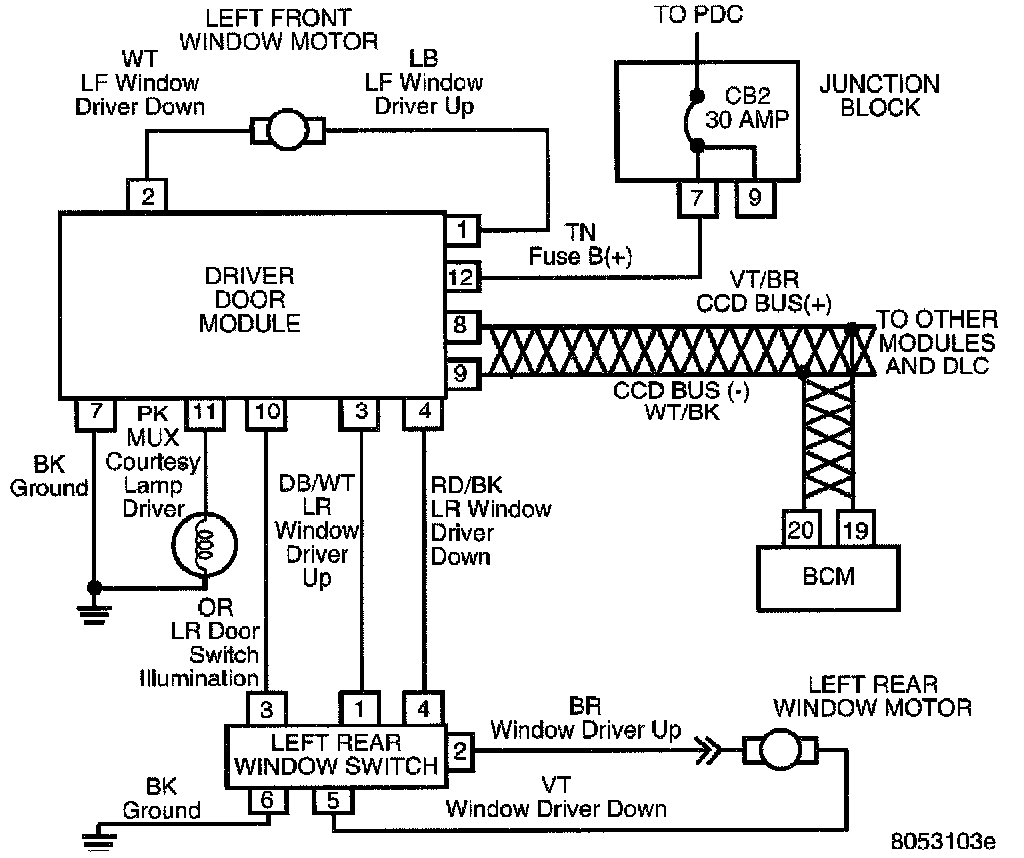

Driver Door Module (Power Windows):

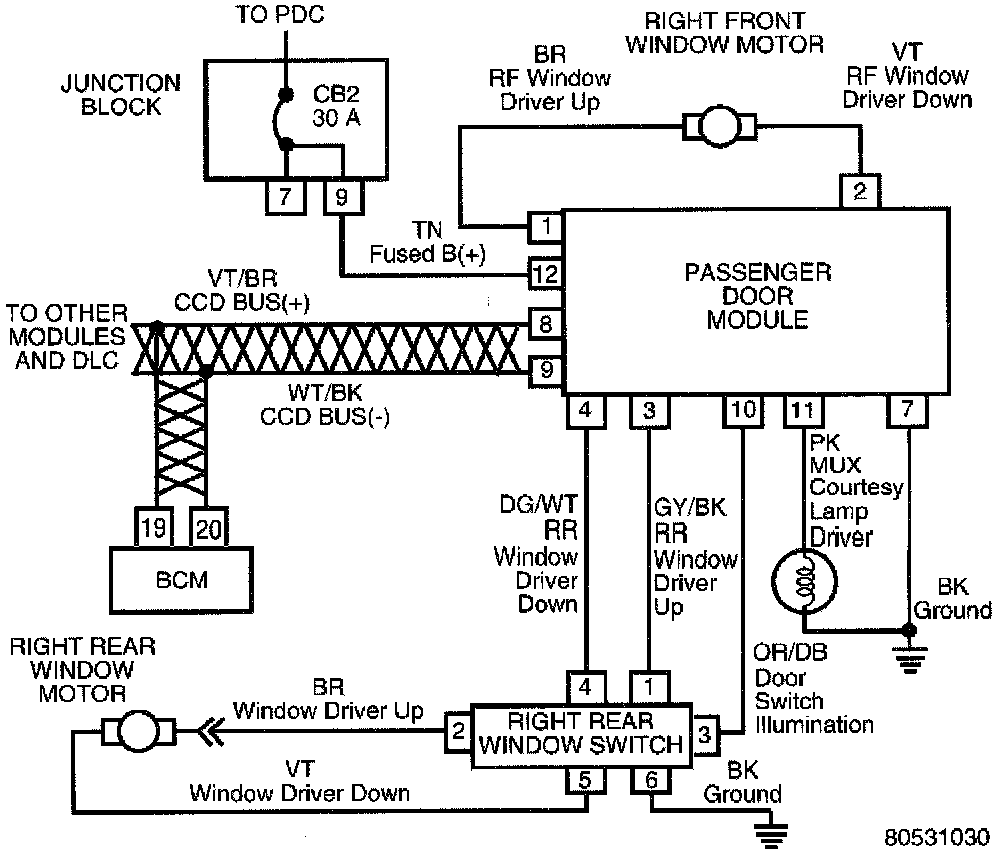

Passenger Door Module (Power Windows):
