Home >> Jeep Truck >> 1990 >> Cherokee 2WD L4-150 2.5L VIN E TBI >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Locations

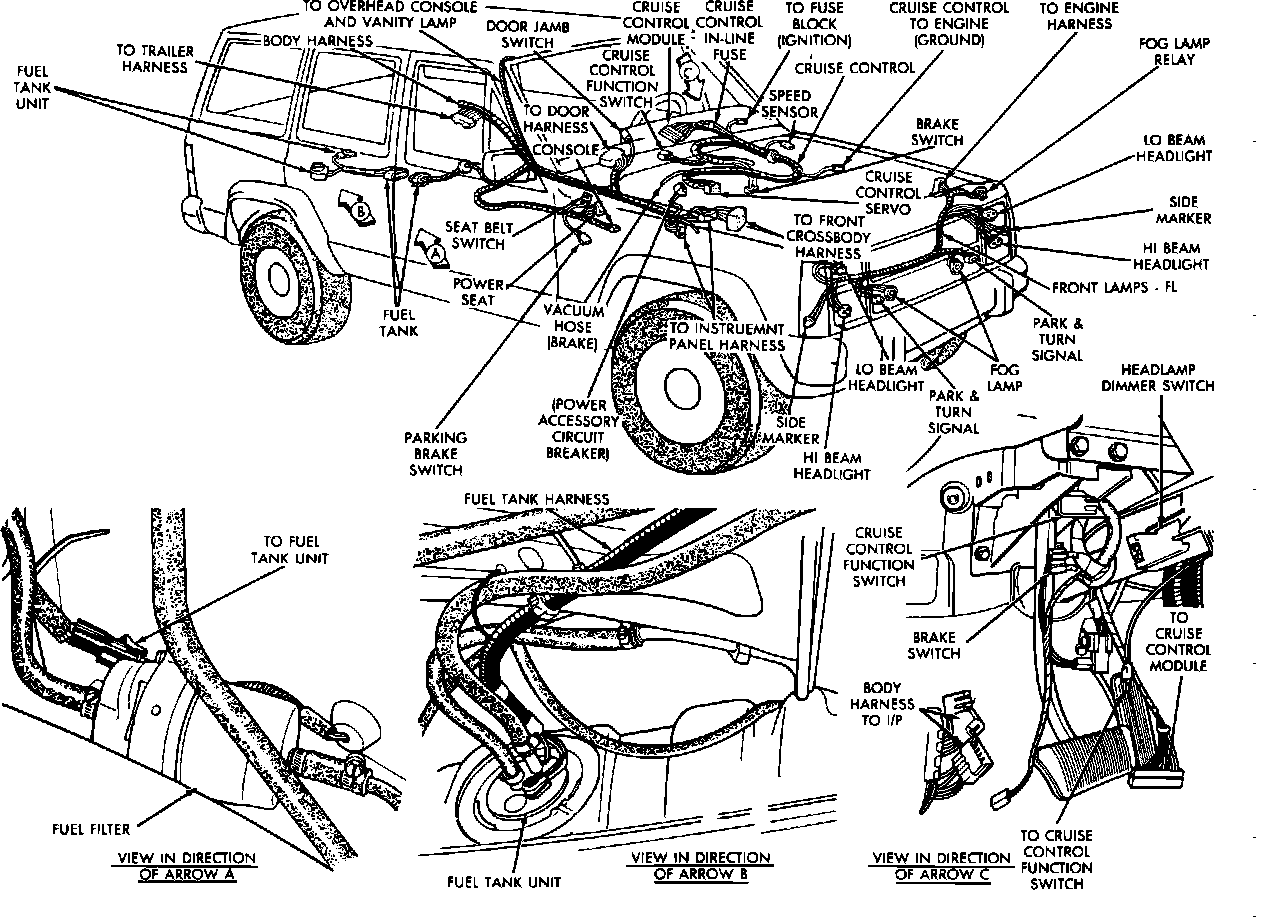

Cruise Control Module: Locations

Body Components.:




Behind LH Side Of I/P

Applicable to: Cherokee & Wagoneer
