Home >> Jeep Truck >> 1983 >> Cherokee L6-258 4.2L VIN C 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Timing >> Specifications

Ignition Timing: Specifications

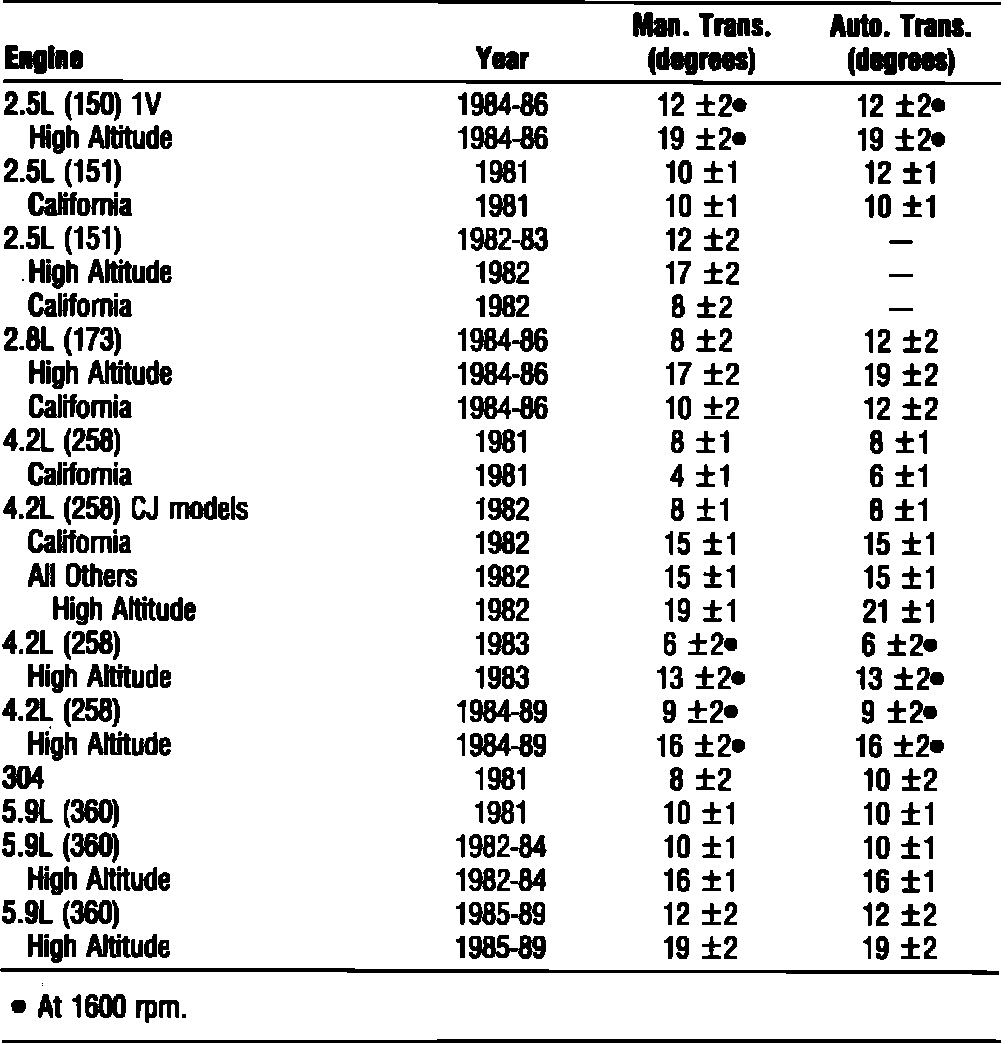

TIMING SPECIFICATION:
