Tire Pressure Module
>>

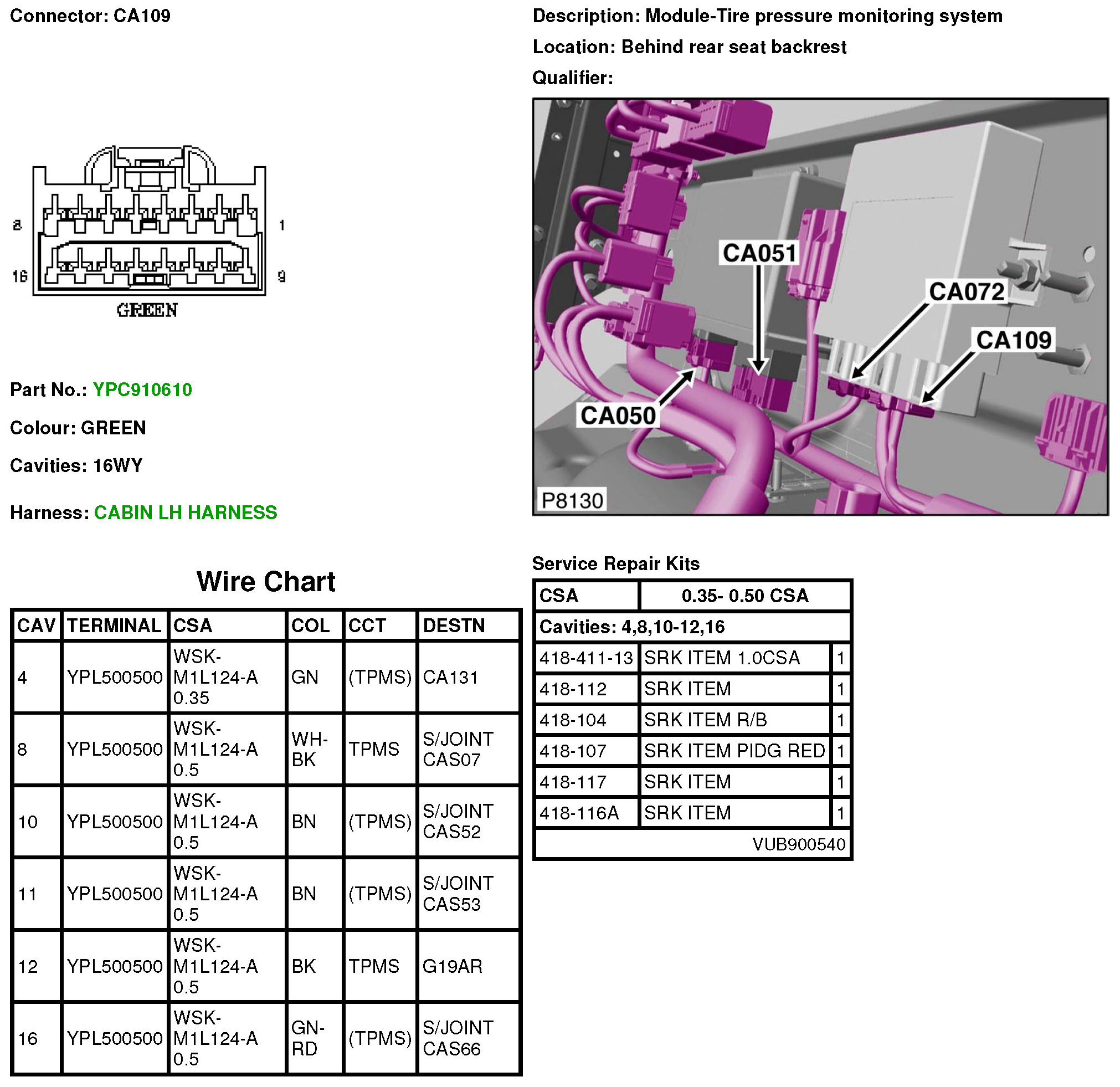

CA109 Module-Tire Pressure Monitoring System
CA109 Module-Tire Pressure Monitoring System
CA109
