Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module >> CA182 Module-Damping-Continuously Variable

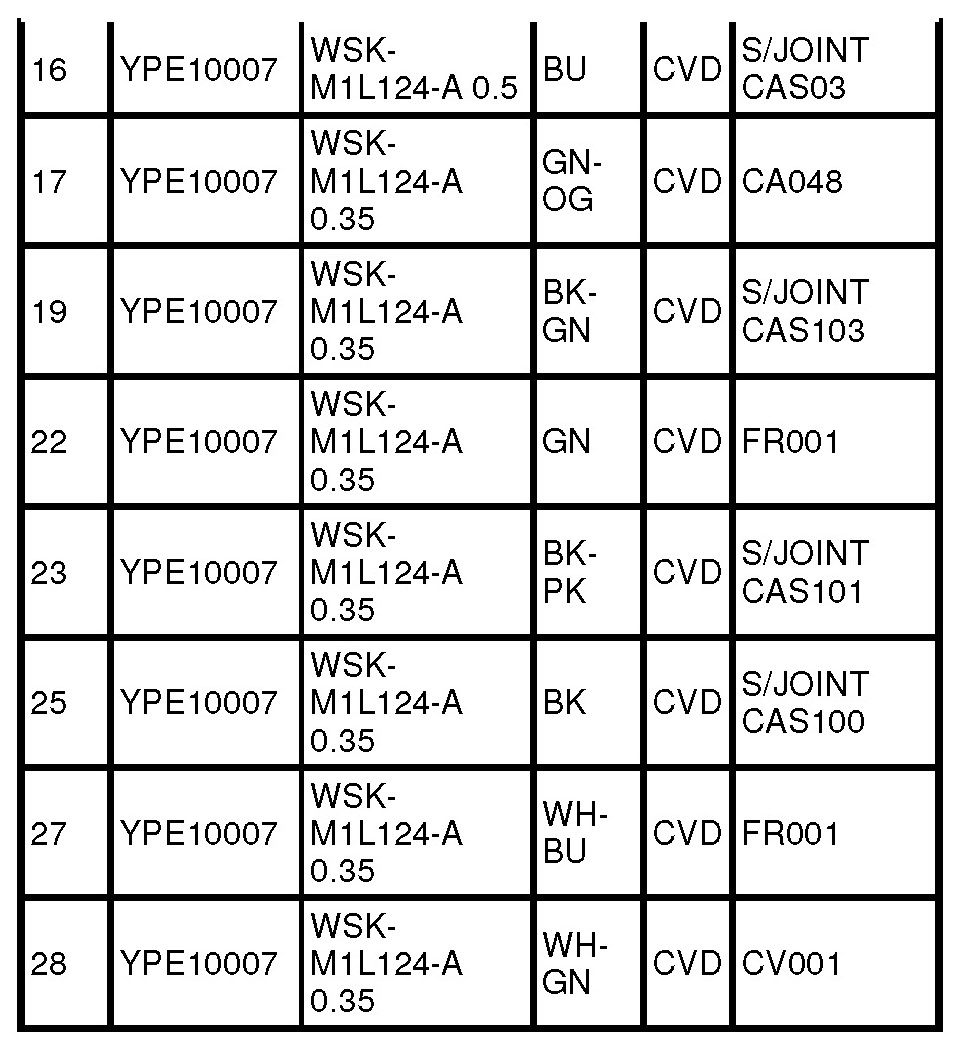

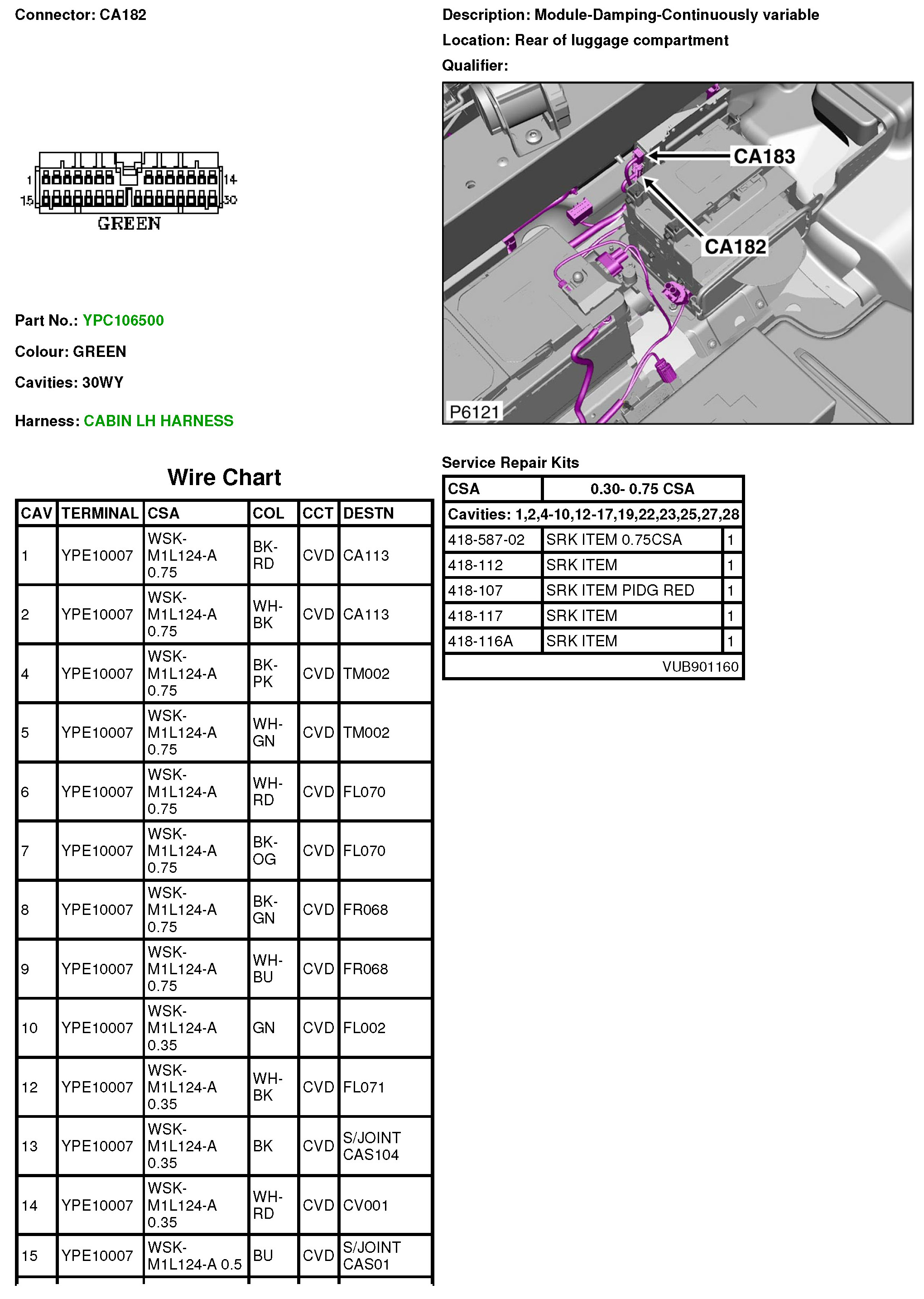

CA182 Module-Damping-Continuously Variable



CA182
