Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> PS017 Passenger Seat Module

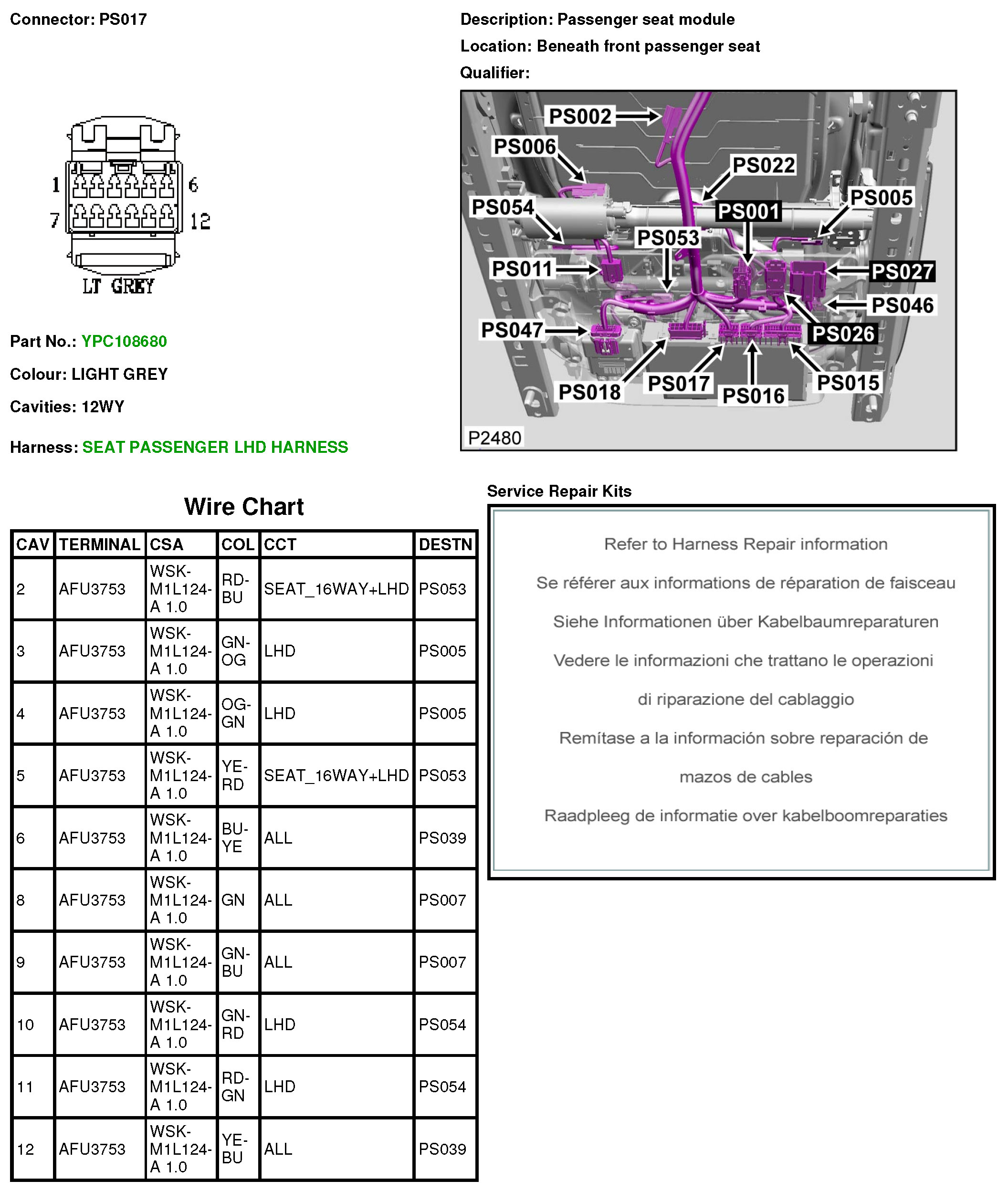

PS017 Passenger Seat Module



PS017
