Parking Assist Distance Sensor
>>

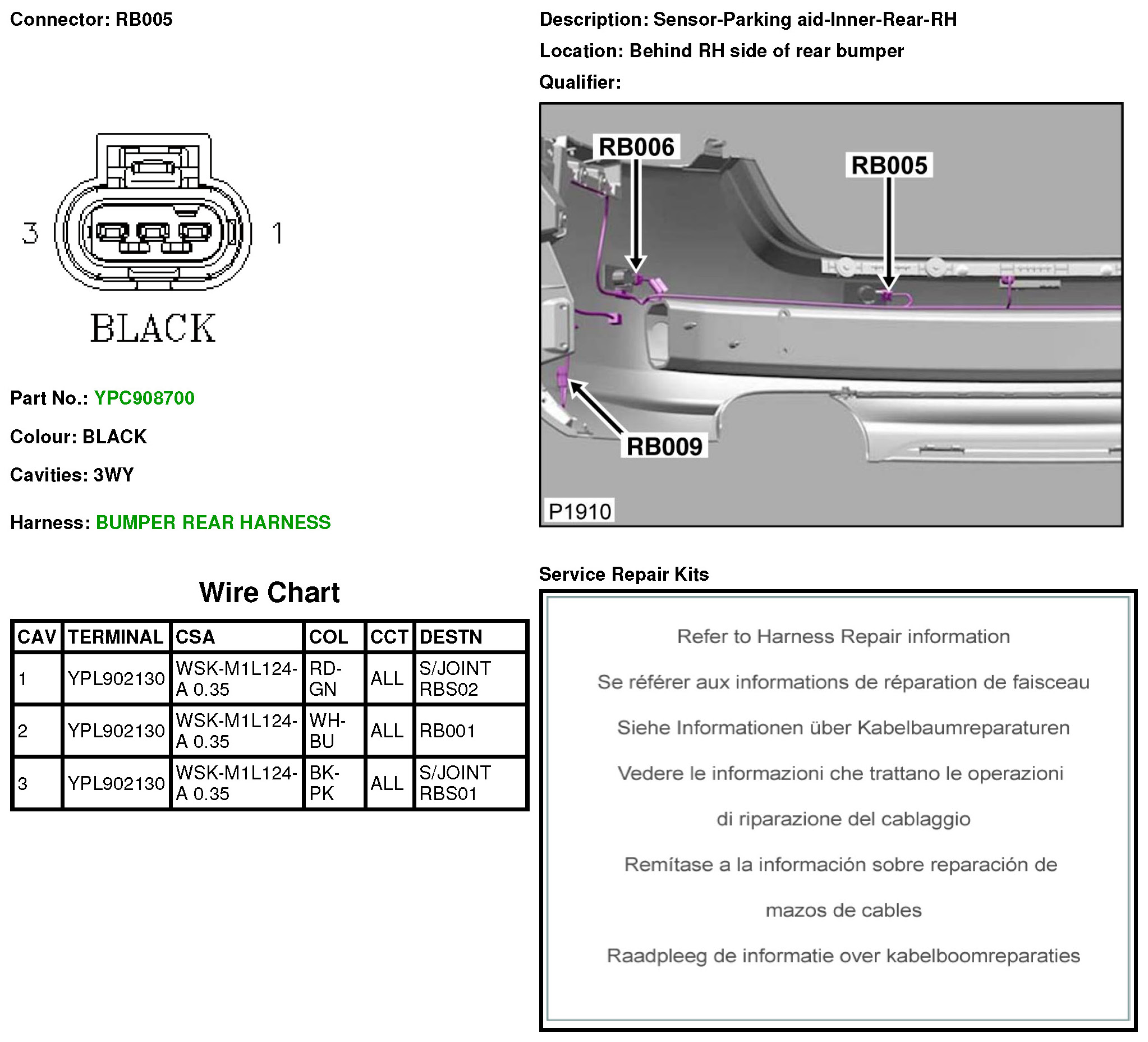

RB005 Sensor-Parking aid-Inner-Rear-RH
RB005 Sensor-Parking aid-Inner-Rear-RH
RB005
