XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
Entertainment System Control Module
>>

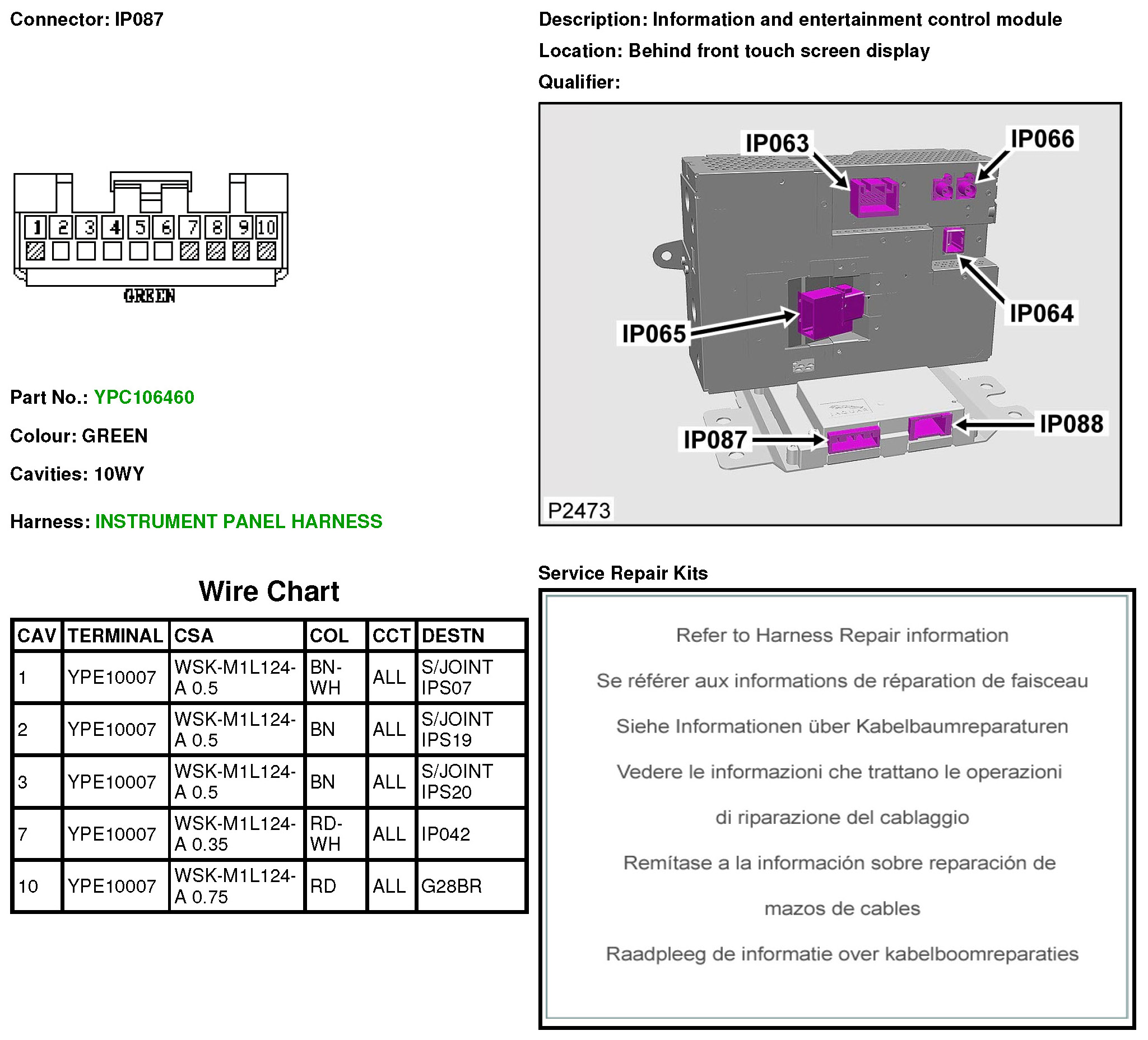

IP087 Information and Entertainment Control Module
IP087 Information and Entertainment Control Module
IP087
