Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T >> C1ET34 Module-Transmission-Control

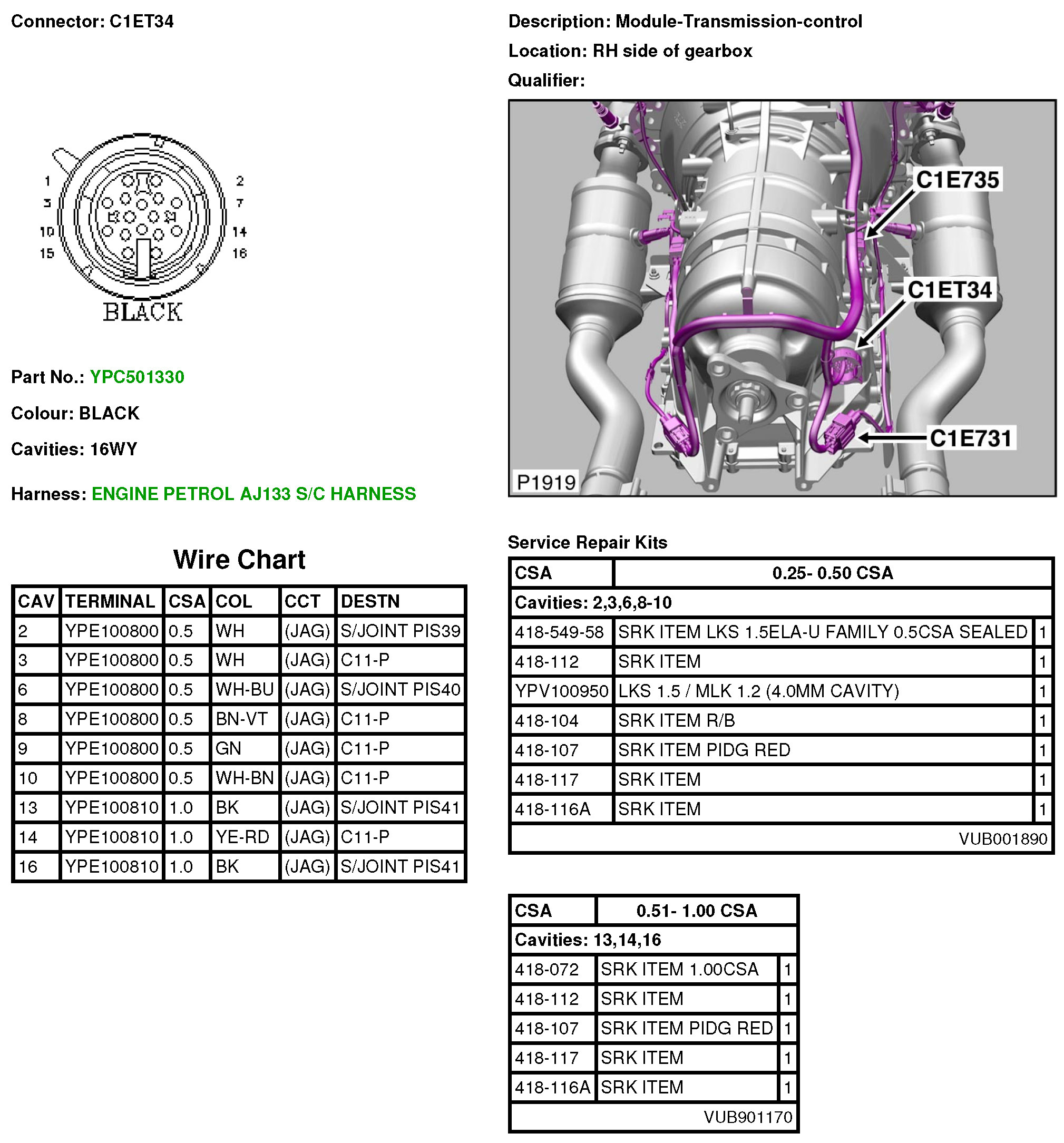

C1ET34 Module-Transmission-Control



C1ET34
