Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> TM021 Module-Telephone

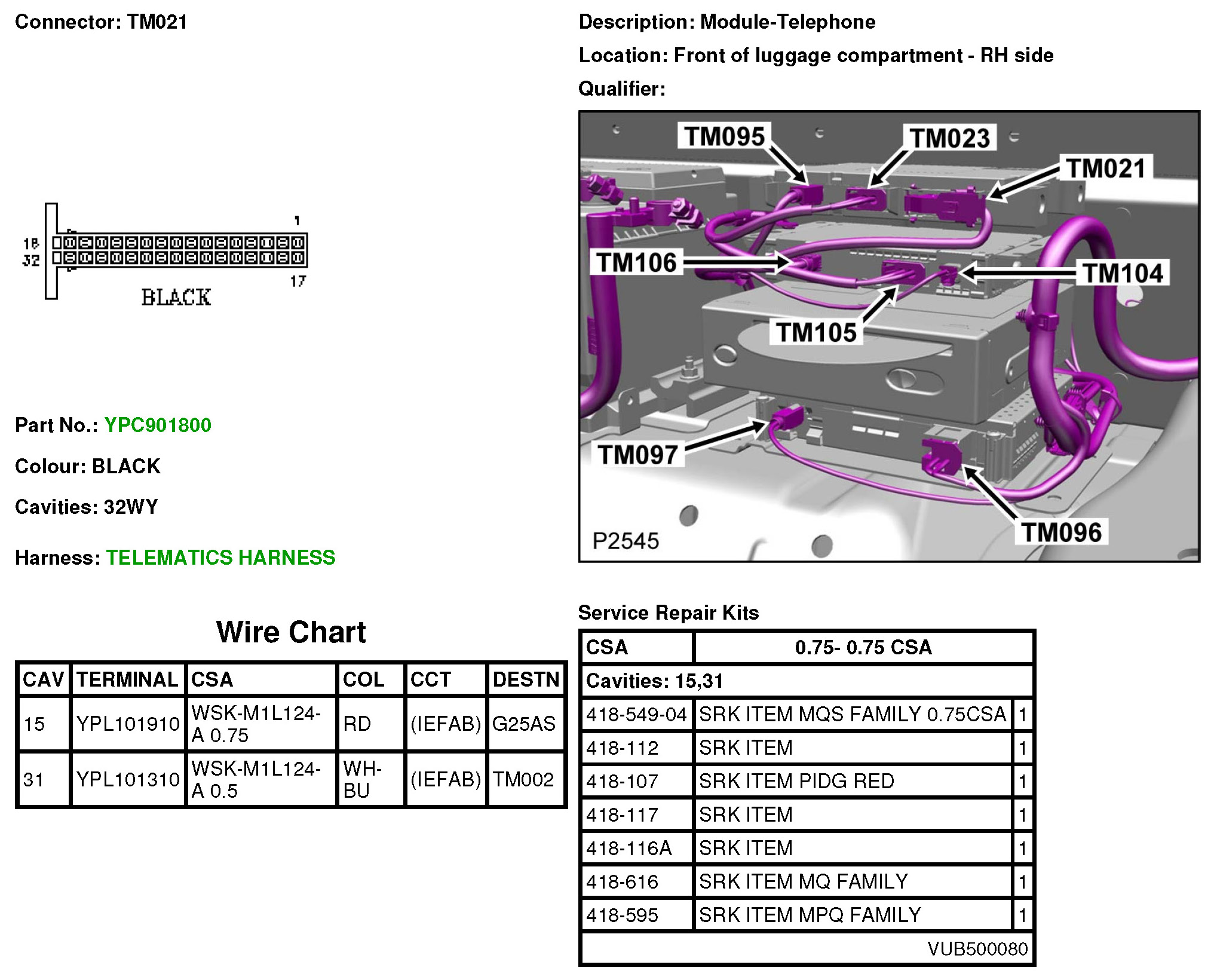

TM021 Module-Telephone



TM021
