Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> CA068 Restraints Control Module (RCM)

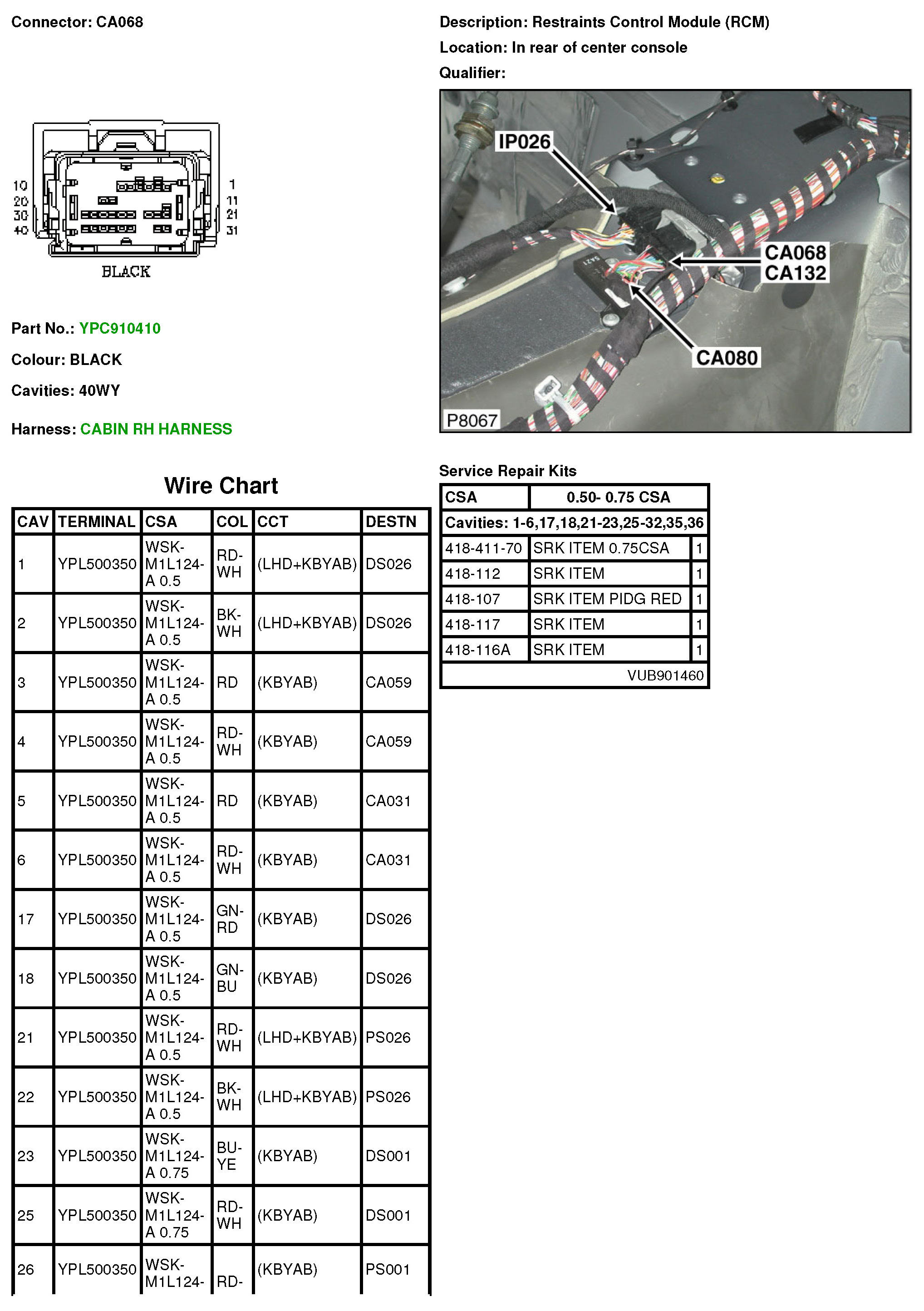

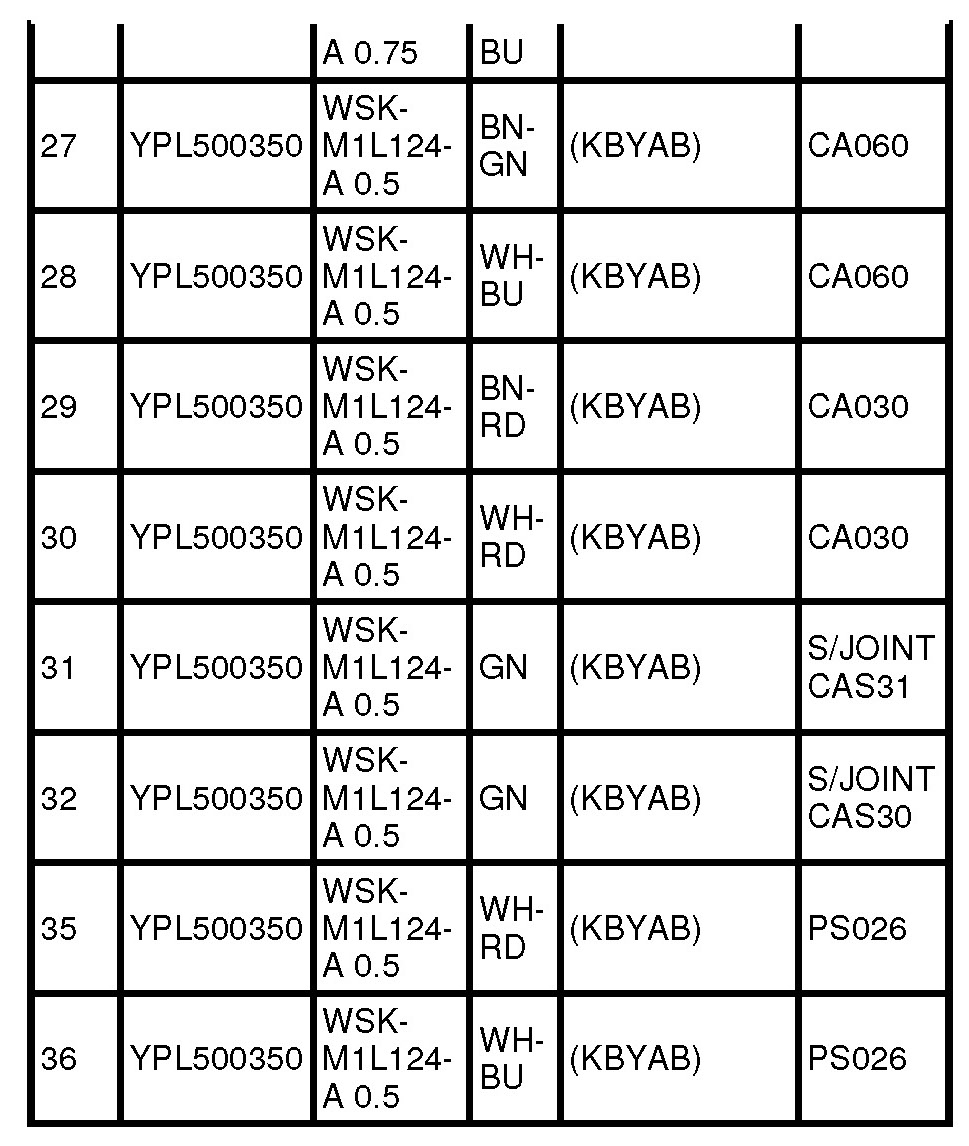

CA068 Restraints Control Module (RCM)



CA068
