Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Diagrams >> CA075 Keyless Vehicle Module

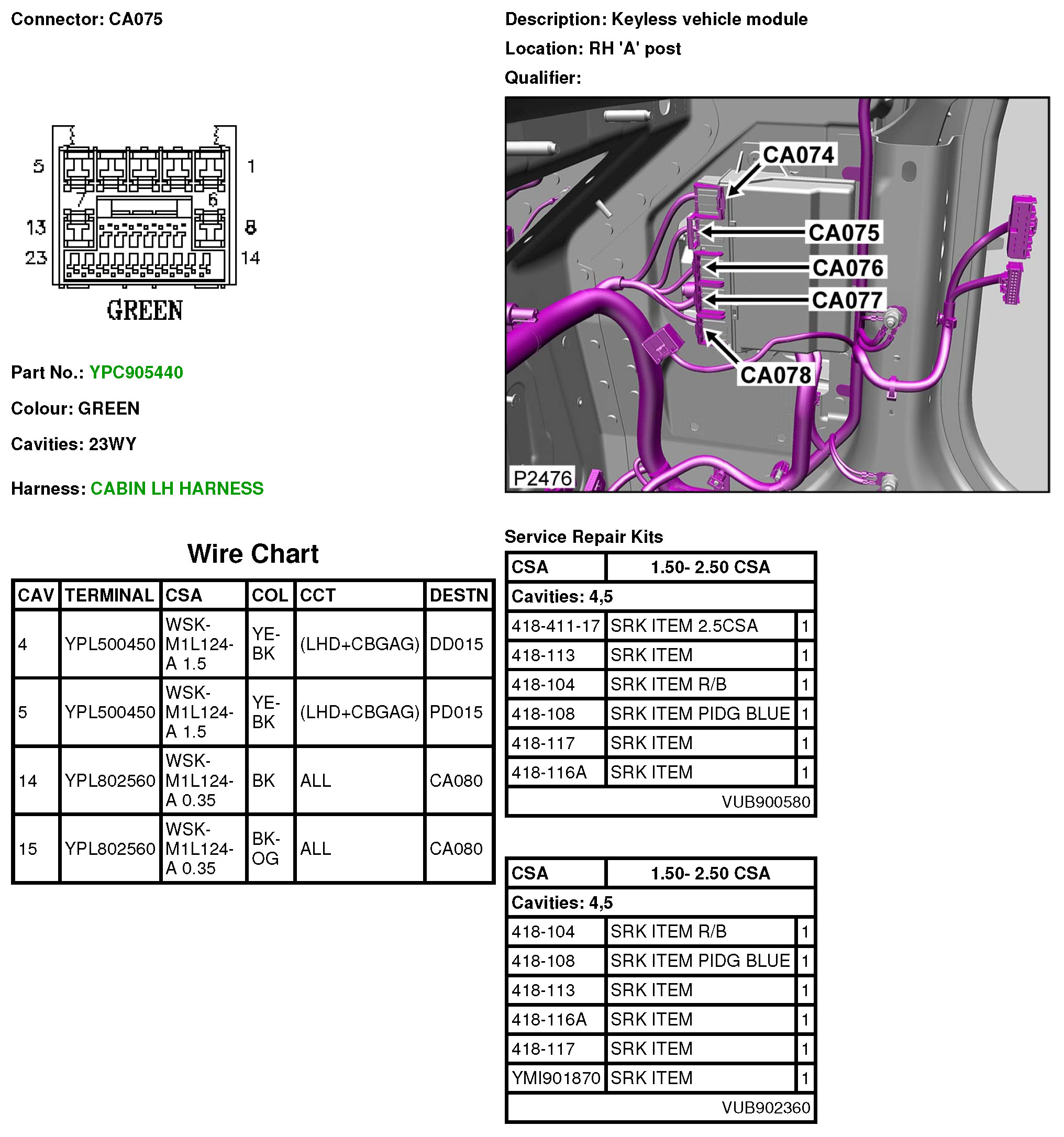

CA075 Keyless Vehicle Module



CA075
